BMRW250
Xeriwell or Others
| Features: | High Pressure Oil Seal | Product Name: | Hydraulic Wheel Motor |
|---|---|---|---|
| Brand Name: | Xeriwell | Model Number: | BMRW Wheel Motor |
| Application: | Wheel Driving | Advantage: | Match Than , M+S Motor |
| Highlight: | hydraulic track motor,spool valve motor | ||

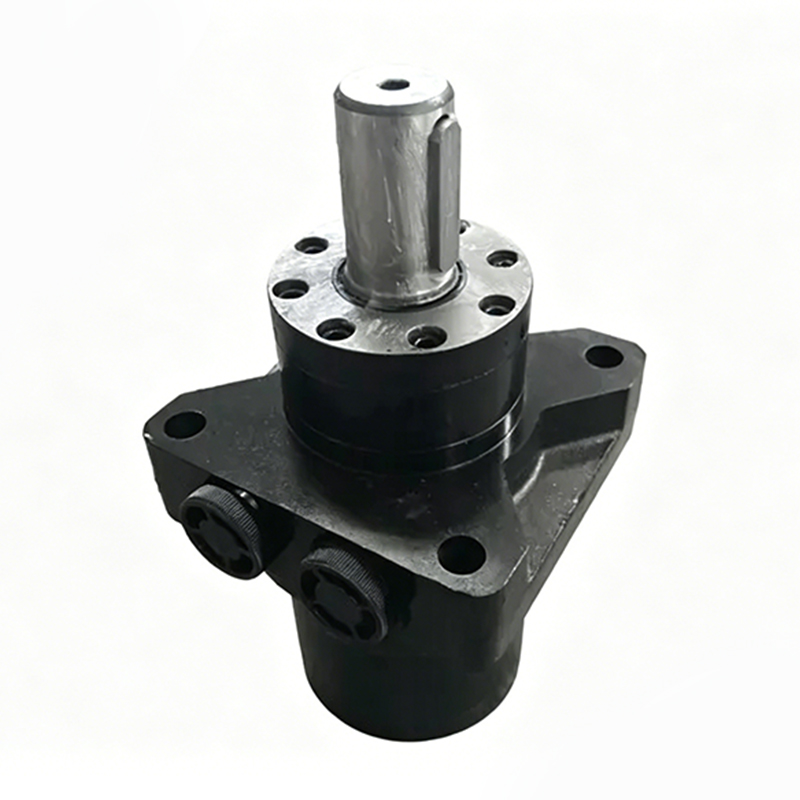

Hydraulic Orbital Geroler / Geroter Wheel Motor BMRW / RW250 / OMEW250
Characteristic Features:
1. Conveyors
2. Feeding mechanism of robots and
3. manipulators
4. Metal working machines
5. Textile machines
6. Food industries
7. Agriculture machines
8. Grass cutting machinery
9. Model- Spool valve, roll-gerotor
10. Wheel mount
11. Shafts- straight and tapered
12. Shaft seal for high and low pressure
13. Metric and BSPP ports
Other Type
| Xeriwell BMRW Motor | M+S RW Motor | OMEW Motor |
| BMRW50 | RW50 | OMEW50 |
| BMRW80 | RW80 | OMEW80 |
| BMRW10 | RW100 | OMEW100 |
| BMRW125 | RW125 | OMEW125 |
| BMRW160 | RW160 | OMEW160 |
| BMRW200 | RW200 | OMEW200 |
| BMRW250 | RW250 | OMEW250 |
| BMRW315 | RW315 | OMEW315 |
| BMRW400 | RW400 | OMEW400 |
Specification
| Type | BMRW 50 | BMRW 80 | BMRW 100 | BMRW 125 | BMRW 160 | BMRW 200 | BMRW 250 | BMRW 315 | BMRW 400 |
| Displacement | 51.5 | 80.3 | 99.8 | 125.7 | 159.6 | 199.8 | 250.1 | 315.7 | 397 |
| Max. Speed | 775 | 750 | 600 | 475 | 375 | 300 | 300 | 240 | 190 |
| Max. Torque | 10 | 20 | 24 | 30 | 39 | 45 | 54 | 55 | 61 |
| Max. Output | 7 | 12.5 | 13 | 12.5 | 11.5 | 11 | 10 | 9 | 7.8 |
