BMRW 200 Hydraulic Wheel Motor, Stable Performance for Wheel Loader and Wheel Crane

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
Hydraulic Wheel Motor BMRW
Brand:
Xeriwell or Others

Product Description

Product Name:	Hydraulic Orbital Motors	Speed.Range(cont.)(r/min):	10-475
Displacement:	50,80,100,125,160,200,250,315,400	Applications:	Wheel Loader, Wheel Crane
Max Allowable Back Pressure:	10Mpa	Max.Output.Power(cont.)(Kw):	32
Highlight:	hydraulic track motor , spool valve motor

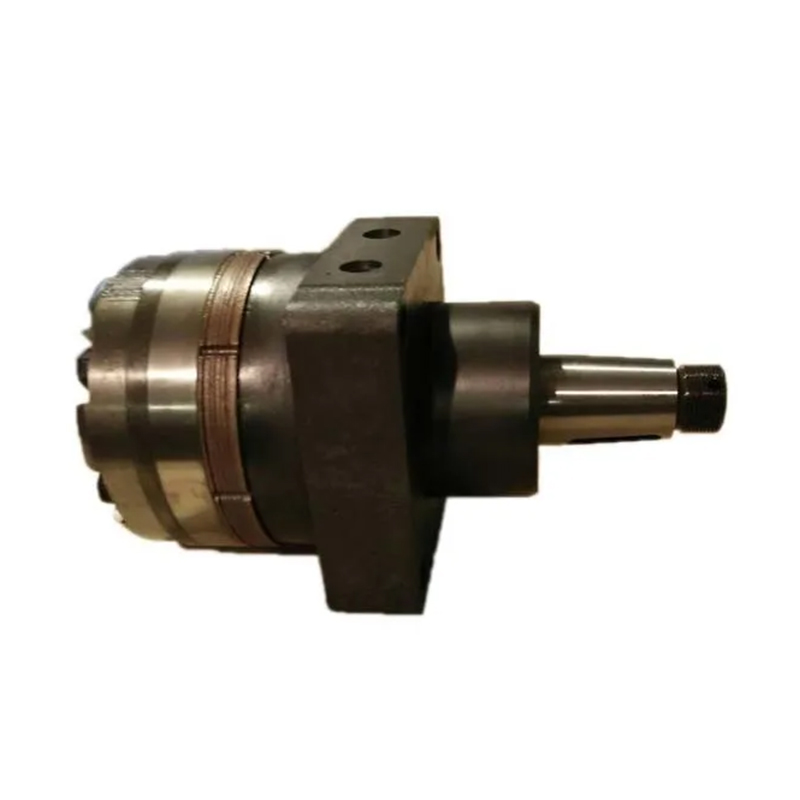

Hydraulic Wheel Motor BMRW 200 For Wheel Loader, Wheel Crane, Machinery

Characteristic Features:

The BMRW hydraulic wheel motor is a kind of low-speed high-torque hydraulic motor featuring high efficiency and long service life. It offers a wide speed range, high starting torque and stable high-speed rotation. With compact size and lightweight design, it can be directly connected to working machinery and widely applicable to various low-speed and heavy-load equipment.

Main Specifications:

TYPE		BMR-50 BMRW-50 BMRS-50	BMR-80 BMRW-80 BMRS-80	BMR-100 BMRW-100 BMRS-100	BMR-125 BMRW-125 BMRS-125	BMR-160 BMRW-160 BMRS-160	BMR-200 BMRW-200 BMRS-200	BMR-250 BMRW-250 BMRS-250	BMR-315 BMRW-315 BMRS-315	BMR-400 BMRW-400 BMRS-400
Displacement (ml/r)		51.7	80.5	100.5	126.3	160.8	200.9	252.6	321.5	401.9
Max.Pressure.Drop(Mpa)	cont.	14	14	14	14	14	14	11	9	7
	int.	17.5	17.5	17.5	17.5	17.5	17.5	14	11	9
	peak.	20	20	20	20	20	20	16	13	11
Max.Torque(N.m)	cont.	93	152	194	237	310	369	380	380	380
	int.	118	189	236	296	378	450	470	470	470
	peak.	135	216	270	338	433	509	540	540	540
Speed.Range(cont.)(r/min)		10-775	10-750	10-600	10-475	10-375	10-300	10-240	10-190	10-160
Max.Flow(cont.)(L/min)		40	60	60	60	60	60	60	60	60
Max.Output.Power(cont.)(Kw)		7	10	10	10	10	8	6	5	4
Weight(kg)		6.5	6.9	7.0	7.3	7.5	8.0	8.5	9.0	11

MOTOR CROSS REFERENCE TABLE

Xeriwell HYDRAULIC	M+S HYDRAULIC	EATON CHAR LYNN		ROSS TRW	WHITE CROSS	PARKER	SAM BREVINI	RECROTH
BMM	MM MLHK	J SERIES	OMM				BGM	MGX
BMP/BM1	MP HP	H SERIES	OMP DH	MF MG	WP RS	TC TE TB	BG	MGP GXP
BMR/BM2	MR HR MLHRW,RW	S,T SERIES W SERIES	OMR DS OMEW	MB	WR RE	TF	BR	MGR GMR
BMH/BM4	MH MLHH HW HWF		OMH	ME	RE	TG
BMS/BM5	MS MSY MLHS	2000 SERIES	OMS	ME	RE	TG	HPR	MGS GMS
BMT/BM6	MT MLHT MTM	6000 SERIES	OMT TMT	MJ			HT	MGT,GMT
BMV	MV MLHV	10000 SERIES	OMV					MGV GMV

Applications:

Made of high-strength ductile cast iron housing, BMRW hydraulic motors feature excellent structural rigidity. They are well suited for light-load and intermittent working conditions, and widely applied in agriculture, forestry, plastics processing, machine tools and mining machinery. Also ideal for conveyor drives, winches, cranes and sawmill equipment.
