BMRW 160 Economical High-Speed Hydraulic Wheel Motor for Machine Tools

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
Hydraulic Wheel Motor BMRW
Brand:
Xeriwell or Others

Product Description

Product Name:	Hydraulic Orbital Motors	Speed.Range(cont.)(r/min):	10-475
Displacement:	50,80,100,125,160,200,250,315,400	Applications:	Machine Tools , Min Machines
Max Allowable Back Pressure:	10Mpa	Max.Output.Power(cont.)(Kw):	32
Highlight:	hydraulic wheel drive motors , hydraulic track motor

Hydraulic Wheel Motor BMRW 160 For Machine Tools , Min Machines

Characteristic Features：

The BMRW hydraulic wheel motor belongs to the low-speed high-torque motor series, boasting high working efficiency and an extended service life.It features a wide speed regulation range, high starting torque, and smooth rotational stability even at high speeds.With a compact and lightweight structure, it can be directly mounted on operating machinery, making it perfectly suitable for various low-speed and heavy-duty equipment.

Main Specifications:

TYPE		BMR-50 BMRW-50 BMRS-50	BMR-80 BMRW-80 BMRS-80	BMR-100 BMRW-100 BMRS-100	BMR-125 BMRW-125 BMRS-125	BMR-160 BMRW-160 BMRS-160	BMR-200 BMRW-200 BMRS-200	BMR-250 BMRW-250 BMRS-250	BMR-315 BMRW-315 BMRS-315	BMR-400 BMRW-400 BMRS-400
Displacement (ml/r)		51.7	80.5	100.5	126.3	160.8	200.9	252.6	321.5	401.9
Max.Pressure.Drop(Mpa)	cont.	14	14	14	14	14	14	11	9	7
	int.	17.5	17.5	17.5	17.5	17.5	17.5	14	11	9
	peak.	20	20	20	20	20	20	16	13	11
Max.Torque(N.m)	cont.	93	152	194	237	310	369	380	380	380
	int.	118	189	236	296	378	450	470	470	470
	peak.	135	216	270	338	433	509	540	540	540
Speed.Range(cont.)(r/min)		10-775	10-750	10-600	10-475	10-375	10-300	10-240	10-190	10-160
Max.Flow(cont.)(L/min)		40	60	60	60	60	60	60	60	60
Max.Output.Power(cont.)(Kw)		7	10	10	10	10	8	6	5	4
Weight(kg)		6.5	6.9	7.0	7.3	7.5	8.0	8.5	9.0	11

MOTOR CROSS REFERENCE TABLE

Xeriwell HYDRAULIC	M+S HYDRAULIC	EATON CHAR LYNN		ROSS TRW	WHITE CROSS	PARKER	SAM BREVINI	RECROTH
BMM	MM MLHK	J SERIES	OMM				BGM	MGX
BMP/BM1	MP HP	H SERIES	OMP DH	MF MG	WP RS	TC TE TB	BG	MGP GXP
BMR/BM2	MR HR MLHRW,RW	S,T SERIES W SERIES	OMR DS OMEW	MB	WR RE	TF	BR	MGR GMR
BMH/BM4	MH MLHH HW HWF		OMH	ME	RE	TG
BMS/BM5	MS MSY MLHS	2000 SERIES	OMS	ME	RE	TG	HPR	MGS GMS
BMT/BM6	MT MLHT MTM	6000 SERIES	OMT TMT	MJ			HT	MGT,GMT
BMV	MV MLHV	10000 SERIES	OMV					MGV GMV

Applications:

The BMRW hydraulic motor adopts high-strength ductile cast iron housing. It is suitable for light-load and intermittent operating conditions. Widely used in agriculture, forestry, plastics industry and machine tools, as well as mining machinery. Typical applications include mold height adjustment of injection molding machines, sweepers, and sawmill workbenches.

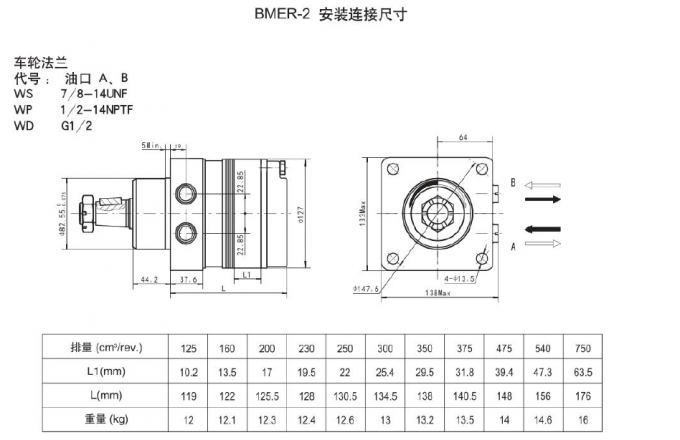

排量 (cm3/rev.)	125	160	200	230	250	300	350	375	475	540	750
L1(mm)	10.2	13.5	17	19.5	22	25.4	29.5	31.8	39.4	47.3	63.5
L(mm)	119	122	125.5	128	130.5	134.5	138	140.5	148	156	176
重量 (kg)	12	12.1	12.3	12.4	12.6	13	13.2	13.5	14	14.6	16

Hydraulic

BMRW 160 Economical High-Speed Hydraulic Wheel Motor for Machine Tools

hydraulic wheel drive motors

hydraulic track motor
