| Quantity: | |
|---|---|
BMR400
Xeriwell or Others
| Product Name: | Hydraulic Orbit Motors | Displacement: | 400CC |
|---|---|---|---|
| Applications: | Sweepers, Road Sweepers,trenchers,augers | Replacement: | OMR400,MR400,SMR400 |
| Ports Size: | Bspp G1/2 | Shaft: | 1" 6B Splined Shaft |
| Highlight: | BMR400-2-E-D-B hydraulic motor lsht,BMR Series hydraulic motor lsht,400cc lsht hydraulic motor | ||

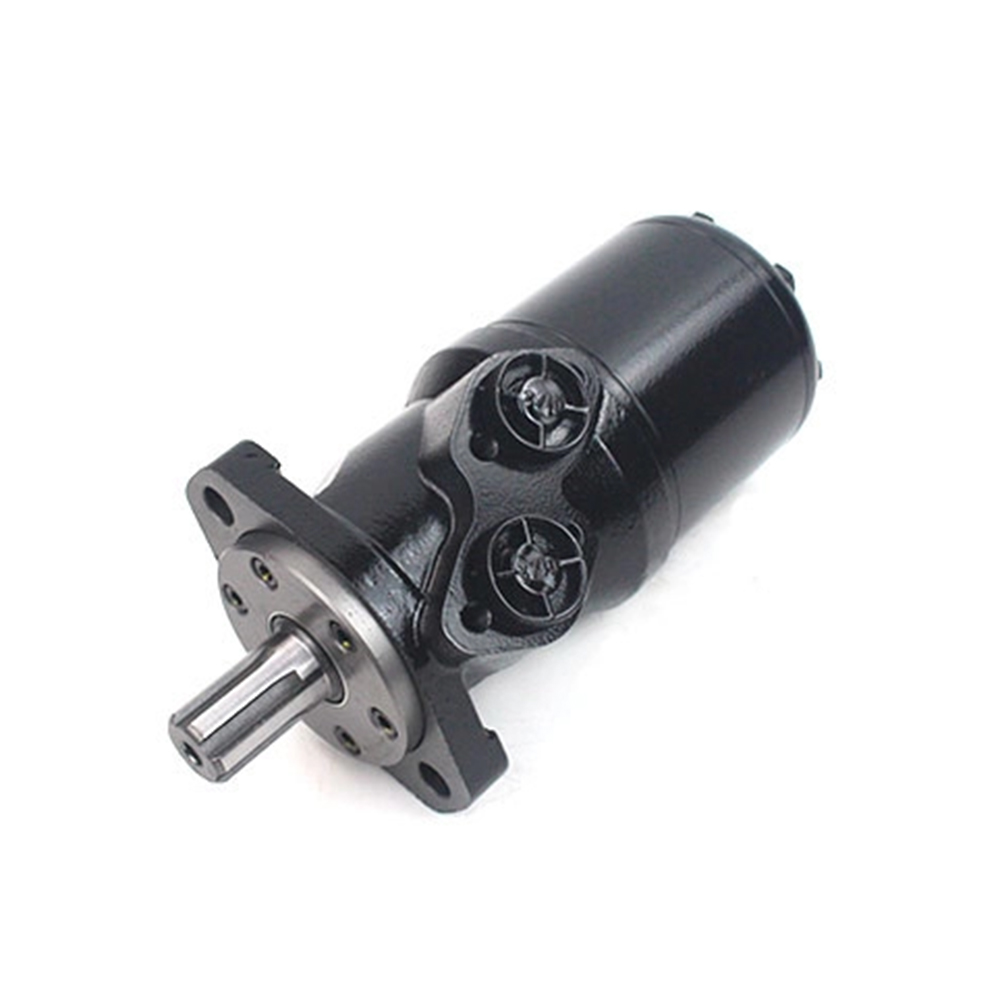

BMR400-2-E-D-B Motor BMR Series 400cc,2 bolts mount, 1"6B Splined Shaft 1/2" Bspp Ports
Product details:
| product type | BMR 400, OMR400, MR400, SMR400 spool valve motor |
| displacement | 400cc |
| flange | 2-φ13.5 Rhomb-flange pilot φ82.5x8 |
| shaft | 1"6B Splined Shaft |
| oil ports | G1/2 manifold mount 4-M8,G1/4 drain ports |
Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3/rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
Recommended use:
Wrappers, forage harvesters, spreaders
Sweepers, sandblasters, snowblowers
Cutters for carrots, beets, onions and others
Leaf and branch scrapers
Conveyor drives
Chippers and branch shredders
Forest winches and vehicle winches
Orchard drill rigs and ground drill rigs
