| Quantity: | |
|---|---|
BMR Hydraulic Motor
Xeriwell or Others
| Features: | Same Than ,M+S,Eaton Motor | Product Name: | Low Speed High Torque Hydraulic Motor BMR |
|---|---|---|---|
| Brand Name: | Xeriwell | Model Number: | BMR / OMR / MR |
| Displacement: | 50cc - 500cc | Application: | Hydraulic System |
| Highlight: | slow speed high torque motor,omt hydraulic motor | ||

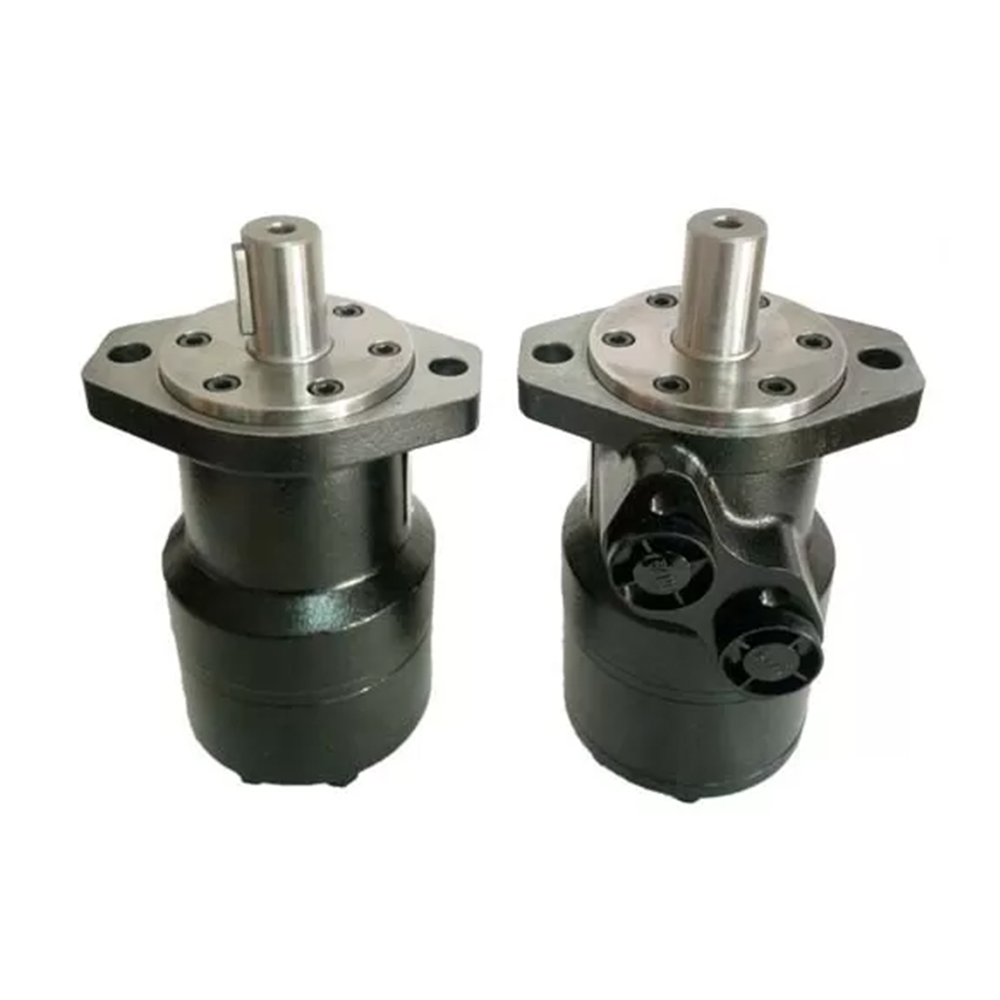

Low Speed High Torque Hydraulic Motor BMR160 Motor Hydraulic Components
BMR series motor is a medium, spool valve type motor. Higher pressure than BMP.
1. Characteristic features
• It adapts the gerolor design. Higher efficiency than BMP motor.
• Credible design for shaft seal , which can bear high pressure.
• Direction of shaft speed can be controlled easily and smoothly.
• Best efficiency and economy in medium load applications
2. Specification
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
3. Application
BMR hydraulic motors are widely applied in
• Agriculture machinery
• Fishing machinery
• Plastic industry, mining, and construction machinery.
• Combine harvesters, rotary tiller, mower, feed mixers, machine.
• Fishing with hauling machine.
• Light industry winding machines, textile machines, printing presses machine.
• Construction industry rollers, cement mixers, cleaning cars.
4. Workshop Equipment
• German machine tool equipment
• Strict quality testing
