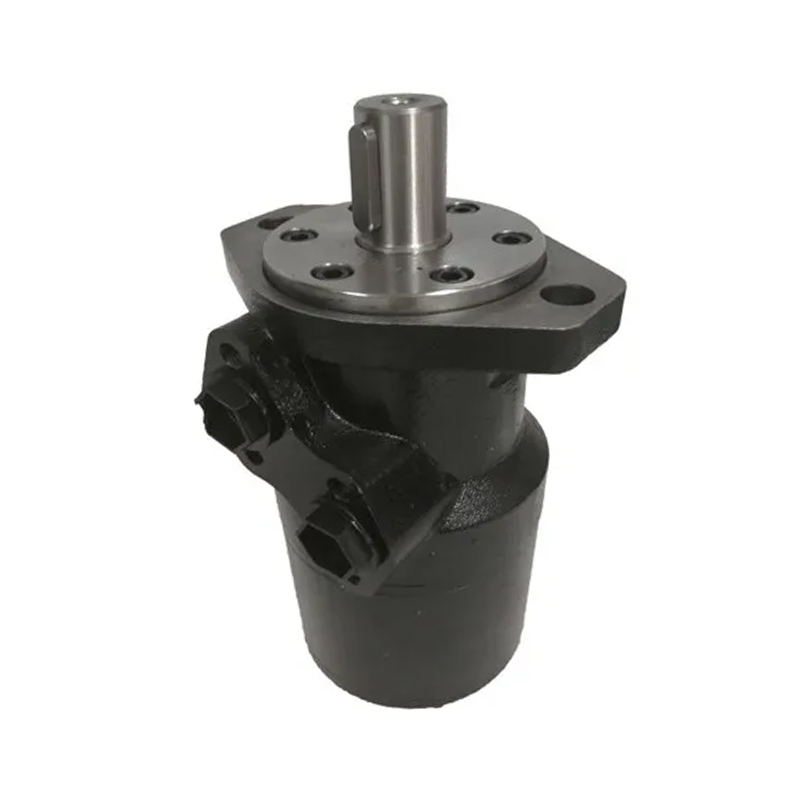

BMR hydraulic winch motor features smooth operation with anticlockwise rotation, delivering a 5‑ton pulling capacity.

BMR hydraulic winch motor features smooth operation with anticlockwise rotation, delivering a 5‑ton pulling capacity.

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
BMR 315
Brand:
Xeriwell or Others

Product Description

Type:	Hydraulic Capstan Motor	Brand:	Xeriwell
Model No.:	BMR-7-d-2-a-2-a-a	Displacement:	315ml/r
More Size:	50ml, 80ml, 100ml, 125ml, 200ml, 315ml, 400ml, 500ml	Speed:	100RPM To 2000RPM
Flow:	40Lpm To 225Lpm	Application:	Farmland Irrigation Winch, Towing And Mooring Winches, Agricultural And Forestry Machinery
Highlight:	high power hydraulic motor , industrial hydraulic motor

Hydraulic Winch Motor BMR Anti-clockwise Rotation Pull 5 Tons

BMR INTRODUCTION:

We produce and supply hydraulic drive motor for winches with full experienced at overshelming price.

BMR series motor replace OMR, Eaton Char Lynn S T series, M+S MR series.

FEATURES:

These orbital hydraulic motors feature low‑speed high‑torque performance, widely applied in lifting, winching, load handling, conveying and various other power‑transmission scenarios.

We offer a full range of models with diverse specifications, including different keyways and shaft options. Compact in size and lightweight, they effectively save installation space. Delivering high torque and efficient power transmission, the motors ensure long service life even under harsh operating conditions.

Available displacements range from 8 ml/r to 1000 ml/r, speed from 100 RPM to 2000 RPM, flow rate from 40 LPM to 225 LPM, working pressure from 9 MPa to 30 MPa, and torque from 75 N·m to 3000 N·m.

Our motors are interchangeable with mainstream models from domestic and European manufacturers, providing equivalent performance at more cost‑effective prices.

We consistently maintain premium quality with competitive pricing, and continuously optimize our manufacturing processes to enhance product performance. Customized hydraulic solutions are also available to meet your specific requirements.

MODEL CROSSING:

MOTOR CROSS REFERENCE TABLE

Xeriwell HYDRAULIC	M+S HYDRAULIC	EATON CHAR LYNN		ROSS TRW	WHITE CROSS	PARKER	SAM BREVINI	RECROTH
BMM	MM MLHK	J SERIES	OMM				BGM	MGX
BMP/BM1	MP HP	H SERIES	OMP DH	MF MG	WP RS	TC TE TB	BG	MGP GXP
BMR/BM2	MR HR MLHRW,RW	S,T SERIES W SERIES	OMR DS OMEW	MB	WR RE	TF	BR	MGR GMR
BMH/BM4	MH MLHH HW HWF		OMH	ME	RE	TG
BMS/BM5	MS MSY MLHS	2000 SERIES	OMS	ME	RE	TG	HPR	MGS GMS
BMT/BM6	MT MLHT MTM	6000 SERIES	OMT TMT	MJ			HT	MGT,GMT
BMV	MV MLHV	10000 SERIES	OMV					MGV GMV

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Technical data for BMR with 31.75 and 32 shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1250	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1520	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	380	450	540	550	580
	int.	83	126	220	280	340	430	500	610	690	690
	peak	105	165	270	320	370	460	560	710	840	830
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	11	10	9	7.5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	12	10	9
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	17.5	17.5	17.5	13.5	11.5
	int.	16.5	17.5	20	20	20	20	20	20	17.5	15
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	21	17.5
Max. flow (L/min)	cont.	45	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	55	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

APPLICATIONS:

Farmland irrigation winch
Towing and mooring winches
Cable Laying winch
Oceanographic research winch
Nautical equipment and winches for fishing boats
Winch as an anchor
Capestani
Special systems for subsea pipelay
Winch Wood from deforestation
Wood processing and cutting machines
Agricultural and forestry machinery
Construction machinery and platform
Ground care and Mowing machinery, etc.
