| Quantity: | |
|---|---|
BMR series
Xeriwell or Others
| Product Name: | Hydraulic Orbital Motors | Displacement: | 80cc,100cc,125cc,160cc |
|---|---|---|---|
| Applications: | Garbage Truck | Material: | Cast Iron |
| Valve Type: | P80 | Max.flow: | Cont 60/int.75 L/min |
| Highlight: | P80 Monoblock Valve,BMR Monoblock Valve,Garbage Truck Hydraulic System Monoblock Valve | ||

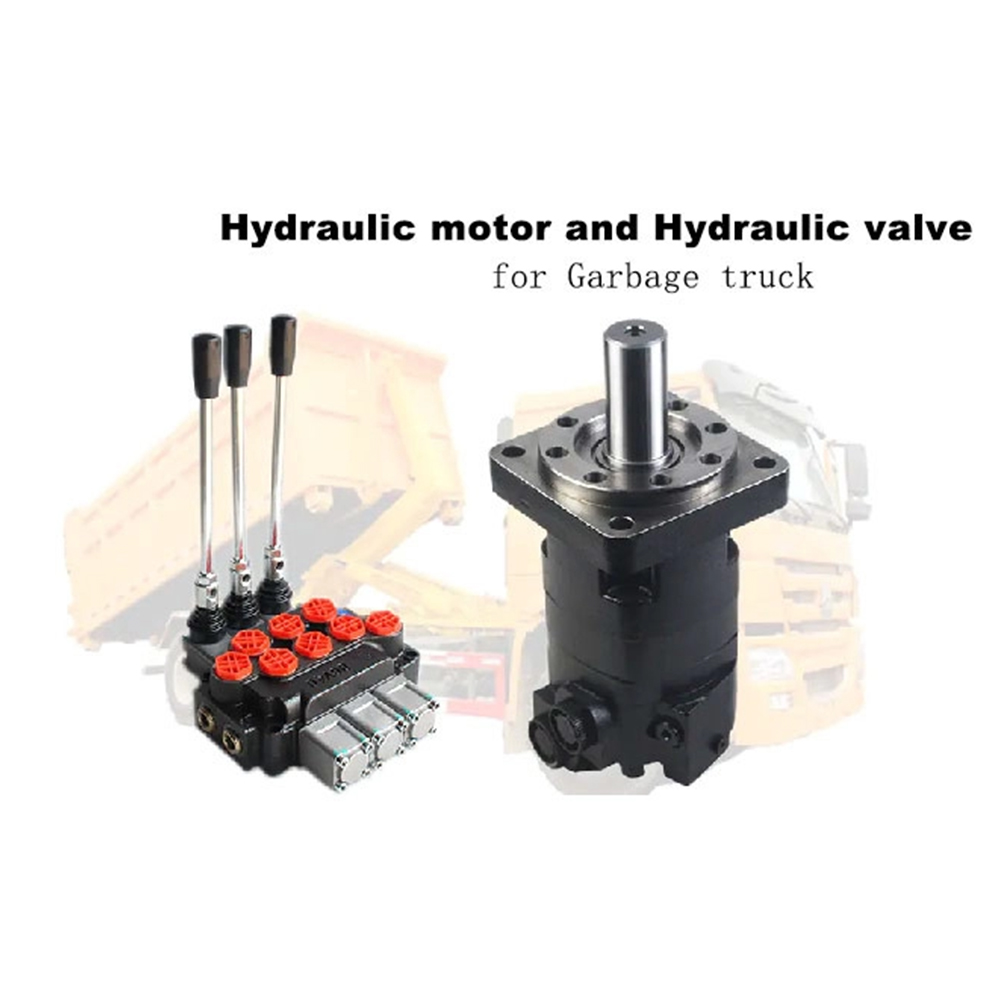

Xeriwell technology supply hydraulic orbit motors and hydraulic valves for garbage truck
the drive motor type is BMR series motor, BMSY series motor
also hydraulic monoblock valve, with spring control and detent control
the pressue is 20-25Mpa
Motor type
BMR160:
displacement:160cc
flange :2 bolts flange
shaft:25mm shaft
ports: G1/2
BMSY200:
displacement:200cc
flange:4 bolts standard flange
shaft:32mm key shaft
ports:G1/2
Hydraulic valve
type:2P80
flow rate:80liters
pressure:200bar
control type:detent control
Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3/rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
