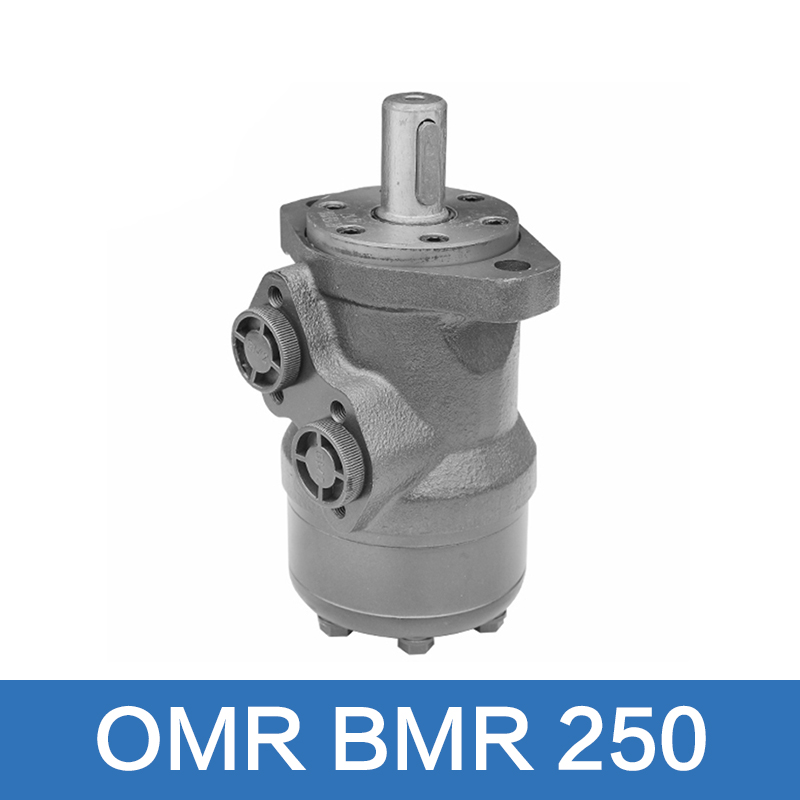

BMR250
Xeriwell or Others
omr bmr 250 orbital Hydraulic motor adapt the advanced Geroler gear set design with shaft distribution flow, which can automatically compensate in
operating with high pressure. provide reliable and smooth operation, high efficiency and long life.
Characteristic features:
1, Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up. provide smooth, reliable operation
and high efficiency.
2, Shaft seal can bear high pressure of back and the motor can be used in parallel or in series
3, Special design in the driver-linker and prolong operating life
4, Special design for distribution system can meet the requirement of low noise of unit.
5, Compact volume and easy installation
Type:
BMR36, BMR50, BMR80, BMR100, BMR125, BMR160, BMR200, BMR250, BMR315, BMR375
OMR36, OMR50, OMR80, OMR100, OMR125, OMR160, OMR200, OMR250, OMR315, OMR375
| COMMODITY INFORMATION | ||
| BMR Technical Data | ||
| Type | BMR BMRS 250 | |
| Geometric displacement(cm²/rev. | 253.3 | |
| Max.speed (rpm) | cont. | 240 |
| int. | 300 | |
| Max.torque (Nm) | cont. | 390 |
| int. | 490 | |
| peak | 640 | |
| Max.output (kW) | cont. | 7.0 |
| int. | 9.5 | |
| Max.pressure drop (MPa) | cont. | 11 |
| int. | 15 | |
| peak | 20 | |
| Max.flow (L/min) | cont. | 60 |
| int. | 75 | |
| Weight (kg) | 8.5 | |
| *Continuous pressure:Max.value of operating motor continuously. *Intermittent pressure:Max.value of operating motor in6 seconds per minute. *Peak pressure:Max.value of operating motor in 0.6 second per minute. | ||
BMR OMR 250 Orbital Hydraulic Motor catalogue pdf manual diagram
