BMP,BMR,BMS Motors
Xeriwell or Others
| Features: | High Pressure Oil Seal | Product Name: | Low RPM Hydraulic Motor BMR |
|---|---|---|---|
| Brand Name: | Xeriwell | Model Number: | BMP,BMR,BMS |
| Displacement: | 50cc - 500cc | Application: | Wood Splitter |
| Highlight: | hydraulic rotation motor,fixed displacement hydraulic motor | ||

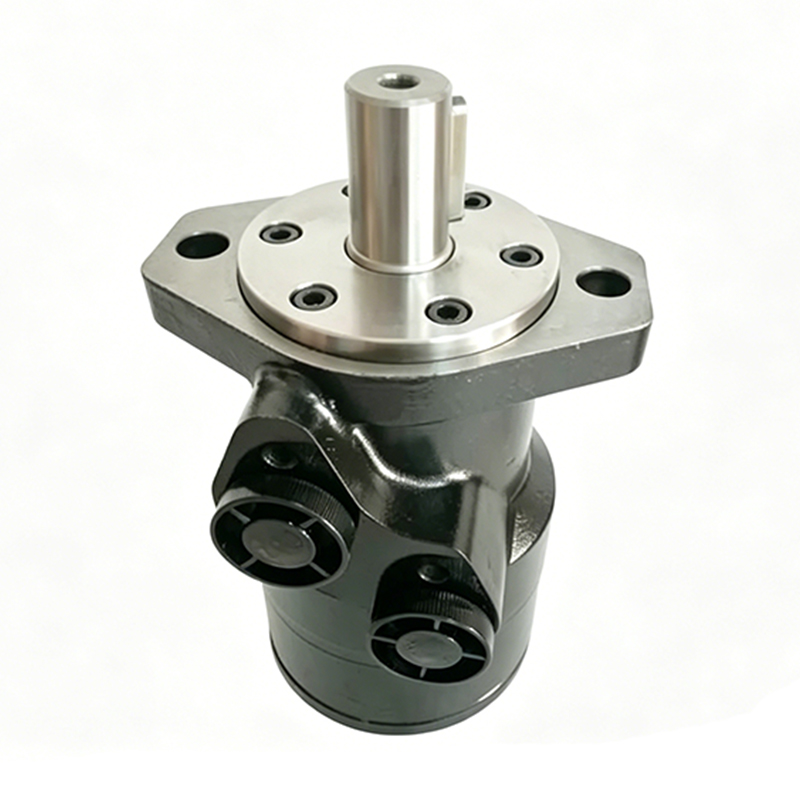

Low RPM Hydraulic Motor BMR For Wood Splitter / Orchard Sweeper Engines Motors
► Characteristic Features
1. Same than OMP,OMR,OMS And M+S MP,MR,MS Hydraulic Motors.
2. High torque low speed hydraulic motors, with high efficiency and long life.
3. High pressure oil seal.
4. Direction of shaft rotation and speed can be controlled easily and smoothly.
► Specification
| MOTOR CROSS REFERENCE TABLE | ||||||||
| Xeriwell HYDRAULIC | M+S HYDRAULIC | EATON CHAR LYNN | ROSS TRW | WHITE CROSS | PARKER | SAM BREVINI | RECROTH | |
| BMM | MM MLHK | J SERIES | OMM | BGM | MGX | |||
| BMP | MP HP | H SERIES | OMP DH | MF MG | WP RS | TC TE TB | BG | MGP GXP |
| BMR | MR HR MLHRW,RW | S,T SERIES W SERIES | OMR DS OMEW | MB | WR RE | TF | BR | MGR GMR |
| BMH | MH MLHH HW HWF | OMH | ME | RE | TG | |||
| BMS | MS MSY MLHS | 2000 SERIES | OMS | ME | RE | TG | HPR | MGS GMS |
| BMT | MT MLHT MTM | 6000 SERIES | OMT TMT | MJ | HT | MGT,GMT | ||
| BMV | MV MLHV | 10000 SERIES | OMV | MGV G | ||||
| Type | BMR 36 | BMR 50 | BMR 80 | BMR 100 | BMR 125 | BMR 160 | BMR 200 | BMR 250 | BMR 315 | BMR 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1250 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1520 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 380 | 450 | 540 | 550 | 580 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 500 | 610 | 690 | 690 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 710 | 840 | 830 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 11 | 10 | 9 | 7.5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 12 | 10 | 9 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 13.5 | 11.5 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 20 | 20 | 17.5 | 15 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 21 | 17.5 | |
| Max. flow (L/min) | cont. | 45 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 55 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
► Application
Low RPM Hydraulic Motor BMP , BMR , BMS For Rotating Wood Splitter Engines Motor
1. Hydraulic Wood Splitter
2. Hydraulic Rotating
3. Agricultural Forest Equipment
4. Orchard Sweeper
