| Quantity: | |
|---|---|
BMRS160-H2AG-00
Xeriwell or Others
| Type: | Replace Motor Hydraulics | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BMRS160-H2AG-00 | Displacement: | 160 Ml/r |
| More Size: | 50ml, 80ml, 100ml, 125ml, 200ml, 315ml, 400ml, 500ml | Speed: | 378 RPM To 475RPM |
| Flow: | 60 Lpm To 75 Lpm | Application: | Heavy Duty Equipment, Ag Machinery |
| Highlight: | mini hydraulic motor,omm hydraulic motor | ||

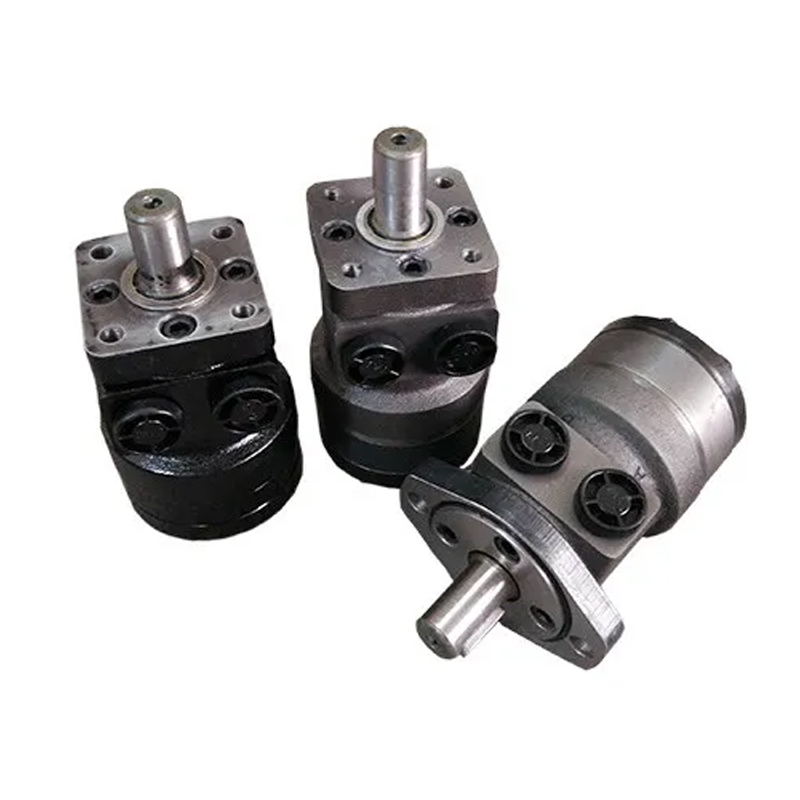

Hydraulic Motor Heavy Duty Equipment Small Drive Motors BMR 2-bolt mounting
Quick details:
we produce hydraulic motors for digging, drilling, rolling, lifting applications
variety version available from BMM, BMP, BMR, BMH, BMS, BMT, BMV, BMK2, BMK6, BMER
variety types with same specifications with most Eaton Char-lynn, , Parker, and many more
Speed: 200 RPM to 1650 RPM
Flow: 240 Lpm to 55 Lpm
Power: 5.0 KW - 56 KW
Torque: 55 Nm - 2400 Nm
meet all application on Heavy duty equipment, Ag machinery, Industrial
| Main Specifications: |
| Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft: |
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
| Specification Data of Hydraulic Motors | |||||
| Distribution type | Model | Displacement | Max. operating pressure | Speed range | Max. output power |
| (cm3/rev.) | (MPa) | (rpm) | (kW) | ||
| Axial distribution | BMM | 8-50 | 14 | 30-1950 | 3.2 |
| BMP | 36-400 | 16.5 | 30-879 | 10 | |
| BMR | 36-375 | 20 | 30-970 | 15 | |
| BMH | 200-500 | 20 | 30-430 | 17 | |
| Specification Data of Hydraulic Motor | |||||
| Distribution type | Model | Displacement | Max. operating pressure | Speed range | Max. output power |
| (cm3/rev.) | (MPa) | (rpm) | (kW) | ||
| Disc distribution | BMS | 80-475 | 22.5 | 30-800 | 24 |
| BMT | 160-800 | 24 | 30-705 | 35 | |
| BMV | 315-800 | 28 | 10-446 | 43 | |

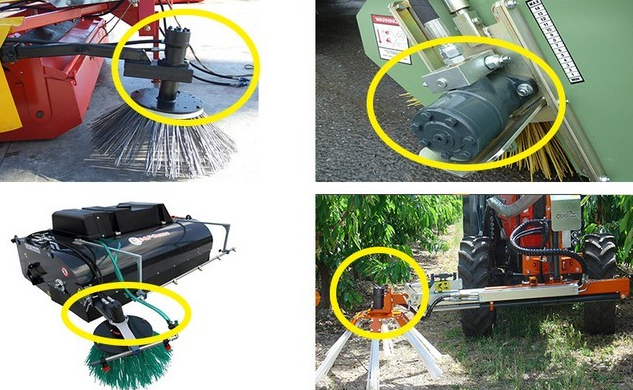

BMR series orbital hydraulic motors are low-speed high-torque units, widely fitted on multiple equipment as below:

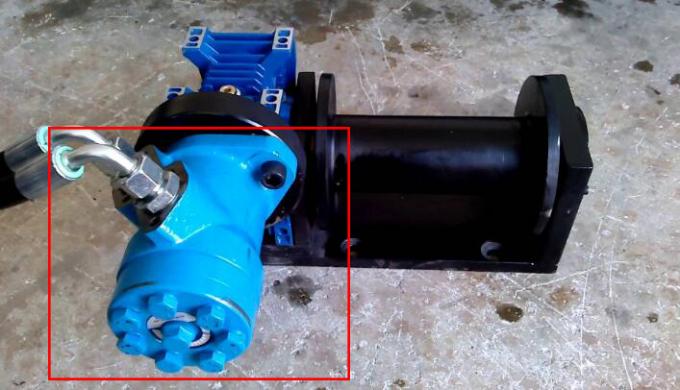

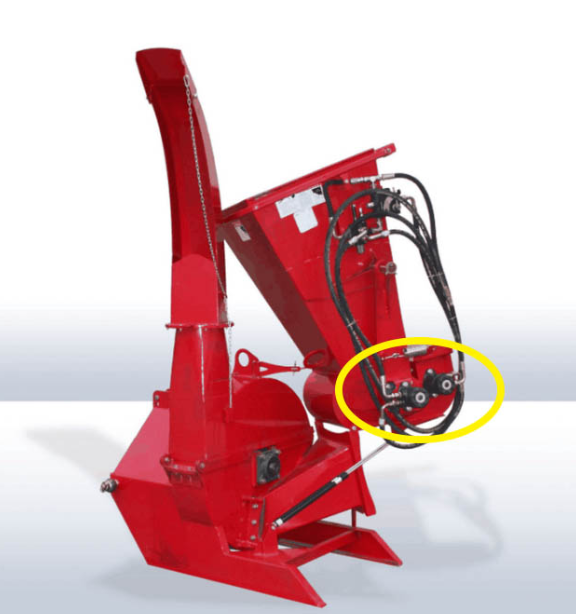

Farm irrigation winches, hauling & mooring winches, cable laying winches, oceanographic research winches, marine & fishing vessel winches, anchor winches and capstans; subsea pipelaying specialized equipment; timber logging, wood cutting & processing machinery; agricultural & forestry machines; construction machinery and working platforms; turf maintenance and lawn mowing equipment, among others.
