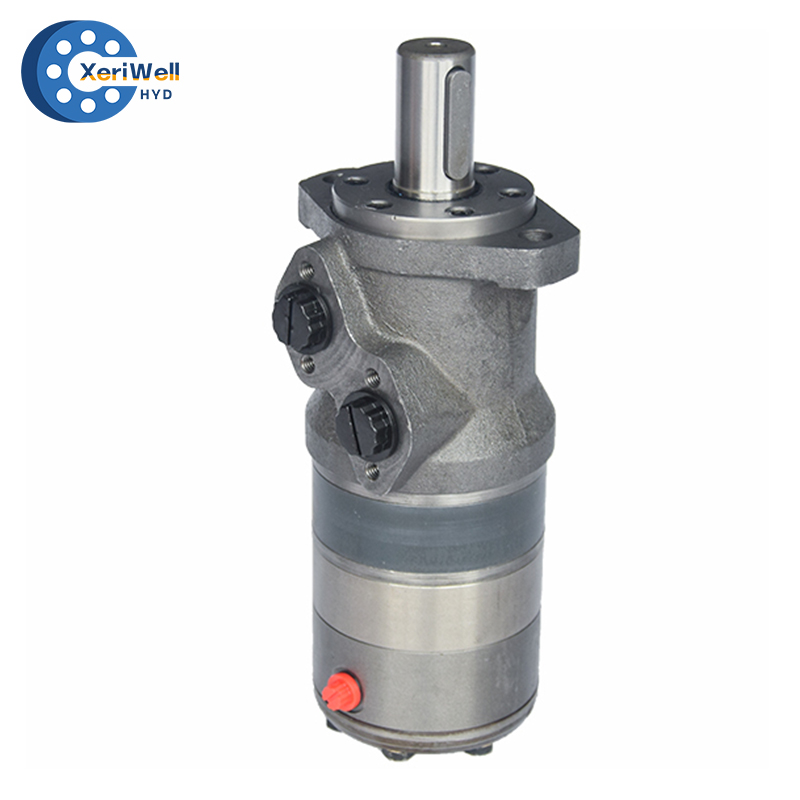

BMR-BK01
Xeriwell or Others

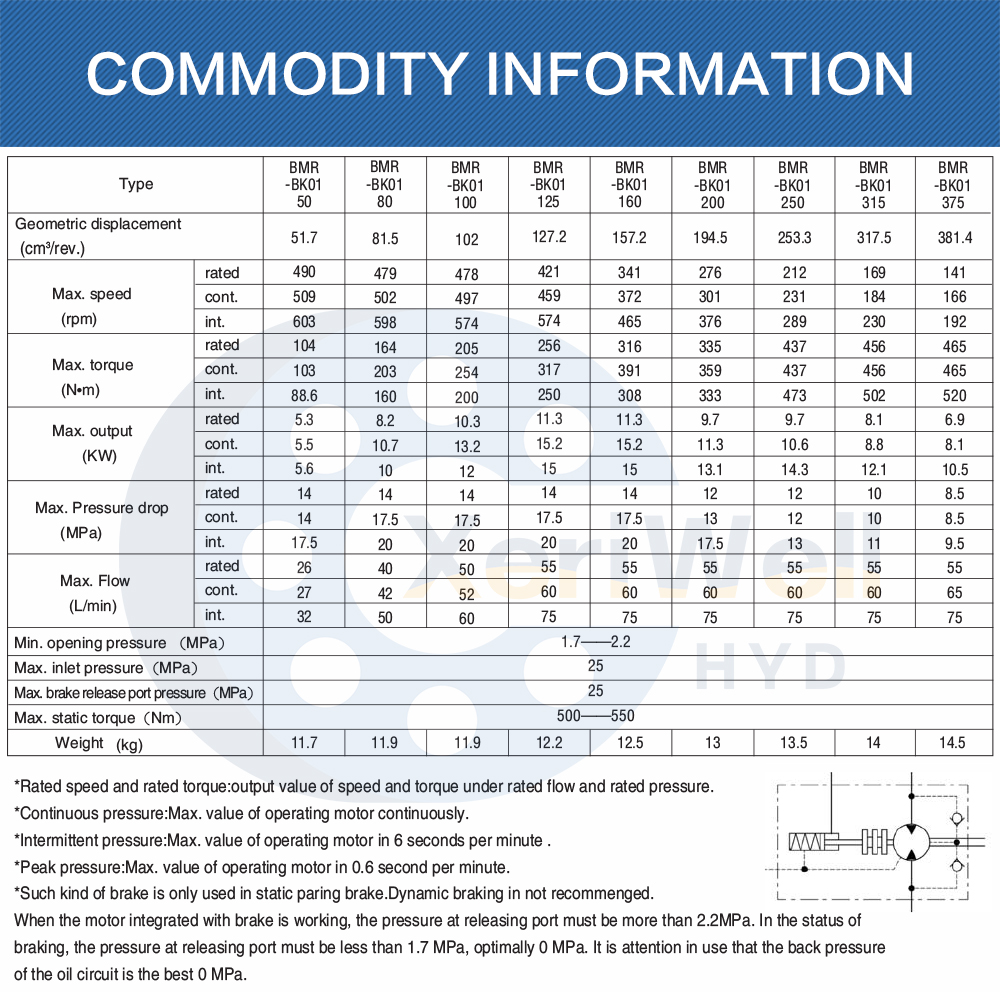

BMR-BK01 50/80/100/125/160/200/250/315/375 Orbital Hydraulic Motor Technical Data:
| Type | BMR -BK01 50 | BMR -BK01 80 | BMR -BK01 100 | BMR -BK01 125 | BMR -BK01 160 | BMR -BK01 200 | BMR -BK01 250 | BMR -BK01 315 | BMR -BK01 375 | |
| Geometric displacement (cm3/rev.) | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | rated | 490 | 479 | 478 | 421 | 341 | 276 | 212 | 169 | 141 |
| cont. | 509 | 502 | 497 | 459 | 372 | 301 | 231 | 184 | 166 | |
| int. | 603 | 598 | 574 | 574 | 465 | 376 | 289 | 230 | 192 | |
| Max. torque (N•m) | rated | 104 | 164 | 205 | 256 | 316 | 335 | 437 | 456 | 465 |
| cont. | 103 | 203 | 254 | 317 | 391 | 359 | 437 | 456 | 465 | |
| int. | 88.6 | 160 | 200 | 250 | 308 | 333 | 473 | 502 | 520 | |
| Max. output (KW) | rated | 5.3 | 8.2 | 10.3 | 11.3 | 11.3 | 9.7 | 9.7 | 8.1 | 6.9 |
| cont. | 5.5 | 10.7 | 13.2 | 15.2 | 15.2 | 11.3 | 10.6 | 8.8 | 8.1 | |
| int. | 5.6 | 10 | 12 | 15 | 15 | 13.1 | 14.3 | 12.1 | 10.5 | |
| Max. Pressure drop (MPa) | rated | 14 | 14 | 14 | 14 | 14 | 12 | 12 | 10 | 8.5 |
| cont. | 14 | 17.5 | 17.5 | 17.5 | 17.5 | 13 | 12 | 10 | 8.5 | |
| int. | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 13 | 11 | 9.5 | |
| Max. Flow (L/min) | rated | 26 | 40 | 50 | 55 | 55 | 55 | 55 | 55 | 55 |
| cont. | 27 | 42 | 52 | 60 | 60 | 60 | 60 | 60 | 65 | |
| int. | 32 | 50 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Min. opening pressure （MPa） | 1.7——2.2 | |||||||||
| Max. inlet pressure （MPa） | 25 | |||||||||
| Max. brake release port pressure（MPa） | 25 | |||||||||
| Max. static torque（Nm） | 500——550 | |||||||||
| Weight （kg） | 11.7 | 11.9 | 11.9 | 12.2 | 12.5 | 13 | 13.5 | 14 | 14.5 | |
