BMP125
Xeriwell or Others
| Type: | Gerotor Motor | Model No.: | BMPH125 |
|---|---|---|---|
| Speed: | Cont.490/int.615rpm | Torque: | Cont.236/int.290 Nm |
| Max Power: | Cont.10/int.12KW | Max Flow: | Cont.60/int.75LPM |
| Highlight: | Eaton Hydraulic Motor 1800 Psi,BMPH125 Eaton Hydraulic Motor,BMPH125 Hydraulic drive Motor | ||

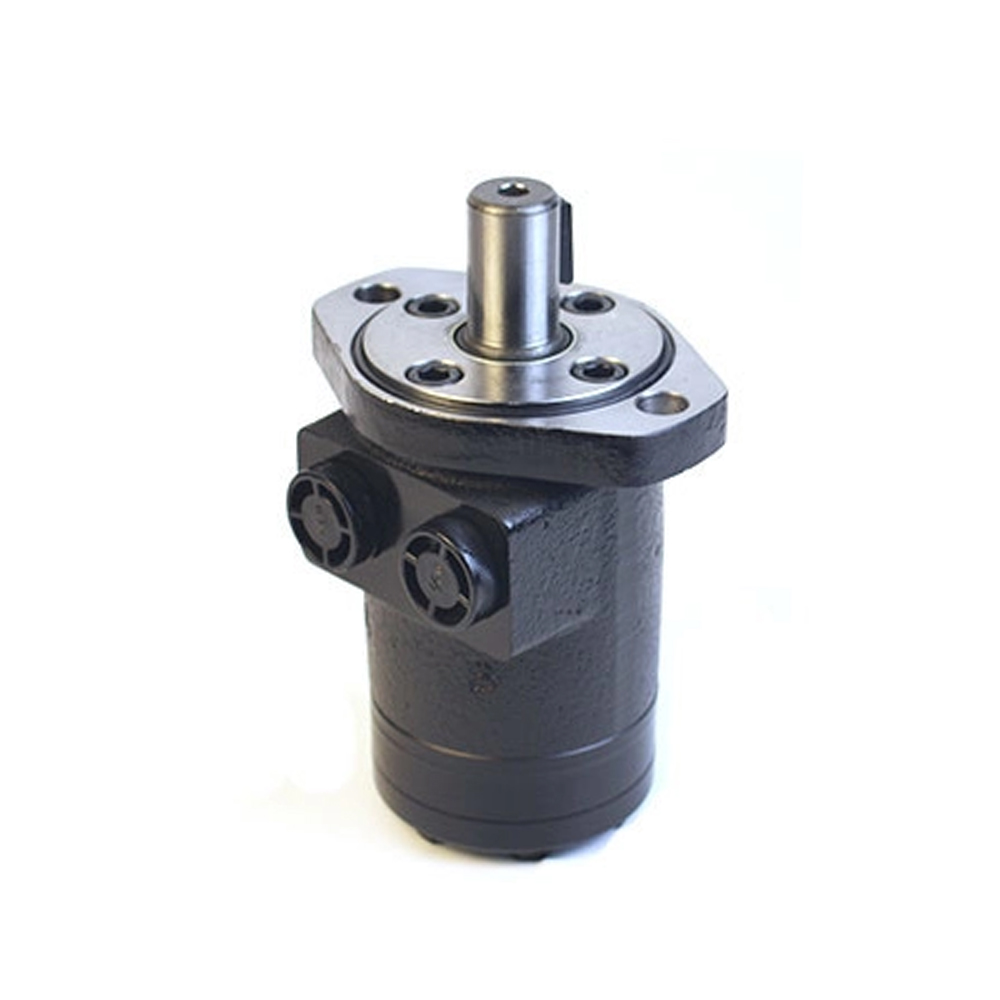

EATON MOTOR "H" SERIES: 2-BOLT FLANGE, 5.9 CID, 1/2 NPT PORTS, 1" WOODRUF KEY SHAFT, 1800 PSI
Product details
type code:BMPH-125-H2-K-P
- Displacement: 125cc
- Flange :2bolts flange,82.5mm pilot
- Shaft: woodruff key Ø25.4mm
- Ports: 1/2-14NPT
- Drain port:7/16-20NPT
Specification:
| Type | BMPH 36 | BMPH 50 | BMPH 80 | BMPH 100 | BMPH 125 | BMPH 160 | BMPH 200 | BMPH 250 | BMPH 315 | BMPH 400 | BMPH 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 460 | 475 | 490 | 430 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 570 | 555 | 580 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 670 | 840 | 840 | 780 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 6 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 7 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 9.5 | 7 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 13 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
Replaces the following brands and model numbers
Char Lynn: 101-1038
Danfoss: 151-2007, 151-3407
Dynamic BMPH-250-H2-K-S
RR USA: HP250-C-4-U
White: 155250A11B1AAAAA
Young Power Tech : YMPH250-H2-K-S
Eagle: EBMPH250-H2-K-S
