| Quantity: | |
|---|---|
BMPH-125-H6-S-S-B
Xeriwell or Others
| Item: | Hydraulic Motor | Direction: | Left And Right |
|---|---|---|---|
| OEM #: | BMPH-125-H6-S-S-B | Displacement: | 125cc |
| Flange: | Magneto Mount | Shaft Size: | 6B Spline Shaft |
| Oil Port: | 7/8-14 SAE | Package: | Carton |
| Highlight: | bmph series orbit hydraulic motor,125cc orbit hydraulic motor | ||

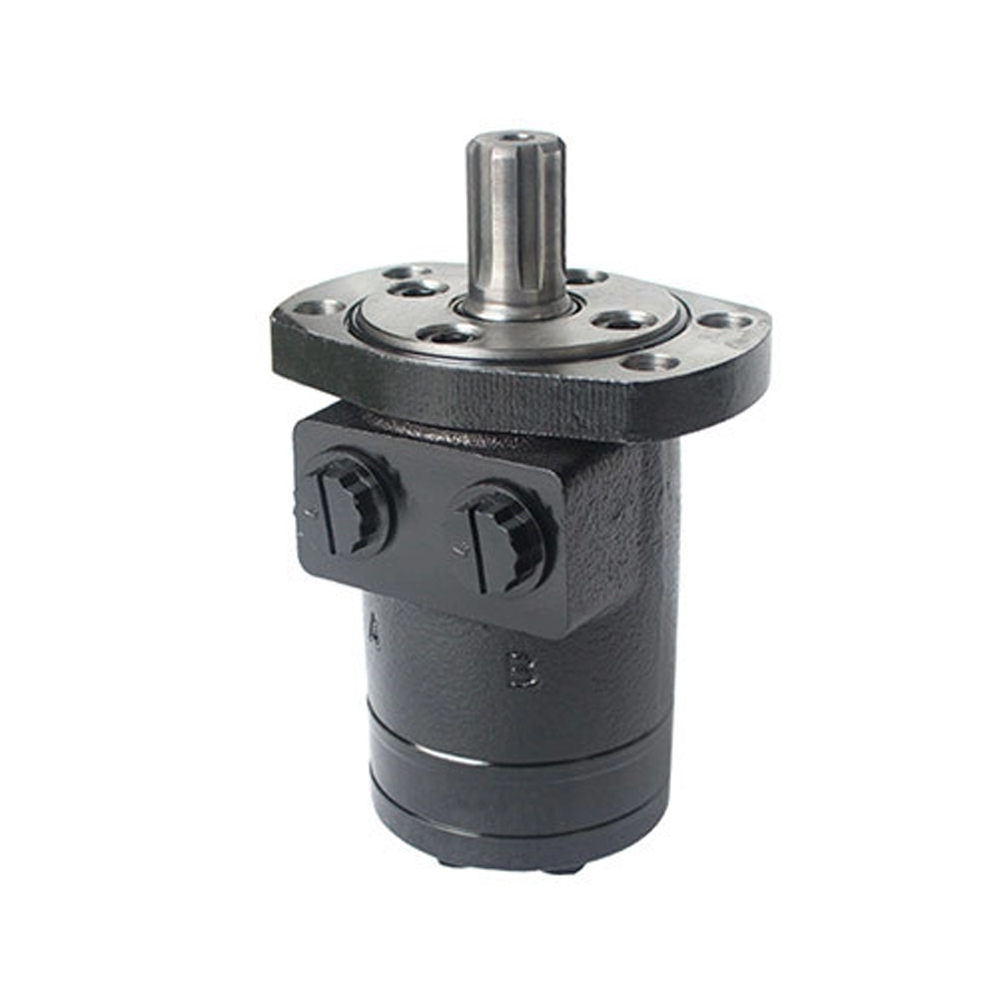

Motor BMPH Series 125cc Magneto Mount SAE 6B Spline shaft 7/8-14 SAE Ports
The BMPH Gerotor ,gear set, shaft distribution flow, hydraulic motor is a compact, highly efficient, low-speed high-torque design which can be sued in either parallel or series systems. These low weight, advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system.
Product details
type code:BMPH-125-H6-S-S-B
displacement:125cc
mounting flange:Magneto mounting flange
shaft size: SAE 6B Spline shaft
port threads:7/8-14 unf
Main Specifications:
| Type | BMP BMPH BMPW 36 | BMP BMPH BMPW 50 | BMP BMPH BMPW 80 | BMP BMPH BMPW 100 | BMP BMPH BMPW 125 | BMP BMPH BMPW 160 | BMP BMPH BMPW 200 | BMP BMPH BMPW 250 | BMP BMPH BMPW 315 | BMP BMPH BMPW 400 | BMP BMPH BMPW 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
