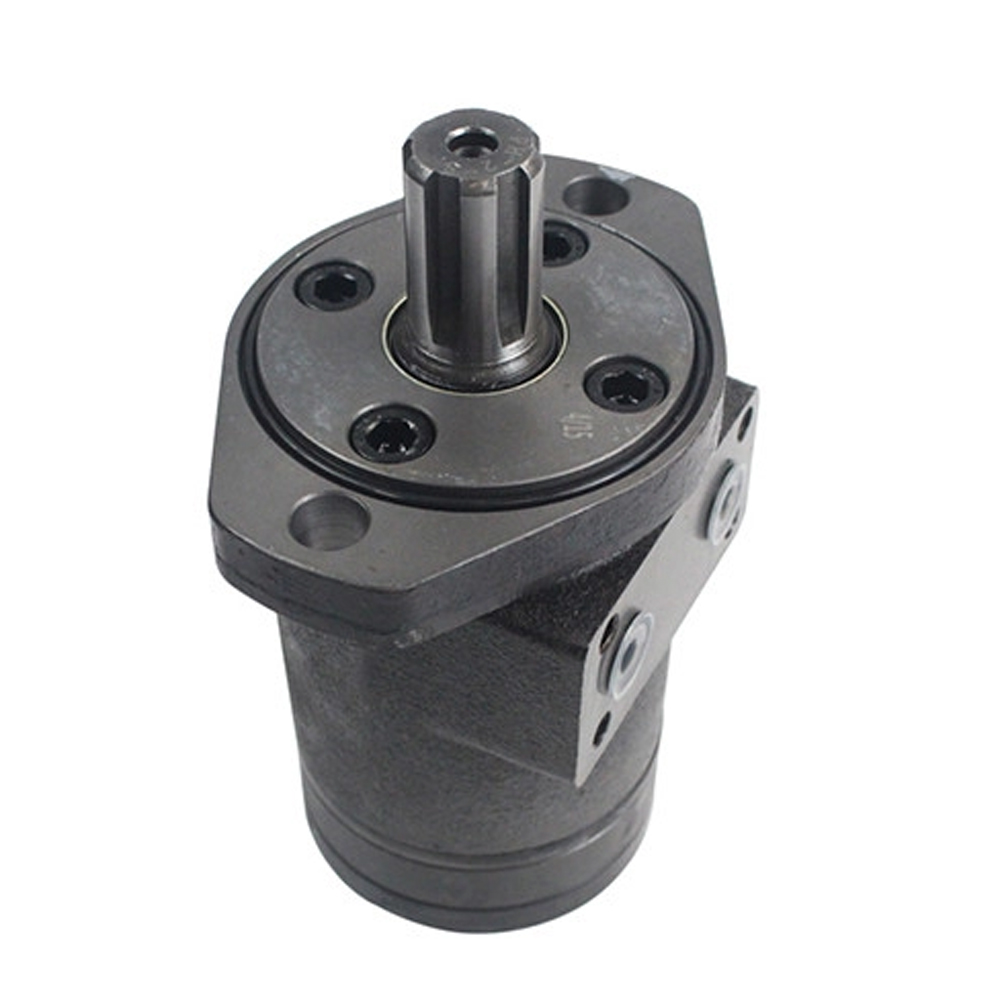

BMPH-125-H2-S-B4
Xeriwell or Others
| Item: | Hydraulic Motor | OEM #: | BMPH-125-H2-S-B4 |
|---|---|---|---|
| Displacement: | 125cc | Rotation: | CW |
| Highlight: | China Hydraulic Motor Factory Wholesale,Super Value Recommendation Hydraulic Motor,BMPH-125-H2-S-B4 Hydraulic Motor | ||
BMPH-125-H2-S-B4, Super Value Recommendation, China Hydraulic Motor Factory Wholesale
BMP series motors are medium speed, high torque motors designed on an internal gear design consisting of a rotor and stator. These motors are suitable for long operating periods at moderate pressures.
Characteristic Features:
• Advanced manufacturing design for the Gerotor gear set, which provide high starting torque, high efficiency and long life
• Motors have high pressure shaft seals which can be used in Parallel or Series
• Smooth running over the entire speed range
These low weight, advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system.
Model No.:
BMPH-125-H2-S-B4
| Main Specifications: |
| Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft: |
| Type | BMP BMPH BMPW 36 | BMP BMPH BMPW 50 | BMP BMPH BMPW 80 | BMP BMPH BMPW 100 | BMP BMPH BMPW 125 | BMP BMPH BMPW 160 | BMP BMPH BMPW 200 | BMP BMPH BMPW 250 | BMP BMPH BMPW 315 | BMP BMPH BMPW 400 | BMP BMPH BMPW 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |

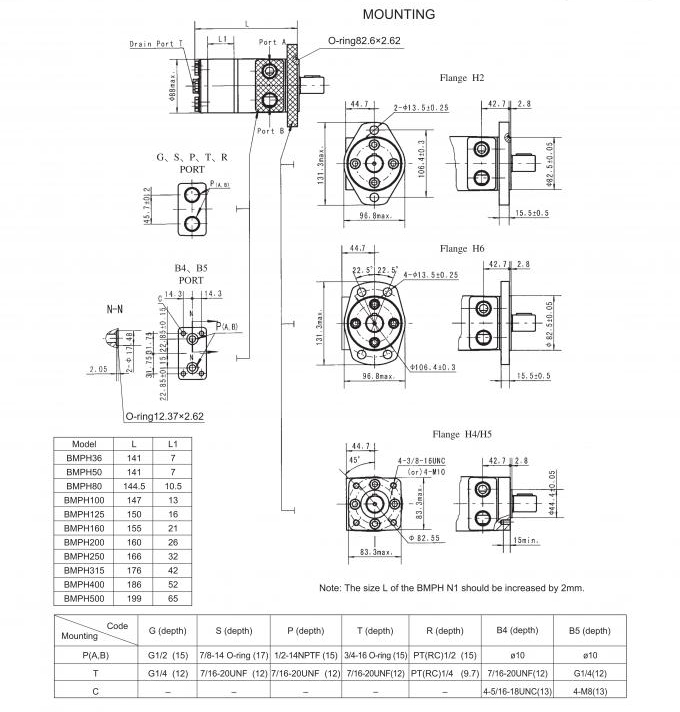

| Model | L | L1 |
| BMPH36 | 141 | 7 |
| BMPH50 | 141 | 7 |
| BMPH80 | 144.5 | 10.5 |
| BMPH100 | 147 | 13 |
| BMPH125 | 150 | 16 |
| BMPH160 | 155 | 21 |
| BMPH200 | 160 | 26 |
| BMPH250 | 166 | 32 |
| BMPH315 | 176 | 42 |
| BMPH400 | 186 | 52 |
| BMPH500 | 199 | 65 |
