Hydraulic Motors BMP
Xeriwell or Others
| Features: | Small Size, Compact Structure | Product: | Hydraulic Gear Motors |
|---|---|---|---|
| Displacement: | 50cc,80cc,100cc,125cc,160cc......500cc | Oil Port: | G1/2 , M22*1.5 , 1/2-14NPTF...... |
| Replacement: | OMP, Eaton H Series , M+S MP Etc | Flange: | 2 Bolt Flange ....... |
| Highlight: | high power hydraulic motor,industrial hydraulic motor | ||

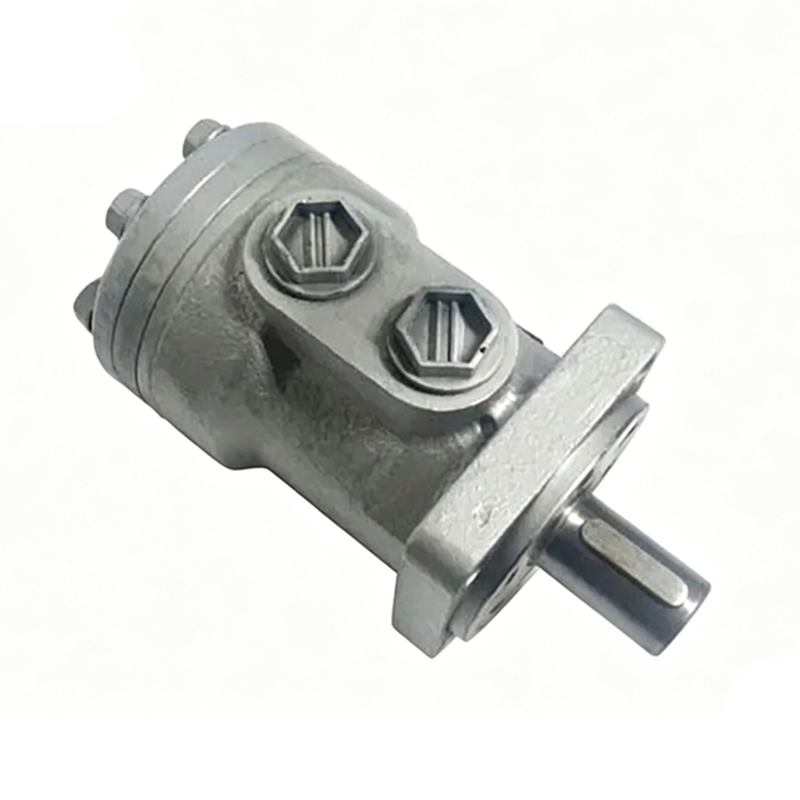

Hydraulic Motors BMP 80 For Hydraulic Transmission Of Engineering Machinery
BMP series motor adapt the advanced Gerolor gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure , provide reliable and smooth operation, high efficiency and long life.
Characteristic Features:
* Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.
* Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.
* Special design in the driver-linker and prolong operating life
* A variety of connection type of flange output shaft and oil port .
Main Specifications:
| Technical data for BMP with 31.75 and 32 shaftt: |
| Type | BMP BMPH 36 | BMP BMPH 50 | BMP BMPH 80 | BMP BMPH 100 | BMP BMPH 125 | BMP BMPH 160 | BMP BMPH 200 | BMP BMPH 250 | BMP BMPH 315 | BMP BMPH 400 | BMP BMPH 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 460 | 475 | 490 | 430 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 570 | 555 | 580 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 670 | 840 | 840 | 780 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 6 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 7 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 9.5 | 7 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 13 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
| MOTOR CROSS REFERENCE TABLE | ||||||||
| Xeriwell HYDRAULIC | M+S HYDRAULIC | EATON CHAR LYNN | ROSS TRW | WHITE CROSS | PARKER | SAM BREVINI | RECROTH | |
| BMM | MM MLHK | J SERIES | OMM | BGM | MGX | |||
| BMP/BM1 | MP HP | H SERIES | OMP DH | MF MG | WP RS | TC TE TB | BG | MGP GXP |
| BMR/BM2 | MR HR MLHRW,RW | S,T SERIES W SERIES | OMR DS OMEW | MB | WR RE | TF | BR | MGR GMR |
| BMH/BM4 | MH MLHH HW HWF | OMH | ME | RE | TG | |||
| BMS/BM5 | MS MSY MLHS | 2000 SERIES | OMS | ME | RE | TG | HPR | MGS GMS |
| BMT/BM6 | MT MLHT MTM | 6000 SERIES | OMT TMT | MJ | HT | MGT,GMT | ||
| BMV | MV MLHV | 10000 SERIES | OMV | MGV GMV | ||||
Applications :
working machine directly, adapted to all kinds of low speed heavy load facilities.
