| Quantity: | |
|---|---|
BMP 160
Xeriwell or Others
| Product Name: | Hydraulic Gear Motors | Max Working Temperature: | 80° |
|---|---|---|---|
| Displacement: | 50cc,80cc, 100cc,125cc,160cc......500cc | Applications: | Mowers Harvesting Equipment |
| Replacement: | OMP, Eaton H, M+S MP Etc | Max Allowable Back Pressure: | 10Mpa |
| Highlight: | compact hydraulic motor,omm hydraulic motor | ||

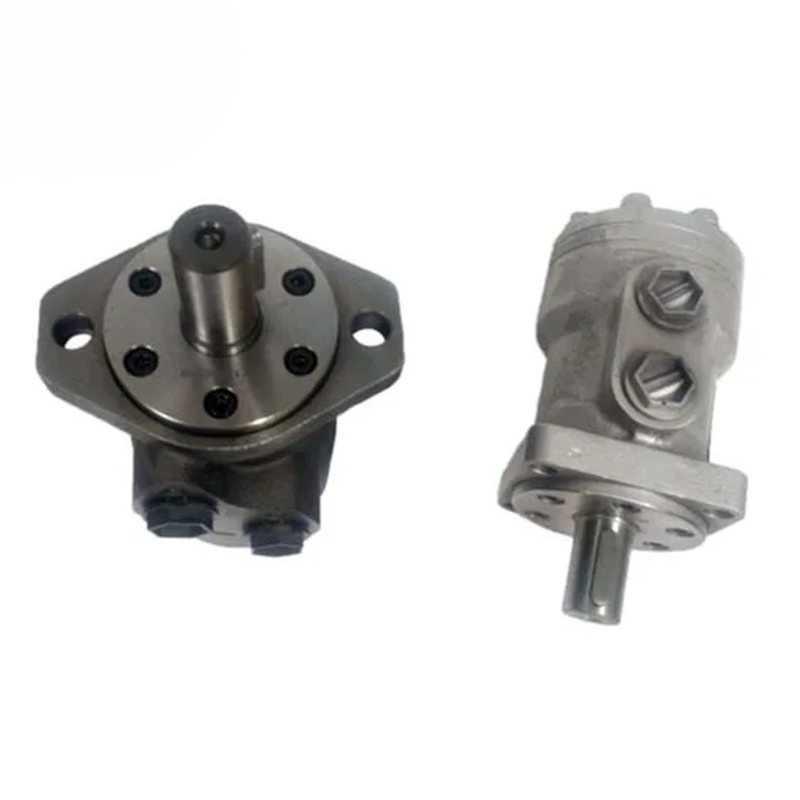

Hydraulic Orbit Motor BMP 160 For Mowers Harvesting equipment
BMP series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weigth.
Characteristic Features:
* Orbital hydraulic motors BMP are medium size motors which have compact and light construction.
* Shaft seal can bear high pressure of motor of which can be used in parallel or series.
* Advanced construction design, high power and low weight.
Main Specifications:
| Technical data for BMP with 31.75 and 32 shaftt: |
| Type | BMP BMPH 36 | BMP BMPH 50 | BMP BMPH 80 | BMP BMPH 100 | BMP BMPH 125 | BMP BMPH 160 | BMP BMPH 200 | BMP BMPH 250 | BMP BMPH 315 | BMP BMPH 400 | BMP BMPH 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 460 | 475 | 490 | 430 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 570 | 555 | 580 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 670 | 840 | 840 | 780 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 6 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 7 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 9.5 | 7 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 13 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
* Continuous pressure : Max. value of operating motor continuously.
* Intermittent pressure : Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
| MOTOR CROSS REFERENCE TABLE | ||||||||
| Xeriwell HYDRAULIC | M+S HYDRAULIC | EATON CHAR LYNN | ROSS TRW | WHITE CROSS | PARKER | SAM BREVINI | RECROTH | |
| BMM | MM MLHK | J SERIES | OMM | BGM | MGX | |||
| BMP/BM1 | MP HP | H SERIES | OMP DH | MF MG | WP RS | TC TE TB | BG | MGP GXP |
| BMR/BM2 | MR HR MLHRW,RW | S,T SERIES W SERIES | OMR DS OMEW | MB | WR RE | TF | BR | MGR GMR |
| BMH/BM4 | MH MLHH HW HWF | OMH | ME | RE | TG | |||
| BMS/BM5 | MS MSY MLHS | 2000 SERIES | OMS | ME | RE | TG | HPR | MGS GMS |
| BMT/BM6 | MT MLHT MTM | 6000 SERIES | OMT TMT | MJ | HT | MGT,GMT | ||
| BMV | MV MLHV | 10000 SERIES | OMV | MGV GMV | ||||
Applications :
Skid-steer attachments Swing motors Brush cutters
Mowers Harvesting equipment
Directional boring Winch Auger .
