BMP
Xeriwell or Others
| Product: | Hydraulic Motor | Characteristic: | Gerotor / Gerolor |
|---|---|---|---|
| Type: | BMP | Displacement: | 50-500cc |
| Shaft: | 25mm,25.4mm,32mm | Oil Port: | G1/2 |
| Color: | Black Or Gray | Warranty: | 12 Months |
| Highlight: | high power hydraulic motor,two speed hydraulic motor | ||

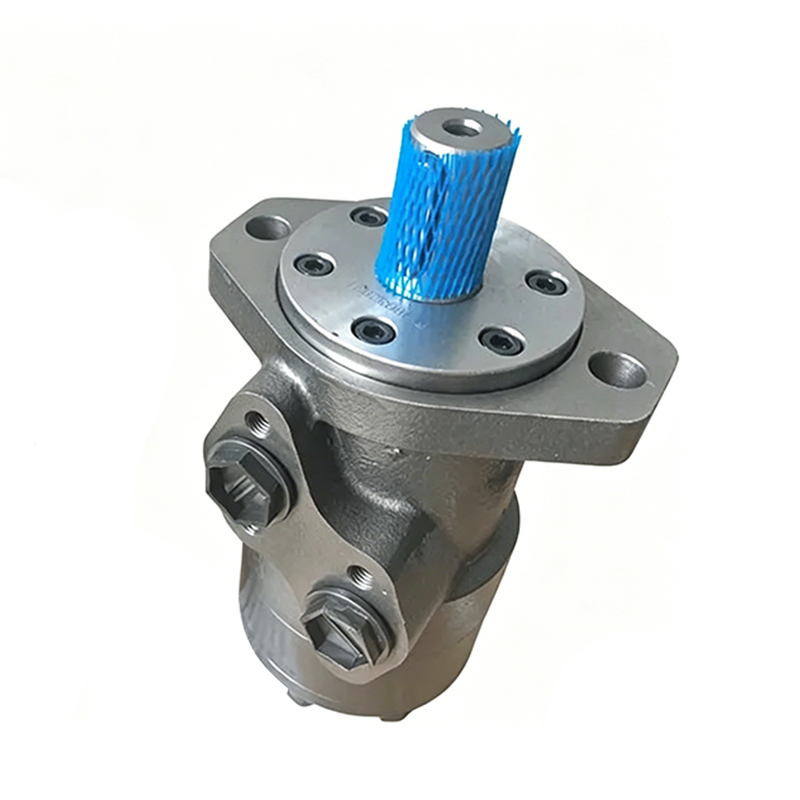

Hydraulic Winch Part Orbit Hydraulic Motor BMP (25mm/25.4mm Shaft, G1/2 Bsp Port)
Description:
Hydraulic orbit Motor is one type of high torque low speed hydraulic motors, with high efficiency and long life. BM motor has a wide speed range, high starting torque and rotating stable at high speed compact and light. It can be connected to working machine directly, adapted to all kinds of low speed heavy load facilities.

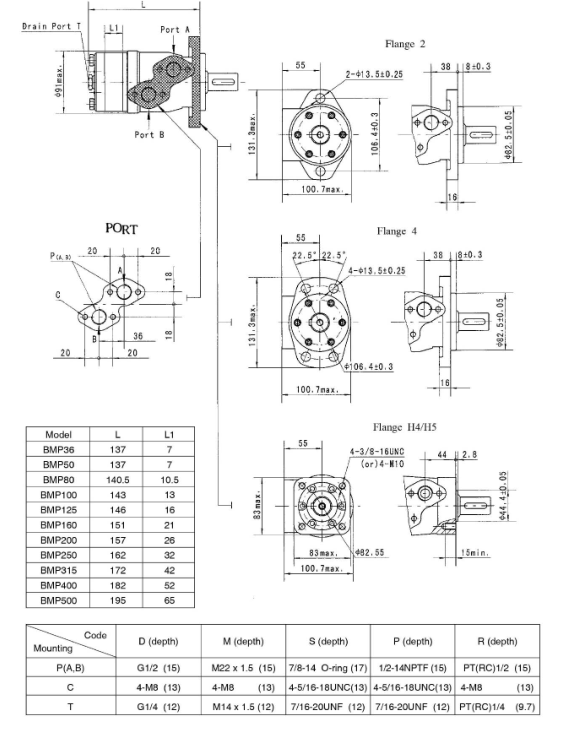

Mounting Data:
Flange:
2: 2-Ø13.5Rhomb-flange, pilot Ø82.5×8
4: 4-Ø13.5Rhomb-flange, pilot Ø82.5×8
H4: 4-3/8-16 Square-flange, pilot Ø44.4×2.8
H5: 4-M10 Square-flange, pilot Ø44.4×2.8

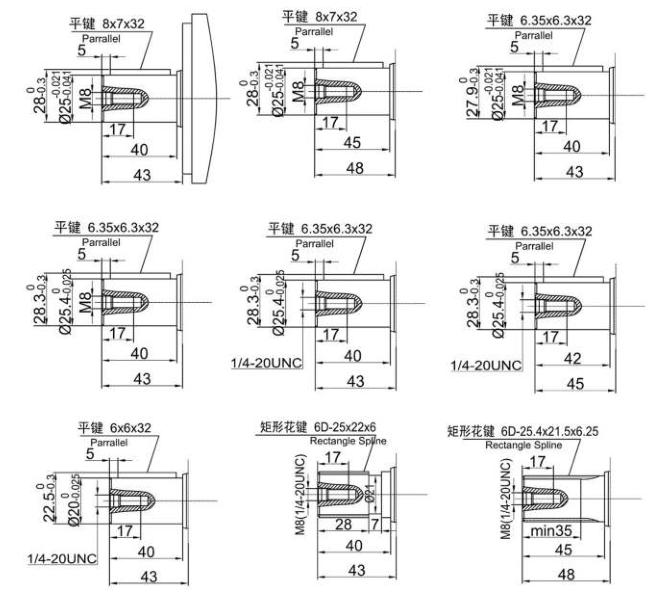

Shaft:
A: Shaft Ø25,parallel Key 8x7x32
C: Shaft Ø25.4,parallel Key 6.35x6.35x31.75
E: Shaft Ø25.4,splined tooth SAE 6B
R: Short shaft Ø25.4,parallel key 6.35x6.35x31.75
B: Shaft Ø32,parallel Key 10x8x45
F: Shaft Ø31.75,splined tooth 14-DP12/24
FD: Long shaft Ø31.75,splined tooth 14-DP12/24
G: Shaft Ø31.75,parallel Key 7.96x7.96x31.75
T: Cone-Shaft Ø28.56,parallel Key B5x5x14
Ports and Drain Port:
D: G1/2 Manifold Mount 4-M8, G1/4
M: M22×1.5 Manifold Mount 4-M8, M14×1.5
S: 7/8-14 O-ring manifold 4-5/16-18UNC, 7/16-20UNF
P: 1/2-14 NPTF Manifold 4-5/16-18UNC, 7/16-20UNF
R: PT(Rc)1/2 Manifold 4-M8, PT(Rc)1/4
Main Specifications:
Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMP BMPH BMPW 36 | BMP BMPH BMPW 50 | BMP BMPH BMPW 80 | BMP BMPH BMPW 100 | BMP BMPH BMPW 125 | BMP BMPH BMPW 160 | BMP BMPH BMPW 200 | BMP BMPH BMPW 250 | BMP BMPH BMPW 315 | BMP BMPH BMPW 400 | BMP BMPH BMPW 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
Technical data for BMP with 31.75 and 32 shaftt:
| Type | BMP BMPH 36 | BMP BMPH 50 | BMP BMPH 80 | BMP BMPH 100 | BMP BMPH 125 | BMP BMPH 160 | BMP BMPH 200 | BMP BMPH 250 | BMP BMPH 315 | BMP BMPH 400 | BMP BMPH 500 | |
Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 460 | 475 | 490 | 430 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 570 | 555 | 580 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 670 | 840 | 840 | 780 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 6 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 7 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 9.5 | 7 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 13 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.
Applications:
BMP hydraulic motors are widely applied in Agriculture machinery and Light Industry.
1. Agriculture machinery: all combine harvesters, seeders, rotary tiller, mower, sprayer, feed mixers, ground drilling machine.
2. Light industry: winding machines, textile machines, printing presses, operating with a washing machine.
| Xeriwell | M+S | EATON | ROSS | WHITE | PARKER | SAM | ||
| HYDRAULIC | HYDRAULIC | CHAR LYNN | TRW | CROSS | BREVINI | REXROTH | ||
| BMM | MM | OMM | MGX | |||||
| MLHK | J SERIES | - | - | - | BGM | |||
| BMP/BM1 | MP | OMP | MF | WP | TC | BG | MGP, GMP | |
| TE | ||||||||
| HP | H SERIES | DH | MG | RS | TB | |||
| BMR/BM2 | MR | OMR | MB | WR | BR | MGR, GMR | ||
| HR | S,T SERIES | DS | RE | TF | ||||
| MLHRW, RW | W SERIES | OMEW | ||||||
| BMH/BM4 | MH | OMH | ||||||
| MLHH | ME | |||||||
| HW, HWF | RE | TG | ||||||
| BMS/BM5 | MS, MSY | OMS | TG | MGS, GMS | ||||
| HPR | ||||||||
| MLHS | 2000 SERIES | ME | RE | |||||
| BMT/BM6 | MT | OMT | MGT, GMT | |||||
| MLHT | 6000 SERIES | MJ | HT | |||||
| MTM | TMT | |||||||
| BMV | MV | OMV | MGV, GMV | |||||
| MLHV | 10000 SERIES |
