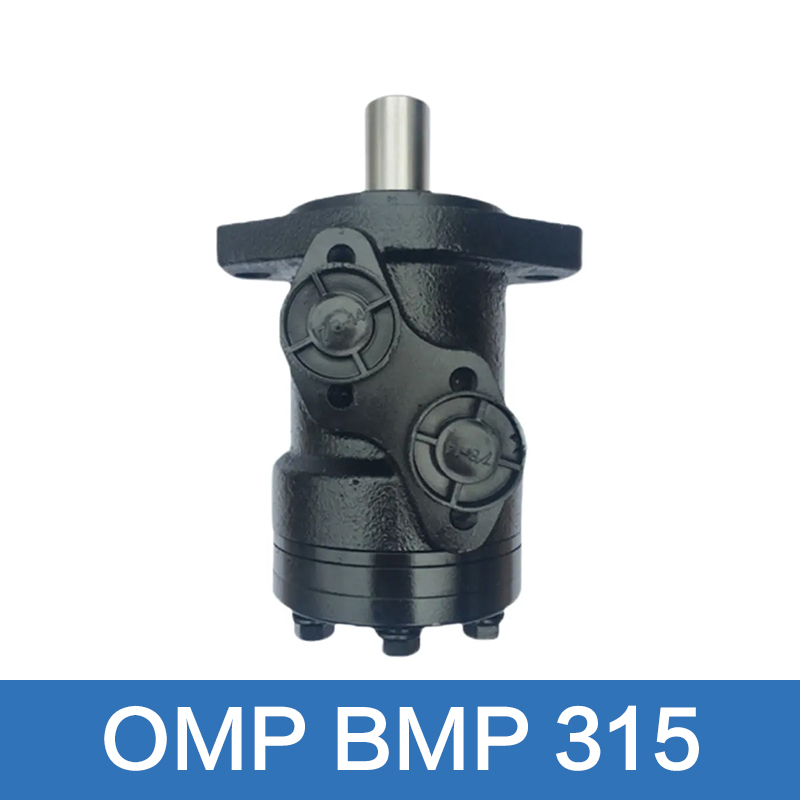

BMP OMP 315
| BMP Technical Data | ||
| Type | BMP BMPH BMPW 315 | |
| Geometric displacement(cm>/rev. | 314.5 | |
| Max.speed (rpm) | cont. | 192 |
| int. | 240 | |
| Max.torque (N ·m) | cont. | 375 |
| int. | 555 | |
| peak | 650 | |
| Max.output (kW) | cont. | 7.0 |
| int. | 8.5 | |
| Max.pressure drop (MPa) | cont. | 9 |
| int. | 14 | |
| peak | 16 | |
| Max.flow (Lmin) | cont. | 60 |
| int. | 75 | |
| Weight (kg) | 6.9 | |
| *Continuous pressure:Max.value of operating motor continuously *Intemittent pressure:Max.vaue of operating motor in 6 seconds per minute. *Peak pressure:Max.value of operating motor in 0.6 second per minute. | ||
