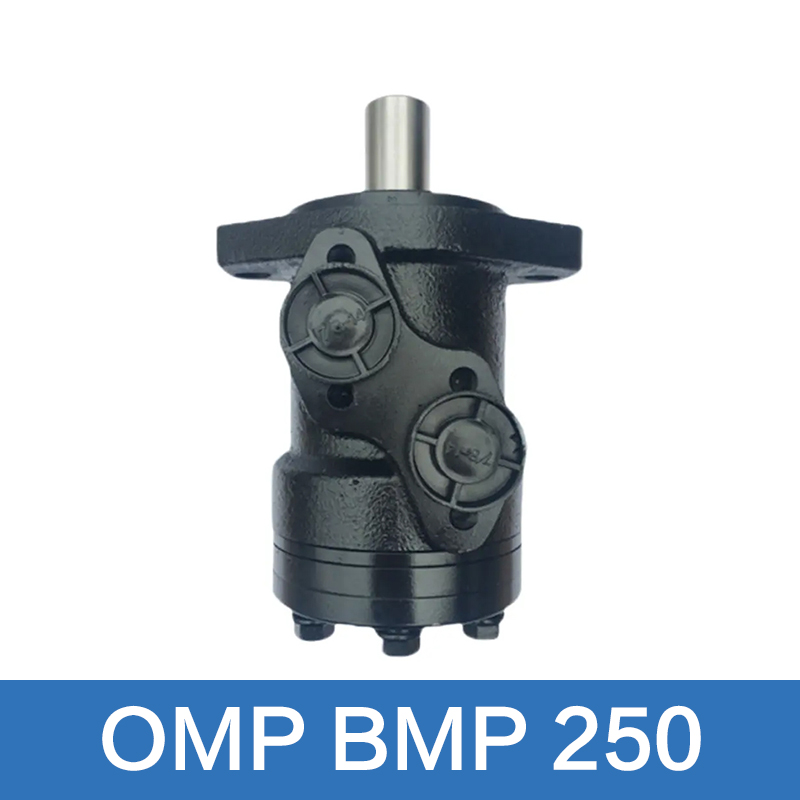

BMP OMP 250
| BMP Technical Data | ||
| Type | BMP BMPH BMPW 250 | |
| Geometric displacement(cm>/rev. | 240.3 | |
| Max.speed (rpm) | cont. | 250 |
| int. | 310 | |
| Max.torque (N ·m) | cont. | 380 |
| int. | 460 | |
| peak | 550 | |
| Max.output (kW) | cont. | 8.5 |
| int. | 10.5 | |
| Max.pressure drop (MPa) | cont. | 11 |
| int. | 14 | |
| peak | 18 | |
| Max.flow (Lmin) | cont. | 60 |
| int. | 75 | |
| Weight (kg) | 6.7 | |
| *Continuous pressure:Max.value of operating motor continuously *Intemittent pressure:Max.vaue of operating motor in 6 seconds per minute. *Peak pressure:Max.value of operating motor in 0.6 second per minute. | ||
BMP OMP 250 Orbital Hydraulic Motor catalogue pdf manual diagram
