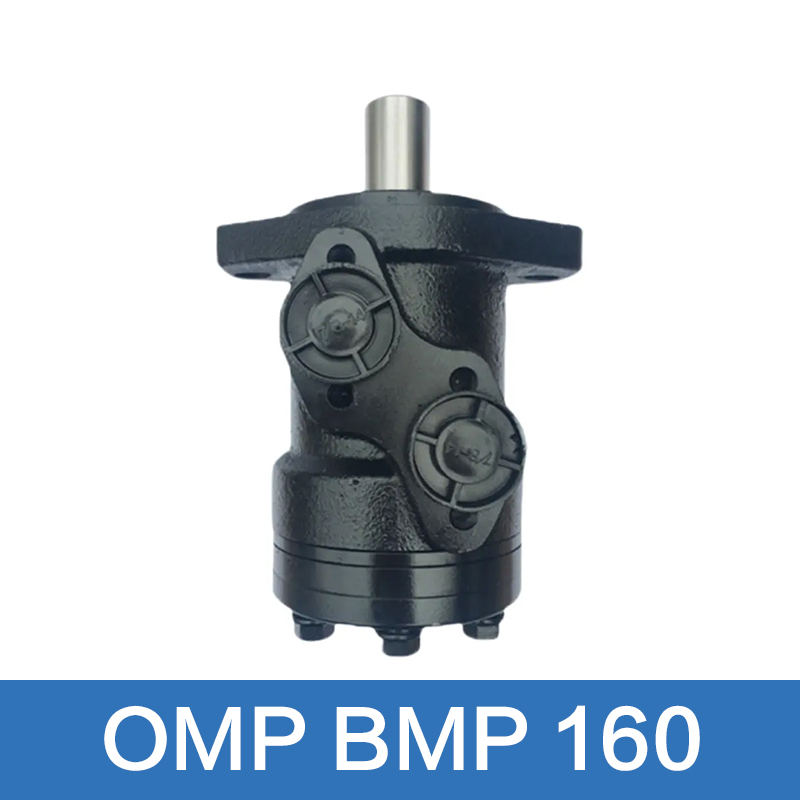

BMP OMP 160 Orbital Hydraulic Motor Sauer Danfoss

Name: BMP OMP 160 Orbital Hydraulic Motor Sauer Danfoss
Rating: 5.0 (61 reviews)

Pictures are for display only, please contact us to choose the right product for you.

BMP OMP 160 Orbital Hydraulic Motor Sauer Danfoss Product Introduction

BMP Technical Data
Type		BMP BMPH BMPW 160
Geometric displacement(cm>/rev.		157.2
Max.speed (rpm)	cont.	383
Max.speed (rpm)	int.	475
Max.torque (N ·m)	cont.	302
	int.	370
	peak	434
Max.output (kW)	cont.	10.0
Max.output (kW)	int.	12.0
Max.pressure drop (MPa)	cont.	14
	int.	17.5
	peak	22.5
Max.flow (Lmin)	cont.	60
Max.flow (Lmin)	int.	75
Weight (kg)		6.2
Continuous pressure:Max.value of operating motor continuously Intemittent pressure:Max.vaue of operating motor in 6 seconds per minute. *Peak pressure:Max.value of operating motor in 0.6 second per minute.
