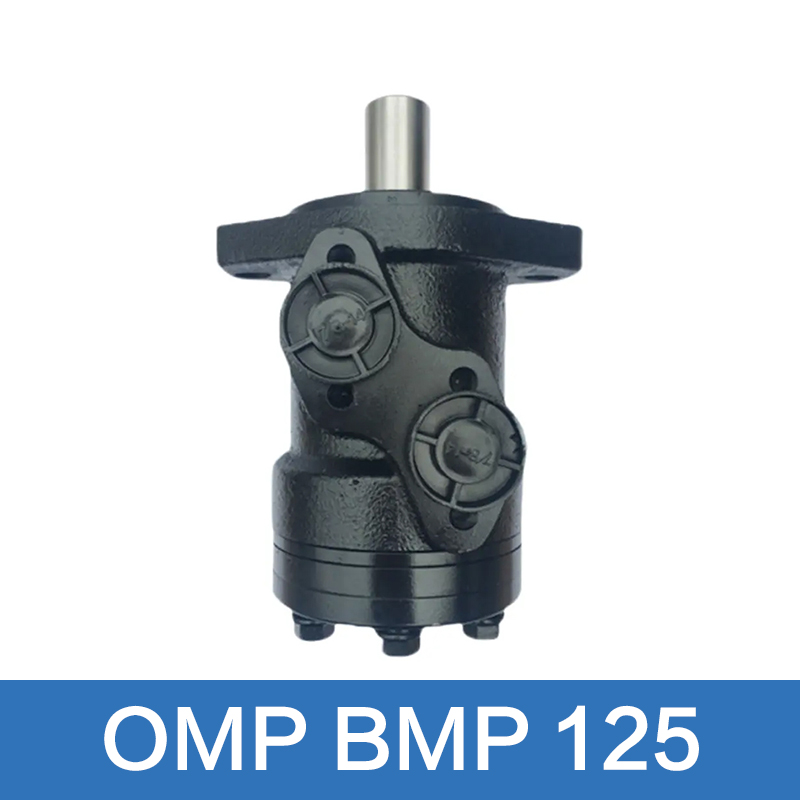

BMP OMP 125 Orbital Hydraulic Motor Danfoss

Pictures are for display only, please contact us to choose the right product for you.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • BMP OMP 125


BMP OMP 125 Orbital Hydraulic Motor Danfoss Product Introduction


BMP    Technical Data
Type BMP
BMPH
BMPW
125
Geometric displacement(cm>/rev. 120.2
Max.speed  (rpm) cont. 490
int. 615
Max.torque  (N ·m) cont. 236
int. 290
peak 360
Max.output  (kW) cont. 10.0
int. 12.0
Max.pressure
drop         (MPa)
cont. 14
int. 17.5
peak 22.5
Max.flow  (Lmin) cont. 60
int. 75
Weight (kg) 6.0
*Continuous  pressure:Max.value of operating  motor continuously
*Intemittent pressure:Max.vaue of operating motor in 6 seconds per minute.
*Peak pressure:Max.value of operating motor in 0.6 second per minute.



BMP OMP 125 Orbital Hydraulic Motor catalogue pdf manual diagram

orbital motor assembly


4123
