| Quantity: | |
|---|---|

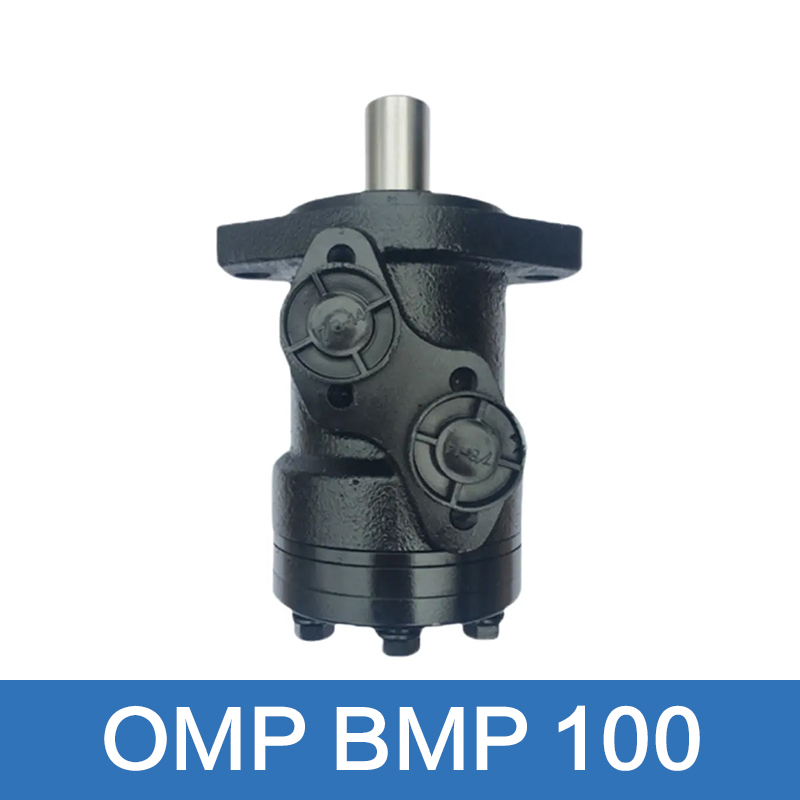

BMP OMP 100
| BMP Technical Data | ||
| Type | BMP BMPH BMPW 100 | |
| Geometric displacement(cm>/rev. | 96.2 | |
| Max.speed (rpm) | cont. | 615 |
| int. | 770 | |
| Max.torque (N ·m) | cont. | 182 |
| int. | 227 | |
| peak | 264 | |
| Max.output (kW) | cont. | 11.0 |
| int. | 13.0 | |
| Max.pressure drop (MPa) | cont. | 14 |
| int. | 17.5 | |
| peak | 22.5 | |
| Max.flow (Lmin) | cont. | 60 |
| int. | 75 | |
| Weight (kg) | 5.9 | |
| *Continuous pressure:Max.value of operating motor continuously *Intemittent pressure:Max.vaue of operating motor in 6 seconds per minute. *Peak pressure:Max.value of operating motor in 0.6 second per minute. | ||
BMP OMP 100 Orbital Hydraulic Motor catalogue pdf manual diagram
