| Quantity: | |
|---|---|
BMP
Xeriwell or Others
| Type: | HYDRAULIC MOTOR WITH BRAKE | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BMP | Power: | Hydraulic Oil |
| Displacement: | 50ml/r, 80ml/r, 100ml/r, 125ml/r, 160ml/r, 200ml/r, 250ml/r, 315ml/r, 400ml/r, 500ml/r | Weight: | 9.5 Kgs |
| Feature: | Replace HACO | Application: | Plastic, Agricultural, Forestry, Industrial, Etc. |
| Suitable For: | Zepro | ||
| Highlight: | hydraulic wheel drive motors,hydraulic track motor | ||

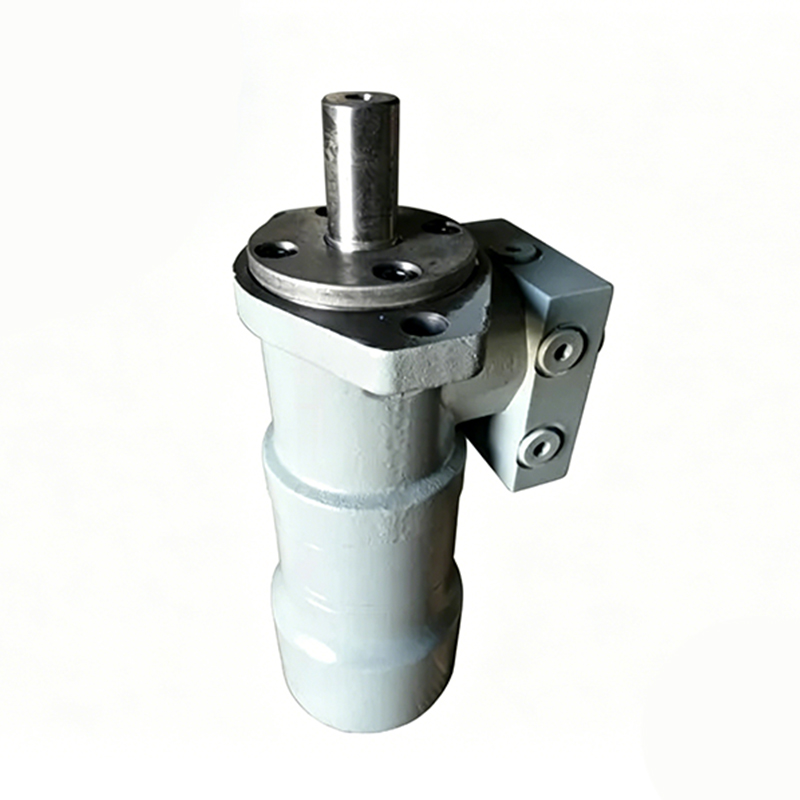

BMP HYDRAULIC MOTOR + BRAKE VALVE, ALTERNATIVE PRODUCTS OF 2014355H
This hydraulic motor is widely applicable to cranes, excavators, road sweepers, plastic machinery, petroleum machinery, mining machinery, coal mining equipment, steel rolling equipment, fishery machinery, agricultural machinery and other facilities. Our products are exported to Europe, America, South America, Africa and Southeast Asia, and have won high recognition and praise from customers both at home and abroad.

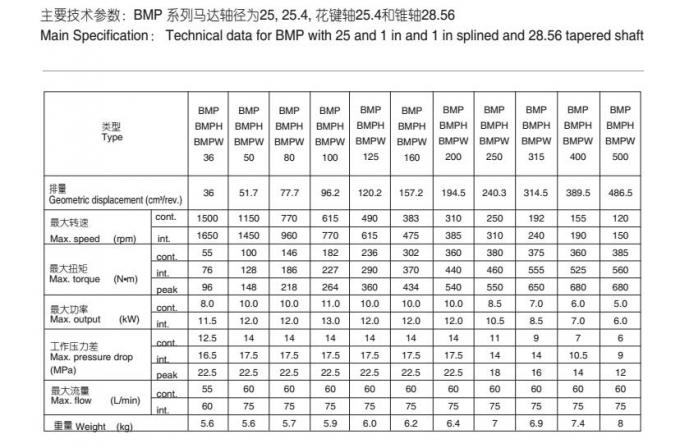

| 类型 Type | BMP BMPH BMPW 36 | BMP BMPH BMPW 50 | BMP BMPH BMPW 80 | BMP BMPH BMPW 100 | BMP BMPH BMPW 125 | BMP BMPH BMPW 160 | BMP BMPH BMPW 200 | BMP BMPH BMPW 250 | BMP BMPH BMPW 315 | BMP BMPH BMPW 400 | BMP BMPH BMPW 500 | |
| 排量 Geometric displacement (cm3/rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| 最大转速 Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| 最大扭矩 Max. torque (N•m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| 最大功率 Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| 工作压力差 Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| 最大流量 Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| 重量 Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |

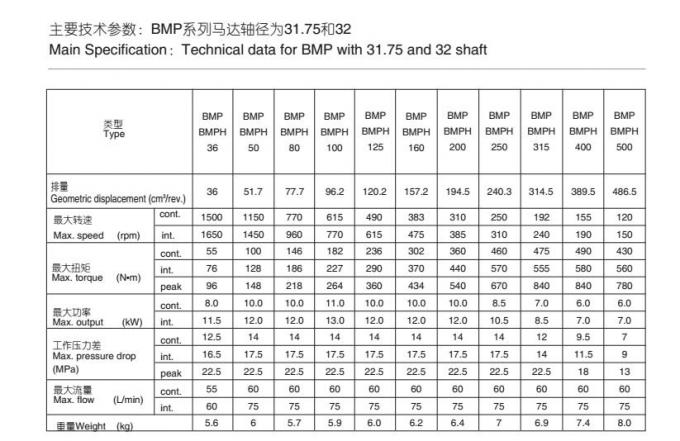

| 类型 Type | BMP BMPH 36 | BMP BMPH 50 | BMP BMPH 80 | BMP BMPH 100 | BMP BMPH 125 | BMP BMPH 160 | BMP BMPH 200 | BMP BMPH 250 | BMP BMPH 315 | BMP BMPH 400 | BMP BMPH 500 | |
| 排量 Geometric displacement (cm3/rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| 最大转速 Max. speed （rpm） | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| 最大扭矩 Max. torque （N•m） | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 460 | 475 | 490 | 430 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 570 | 555 | 580 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 670 | 840 | 840 | 780 | |
| 最大功率 Max. output （kW） | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 6 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 7 | |
| 工作压力差 Max. pressure drop （MPa） | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 9.5 | 7 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 13 | |
| 最大流量 Max. flow （L/min） | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| 重量Weight （kg） | 5.6 | 6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
Model Crossing:
| Xeriwell HYDRAULIC | M+S HYDRAULIC | EATON CHAR LYNN | ROSS TRW | WHITE CROSS | PARKER | SAM BREVINI | RECROTH | |
| BMP/BM1 | MP HP | H SERIES | OMP DH | MF MG | WP RS | TC TE TB | BG | MGP GXP |
End-flow distribution cycloidal hydraulic motor
Optimized column-mounted stator and rotor parameter design; features low starting pressure, high efficiency and stable low-speed operation
Advanced shaft seal structure with high back pressure resistance
Sophisticated and reliable connecting shaft design for prolonged service life
Precisely designed flow distribution mechanism with high flow distribution accuracy and automatic wear compensation function
The motor permits series and parallel connection; an external drain line is required for series connection
Customized roller bearing support structure provides large radial load capacity, enabling the motor to directly drive working mechanisms
Multiple optional configurations for flanges, output shafts and oil ports
Intermittent pressure refers to the maximum allowable inlet pressure; continuous operating pressure refers to the working pressure differential.
Do not operate the motor at maximum speed and maximum pressure simultaneously.
Under intermittent operating conditions, the duty cycle shall not exceed 10% per minute.
Recommended hydraulic oil: anti-wear hydraulic oil; viscosity: 37 ~ 73 cSt; oil cleanliness: ISO 18/13.
Maximum allowable working oil temperature: 80°C.
This series adopts specially imported shaft seal assemblies, with a maximum allowable back pressure up to 7 MPa. To ensure long service life and optimal overall mechanical performance, back pressure is recommended not to exceed 5 MPa. An external drain line is suggested when back pressure exceeds the recommended value.
The external drain line ensures the motor is always fully filled with hydraulic oil. Besides maintaining low back pressure, it also discharges internal wear debris and provides a certain cooling effect.
A running-in period is required before full-load operation. It is recommended to run the motor for 1 hour under 30% of the maximum working pressure.
