BMV
Xeriwell or Others
| Type: | Digger Gearbox Motor | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BMP BMR BMS BMT BMV | Speed: | 200 RPM To 1650 RPM |
| Flow: | 240 Lpm To 55 Lpm | Power: | 5.0 KW - 56 KW |
| Torque: | 55 Nm - 2400 Nm | Application: | Heavy Duty Equipment, Ag Machinery, Industrial |
| Highlight: | hydraulic rotation motor,hydraulic pump motor | ||

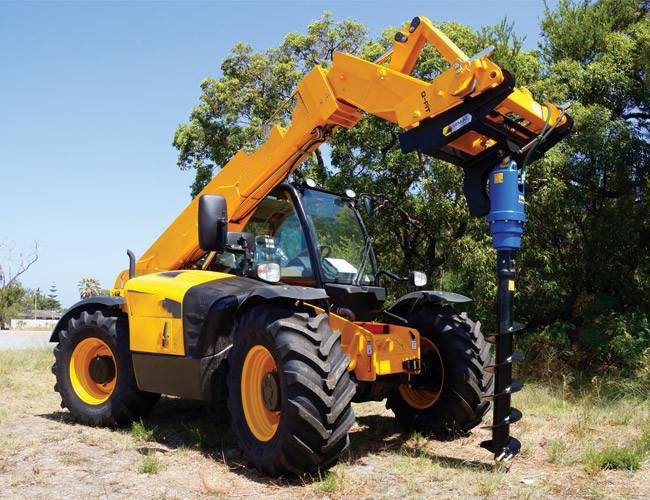

Post Hole Digger Gearbox Motor Hydraulic Motor BMP BMR BMS BMT BMV
Quick details:
we produce hydraulic motors for digging, drilling, rolling, lifting applications

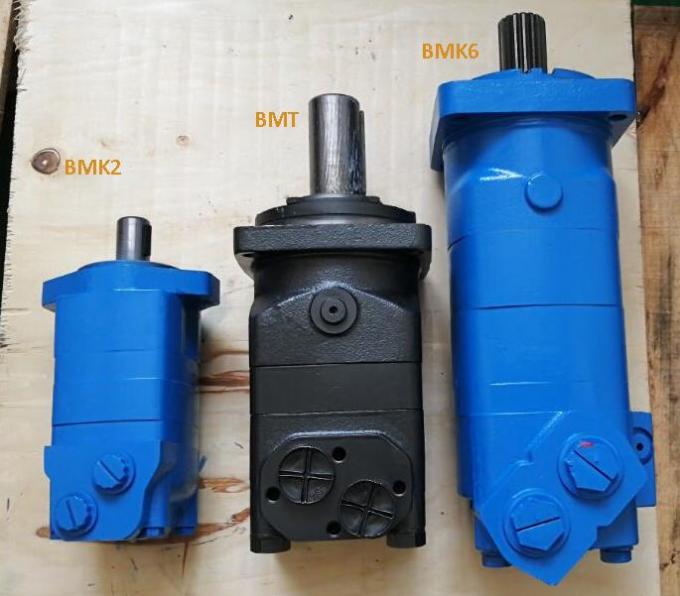

variety version available from BMM, BMP, BMR, BMH, BMS, BMT, BMV, BMK2, BMK6, BMER
variety types with same specifications with most Eaton Char-lynn, , Parker, and many more
Speed: 200 RPM to 1650 RPM
Flow: 240 Lpm to 55 Lpm
Power: 5.0 KW - 56 KW
Torque: 55 Nm - 2400 Nm
meet all application on Heavy duty equipment, Ag machinery, Industrial
Specifications:
| Specification Data of Hydraulic Motors | |||||
| Distribution type | Model | Displacement | Max. operating pressure | Speed range | Max. output power |
| (cm3/rev.) | (MPa) | (rpm) | (kW) | ||
| Axial distribution | BMM | 8-50 | 14 | 30-1950 | 3.2 |
| BMP | 36-400 | 16.5 | 30-879 | 10 | |
| BMR | 36-375 | 20 | 30-970 | 15 | |
| BMH | 200-500 | 20 | 30-430 | 17 | |
| Specification Data of Hydraulic Motor | |||||
| Distribution type | Model | Displacement | Max. operating pressure | Speed range | Max. output power |
| (cm3/rev.) | (MPa) | (rpm) | (kW) | ||
| Disc distribution | BMS | 80-475 | 22.5 | 30-800 | 24 |
| BMT | 160-800 | 24 | 30-705 | 35 | |
| BMV | 315-800 | 28 | 10-446 | 43 | |
Features:
This digger motor is a Low speed high torque one, widely used for lifting, windling, load handling, delivery and many more power transmission applications.
From big to small, multi types, sizes, key and shaft available, save valuable space, High torque, High power transmission, long life under extreme operation conditions.
Displacement from 36ml/r to 1000ml/r, speed from 200RPM to 1650RPM, flow from 55Lpm to 240Lpm, working pressure from 9MPa to 30MPa, torque from 55N*M to 2400N*M.
Our motors interchangeable with most common brands and models of domestic and other European manufactures, simialr performance more moderate prices.
Applications:

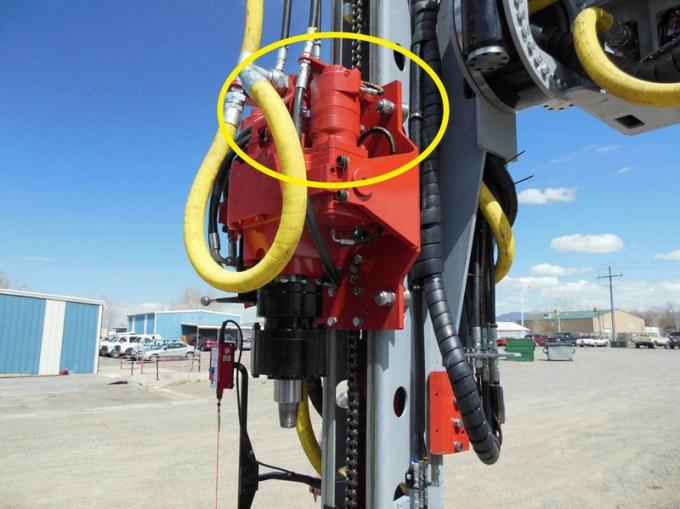

The hydraulic motor we are manufacturing is orbital type motors, can be widely used on mining, drilling equipment build, repair and maintenance, like rock drill rig, multipurpose drill rig, coring investigation drill rig, soil investigation drill rig, piling grouting drill rig, jet grounting drill rig, water well drill rig.
