BMM32 / BMM50 Small Hydraulic Motor | Low Vibration & Smooth Running for Underwater Ship Cleaning Equipment

BMM32 / BMM50 Small Hydraulic Motor | Low Vibration & Smooth Running for Underwater Ship Cleaning Equipment

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
BMM Motor
Brand:
Xeriwell or Others

Product Description

Features:	OMM / MM Motors	Product Name:	Small Hydraulic Motors BMM
Brand Name:	Xeriwell	Model Number:	BMM / MM / EATON J Series OMM Motor
Displacement:	8cc,12cc,20cc,32cc,40cc,50cc	Application:	Brush Cutters Mower Forestry Equipment
Highlight:	mini hydraulic motor , omm hydraulic motor

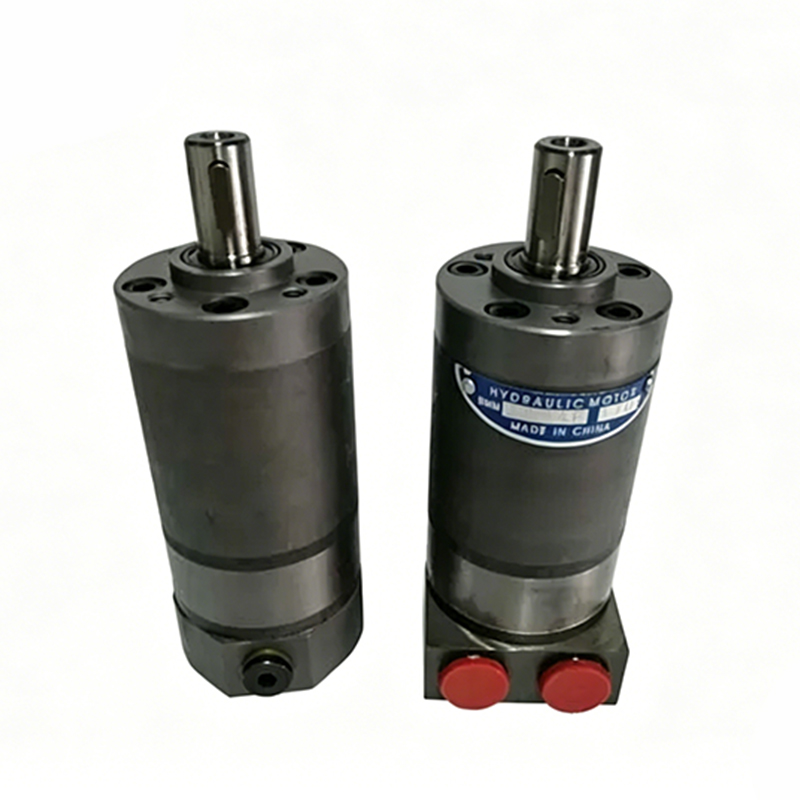

Small Hydraulic Motors BMM 32 / BMM 50 For Ship Cleaning Underwater

1. Characteristic Features

► It adapts the gerolor design, which has a higher distribution accuracy and Mechanical efficiency.

► Rolling bearing design, which has a greater lateral load capacity.

► Credible design of shaft seal, which can bear higher pressure and be used in parallel or in series.

► Direction of shaft rotation and speed can be controlled easily and smoothly.

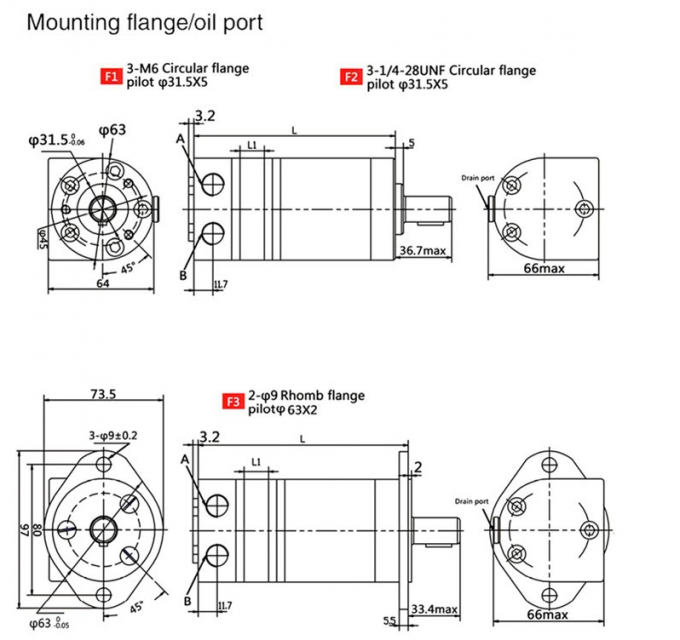

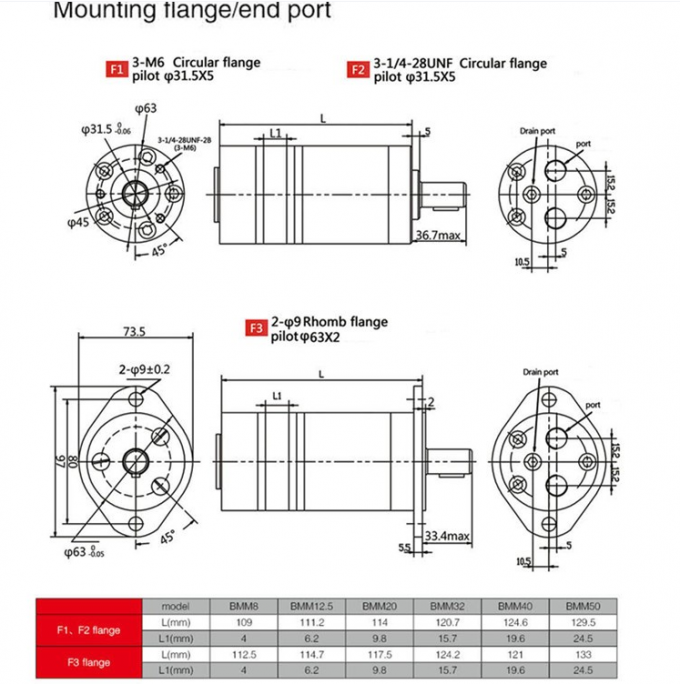

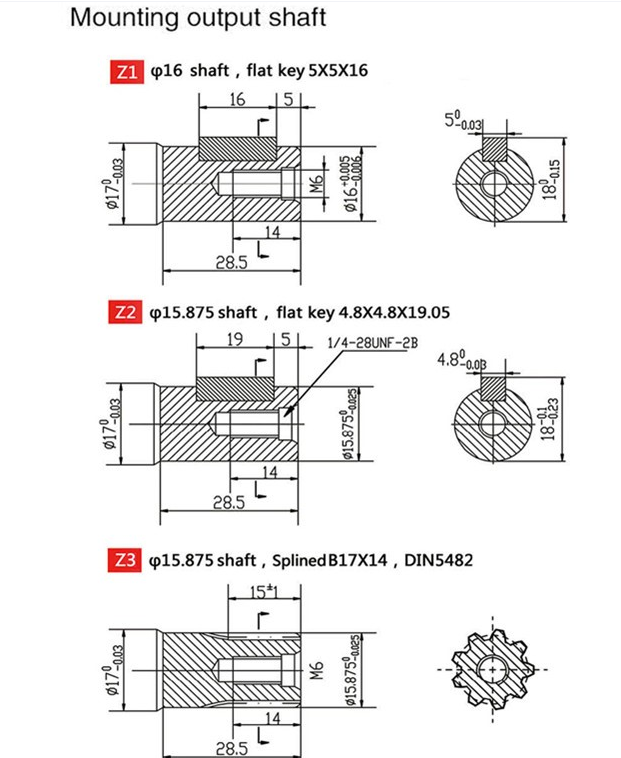

► A variety of connection types of flange, output shaft and oil port.

2. Specification

Xeriwell	BMM
M+S	MM
EATON	J Series
	OMM

Type		BMM8	BMM12	BMM20	BMM32	BMM40	BMM50
displacement		8.2	12.9	19.9	31.6	39.8	50.3
Max speed(rpm)	rated	1537	1256	814	513	452	358
	Cont.	1950	1550	1000	630	500	400
	int.	2450	1940	1250	800	630	500
Max Torque (N*M)	rated	8	13	19	31	37	33
	Cont.	11	16	25	40	45	46
	int.	15	23	35	57	70	88
	peak	21	33	51	64	82	100
Max speed (kw)	rated	1.3	1.7	1.7	1.7	1.7	1.2
	Cont.	1.8	2.4	2.4	2.4	2.2	1.8
	int.	2.6	3.2	3.2	3.2	3.2	3.2
Max pressure drop(MPa)	rated	9	9	9	9	8.5	6
	Cont.	10	10	10	10	9	7
	int.	14	14	14	14	14	14
	peak	20	20	20	16	16	16
Max flow(L/min)	rated	14	18	18	18	20	20
	Cont.	18	20	20	20	20	20
	int.	20	25	25	25	25	25
Weight(kg)		1.9	2	2.1	2.2	2.3	2.4
