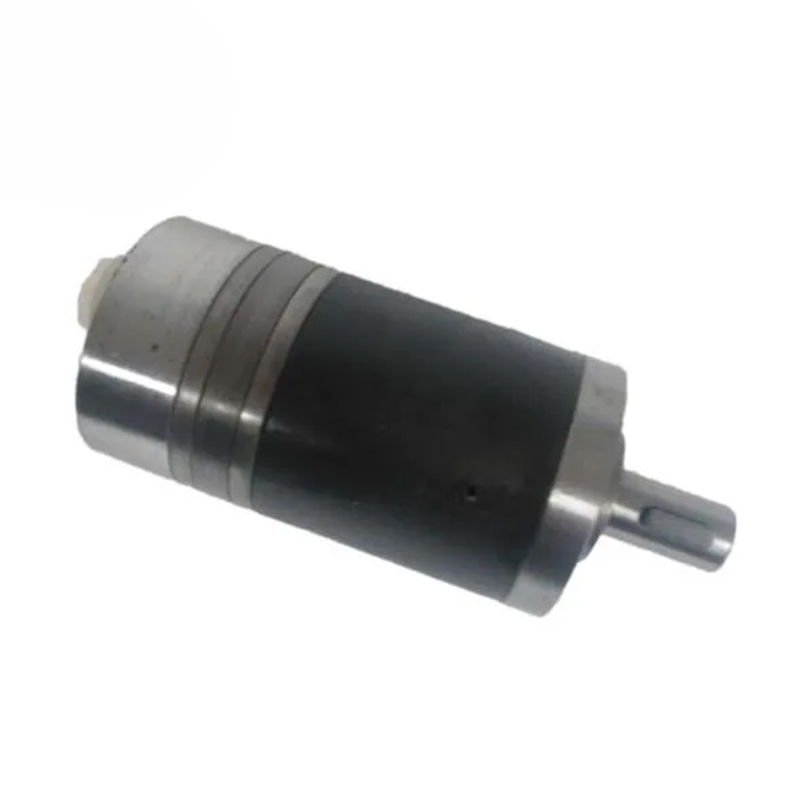

BMM 20 Hydraulic Orbital Motor
Xeriwell or Others
| Features: | Small Size, Compact Structure, High Torque, Clockwise & Counterclockwise, Long Life | Product Name: | Hydraulic Orbital Motor |
|---|---|---|---|
| Displacement: | 8, 12.5, 20, 32, 40, 50 | Applications: | Agricultural Machine, Transportation, Construction Equipment, Metallurgical, Marine, Etc. |
| Replacement: | OMM, Eaton J, M+S MM Etc | Model Number: | BMM |
| Highlight: | mini hydraulic motor,compact hydraulic motor | ||
Small Hydraulic Motors BMM 20 Power Station, Strawberry harvesters
BMM series motor are small volume,economical type,which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume,high power and low weigth.
Characteristic features:
* Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life.
* Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
* Advanced construction design, high power and low weight.
Main specification
| type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max Torque (N*M) | rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max speed (kw) | rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max pressure drop(MPa) | rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
| MOTOR CROSS REFERENCE TABLE | ||||||||
| Xeriwell HYDRAULIC | M+S HYDRAULIC | EATON CHAR LYNN | ROSS TRW | WHITE CROSS | PARKER | SAM BREVINI | RECROTH | |
| BMM | MM MLHK | J SERIES | OMM | BGM | MGX | |||
| BMP/BM1 | MP HP | H SERIES | OMP DH | MF MG | WP RS | TC TE TB | BG | MGP GXP |
| BMR/BM2 | MR HR MLHRW,RW | S,T SERIES W SERIES | OMR DS OMEW | MB | WR RE | TF | BR | MGR GMR |
| BMH/BM4 | MH MLHH HW HWF | OMH | ME | RE | TG | |||
| BMS/BM5 | MS MSY MLHS | 2000 SERIES | OMS | ME | RE | TG | HPR | MGS GMS |
| BMT/BM6 | MT MLHT MTM | 6000 SERIES | OMT TMT | MJ | HT | MGT,GMT | ||
| BMV | MV MLHV | 10000 SERIES | OMV | MGV GMV | ||||
Applications :
Strawberry harvesters
grape harvesters
potato harvesters
other agricultural harvesters
road sweeper
