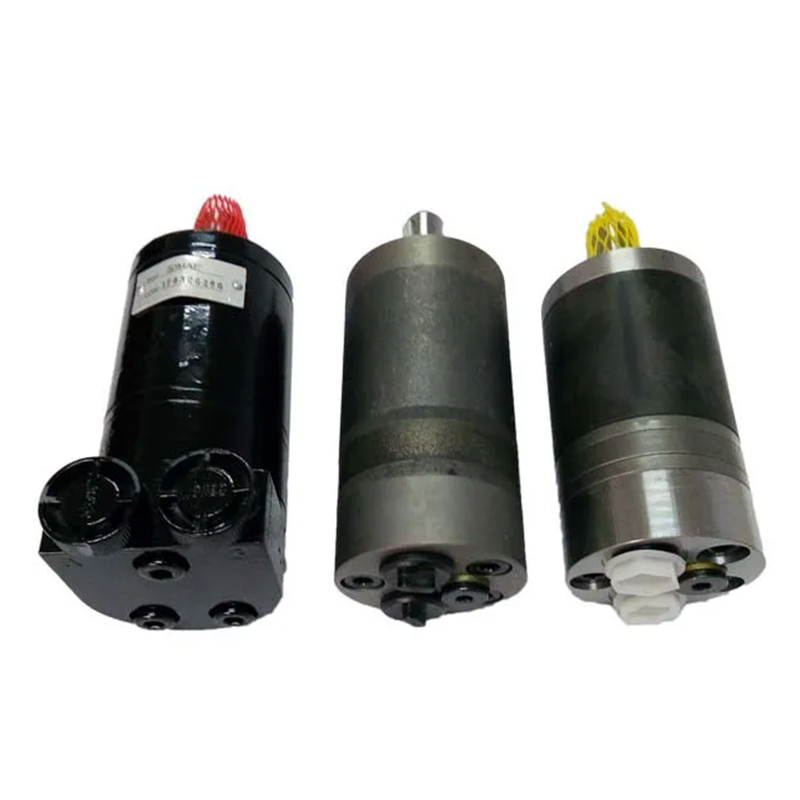

BMM Series Compact Orbital Hydraulic Motor for Agricultural Machinery

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
BMM
Brand:
Xeriwell or Others

Product Description

Type:	Compact Hydraulic Motor	Structural:	Mini Hydraulic Motors
Flow Distribution:	Axial Distribution Type	Rotation Direction:	Forward&Reverse
Shaft Type:	Parallel Key/Involute Key Shaft	Flange Type:	Circle-flange/Rhomb-flange
Highlight:	mini hydraulic motor , omm hydraulic motor

Mini Hydraulic Motors, Micro Hydraulic Motors, Small Hydraulic Motors

Descriptions:

BMM series mini hydraulic motor are small volume, economical type, which is designed with shaft distribution flow, whichadapt the Gerotor gear set design and provide compact volume, high power and low weigt.

Characteristic features:

1. Intermittent means the entrance of the maximum pressure;continuous working pressure means the differential pressure.

2. The running time should not exceed 10% under interoittent working conditions.

3. The maximum working temperature is 80°.

4. The maximum allowable back pressure is 10MPa,but the recommended back pressure should not exceed 5MPa.a leaking pipes is needed when exceeding.

Applications:

The Small motor have widely applications, such as the following:

1. Construction equipment

2. Agricultural equipment

3. Material handling & Lifting equipment

4. Forestry equipment

5. Lawn and turf equipment

6. Special purpose

7. Machine tools and stationary equipment

8. Marine equipment

Main Specifications:

Type		BMM8	BMM12	BMM20	BMM32	BMM40	BMM50
displacement		8.2	12.9	19.9	31.6	39.8	50.3
Max speed(rpm)	rated	1537	1256	814	513	452	358
	Cont.	1950	1550	1000	630	500	400
	int.	2450	1940	1250	800	630	500
Max Torque (N*M)	rated	8	13	19	31	37	33
	Cont.	11	16	25	40	45	46
	int.	15	23	35	57	70	88
	peak	21	33	51	64	82	100
Max speed (kw)	rated	1.3	1.7	1.7	1.7	1.7	1.2
	Cont.	1.8	2.4	2.4	2.4	2.2	1.8
	int.	2.6	3.2	3.2	3.2	3.2	3.2
Max pressure drop(MPa)	rated	9	9	9	9	8.5	6
	Cont.	10	10	10	10	9	7
	int.	14	14	14	14	14	14
	peak	20	20	20	16	16	16
Max flow(L/min)	rated	14	18	18	18	20	20
	Cont.	18	20	20	20	20	20
	int.	20	25	25	25	25	25
Weight(kg)		1.9	2	2.1	2.2	2.3	2.4

* Continuous pressure:Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

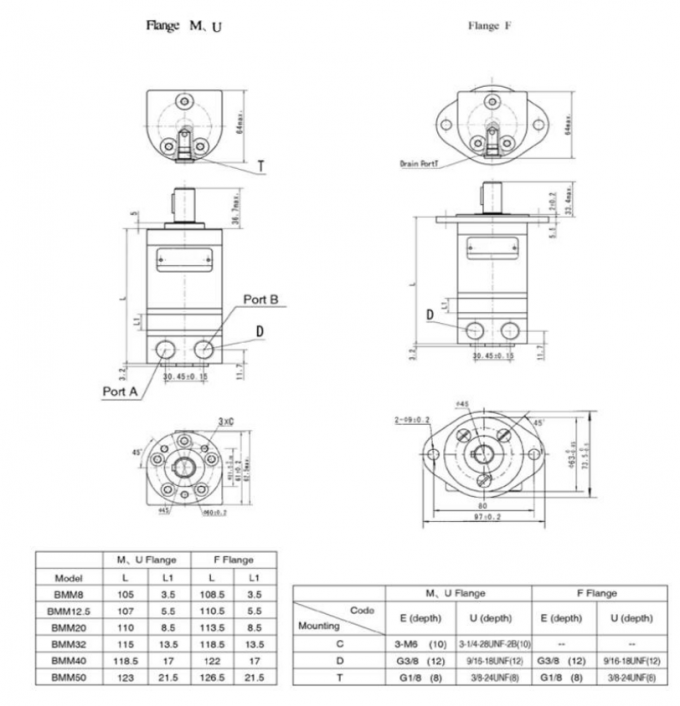

End Port:
