| Quantity: | |
|---|---|
BMM
Xeriwell or Others
| Features: | High Speed Hydraulic Motor | Products Name: | Hydraulic Orbital Motor |
|---|---|---|---|
| Shaft Size: | 16mm | Displacement: | 8cc, 12.5cc, 20cc, 32cc, 40cc, 50cc |
| Warranty: | 12-18 Months | Application: | Heavy Equipments, Construction Machines, Mining Machines, Agricutural Machines And Industrial Machines Etc. |
| Highlight: | mini hydraulic motor,compact hydraulic motor | ||

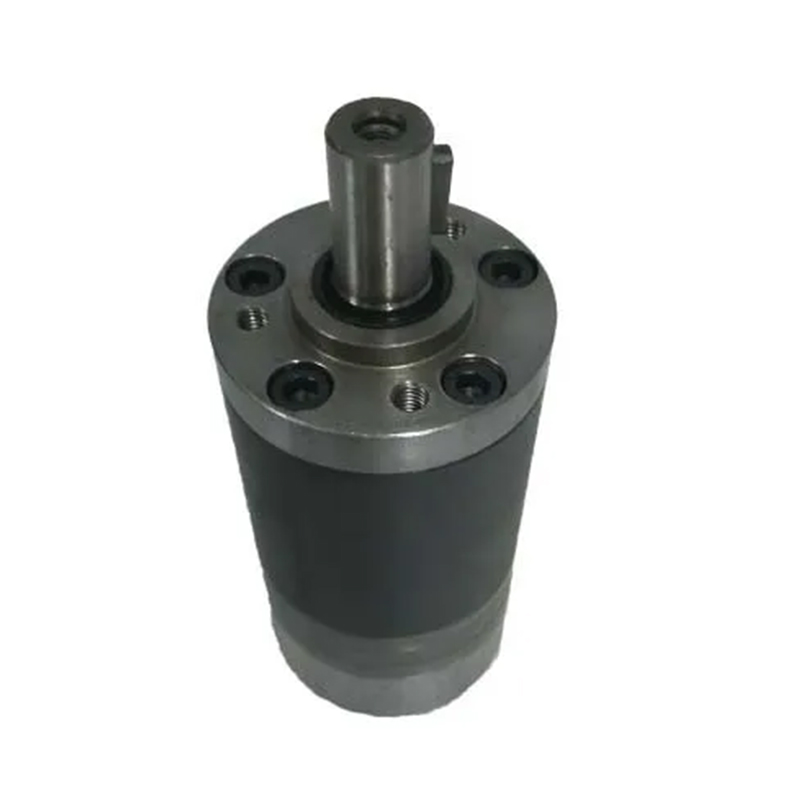

Mini Hydraulic Motors BMM / OMM G 3/8’’ High Speed In Mining , Sweepers , Harvesters
1. Features:
1. Intermittent means the entrance of the maximum pressure;continuous working pressure means the differential pressure.
2. Motor should not work under the highest pressure and the maximum speed.
3. The running time should not exceed 10% under interoittent working conditions
4. The maximum working temperature is 80°.
5. The maximum allowable back pressure is 10MPa,but the recommended back pressure should not exceed 5MPa.a leaking pipes is needed when exceeding.
6. One hour running time under 40% of maximum working pressure is recommended before full capacity working.
7. Recommending N68 anti-wear hydraulic oil,viscosity37-73cSt,cleanliness ISO18/13.
2. Main specification
| type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max Torque (N*M) | rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max speed (kw) | rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max pressure drop(MPa) | rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
| Type | Max.inlet pressure | |
| BMM8-50 | Cont. | 17.5 |
| (Mpa) | Int. | 22.5 |
3. Xeriwell Hydraulic Orbit Motor Applications:
These hydraulic motors are extensively fitted to industrial & road sweepers, refuse trucks, farm tractors, combine harvesters, lawn mowers, general agricultural machinery, construction equipment, conveyor systems and concrete mixers.
BMM series orbital hydraulic motors enjoy broad applications across plastic processing machinery, hoisting equipment, construction & mining machinery, metallurgical equipment, shipbuilding machines, petrochemical facilities and port machinery.
