bmm20

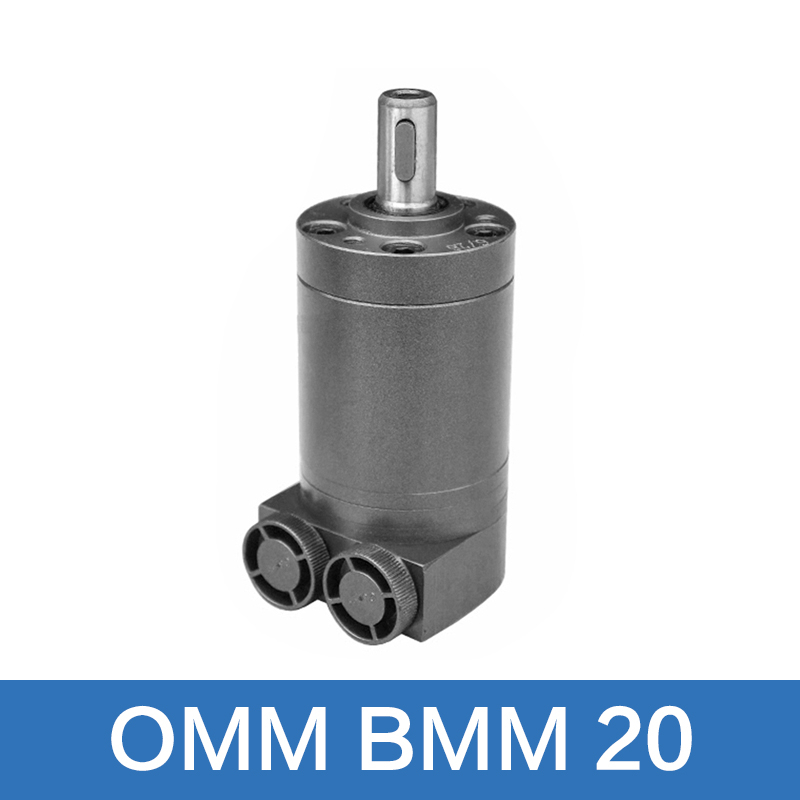

BMM Hydraulic Orbit Motor
| Type | Geometric displacement (cm3 /rev.) | Max. speed (rpm) | Max. torque (N•m) | Max. output (kW) | Max. pressure drop (MPa) | Max. flow (L/min) | Weight (kg) | |
| BMM 20 | 19.9 | cont. | 1000 | 25 | 2.4 | 10 | 20 | 2.1 |
| int. | 1250 | 35 | 3.2 | 14 | 25 | |||
| peak | -- | 51 | -- | 20 | -- |
* Continuous pressure:Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
BMM Hydraulic Orbit Motor
| Type | Geometric displacement (cm3 /rev.) | Max. speed (rpm) | Max. torque (N•m) | Max. output (kW) | Max. pressure drop (MPa) | Max. flow (L/min) | Weight (kg) | |
| BMM 20 | 19.9 | cont. | 1000 | 25 | 2.4 | 10 | 20 | 2.1 |
| int. | 1250 | 35 | 3.2 | 14 | 25 | |||
| peak | -- | 51 | -- | 20 | -- |
* Continuous pressure:Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
