bmm12.5
Xeriwell or Others

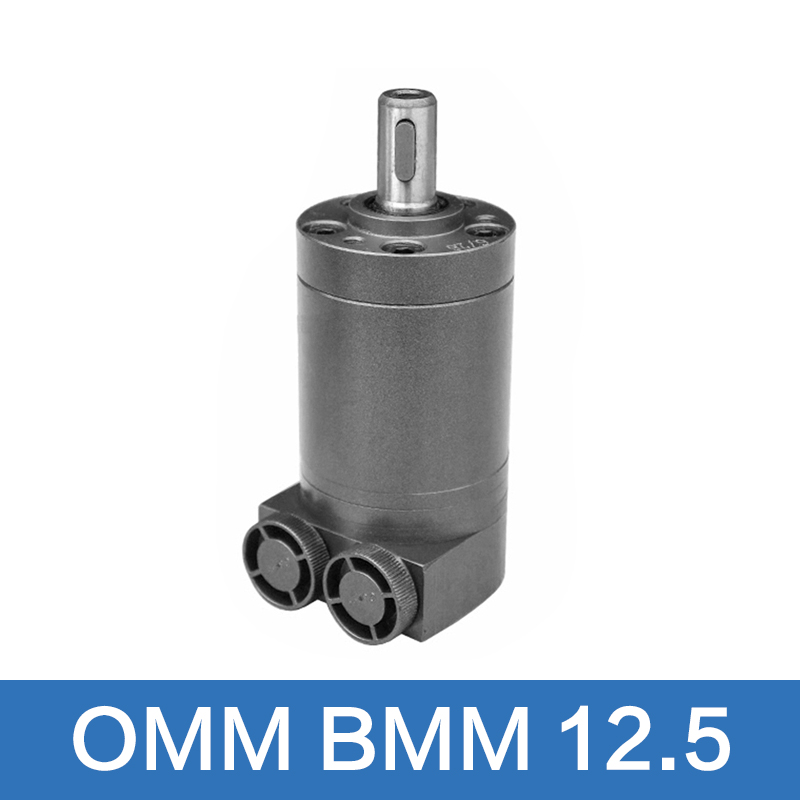

BMM OMM 12.5 orbital hydraulic motor is a small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume. high power and low weigth
Characteristic features:
1 , Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life.
2, Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
3, Advanced construction design, high power and low weight.
Type:
bmm8 bmm12.5 bmm20 bmm32 bmm40 bmm50
omm8 omm12.5 omm20 omm32 omm40 omm50
Main Specification:
| Geometric displacement (cm3/rev.) | 12.9 | |
| Max. speed (rpm) | cont. | 1550 |
| int. | 1940 | |
| Max. torque (N•m) | cont. | 16 |
| int. | 23 | |
| peak | 33 | |
| Max. output (kW) | cont. | 2.4 |
| int. | 3.2 | |
| Max. pressure drop(MPa) | cont. | 10 |
| int. | 14 | |
| peak | 20 | |
| Max. flow (L/min) | cont. | 20 |
| int. | 25 | |
| Weight (kg) | 2 | |
| Max.inlet pressure | cont. | 17.5 |
| int. | 22.5 | |
BMM OMM 12.5 Orbital Hydraulic Motor catalogue pdf manual diagram
| Type | BMM 8 | BMM 12.5 | BMM 20 | BMM 32 | BMM 40 | BMM 50 | |
| Geometric displacement (cm3/rev.) | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max. speed (rpm) | cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max. torque (N•m) | cont. | 11 | 16 | 25 | 40 | 45 | 46 |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max. output (kW) | cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max. pressure drop (MPa) | cont. | 10 | 10 | 10 | 10 | 9 | 7 |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max. flow (L/min) | cont. | 16 | 20 | 20 | 20 | 20 | 20 |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight (kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
| * Continuous pressure:Max. value of operating motor continuously. * Intermittent pressure:Max. value of operating motor in 6 seconds per minute. * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||
| Type | Max.inlet pressure | |
| BMM8-50 (MPa) | cont. | 17.5 |
| int. | 22.5 | |
