| Quantity: | |
|---|---|
BMM 8
Xeriwell or Others
| Features: | Same As Eaton M+S | Product Name: | Hydraulic Motor BMM 8 |
|---|---|---|---|
| Model Numbe: | BMM 8 | Brand Name: | Xeriwell |
| Displacement: | 8cc, 12.5cc, 20cc, 32cc, 40cc, 50cc | Applications: | Agricultural, Forestry, Marine, Construction, Ground Care, Industrial, ... |
| Highlight: | large hydraulic motor,hydraulic lift motor | ||

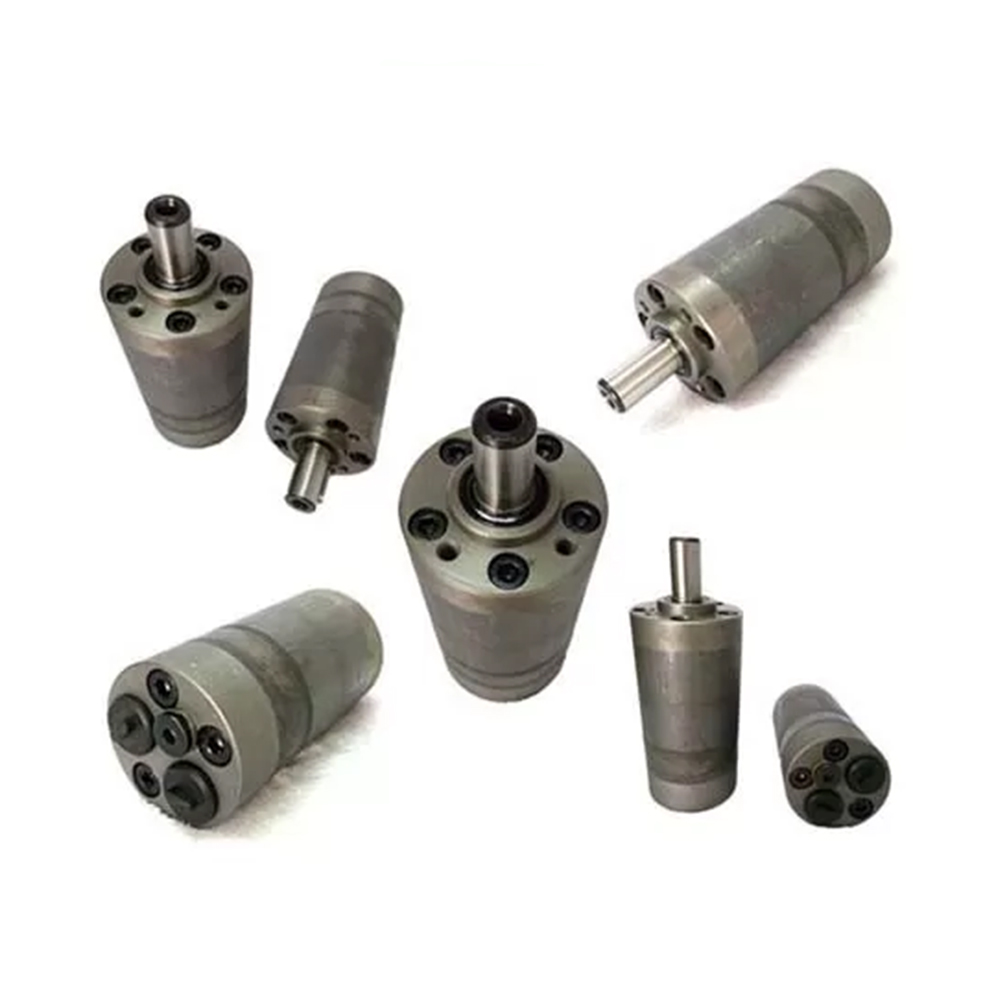

Hydraulic Drive Motor BMM 8 Series Have A Spool Valve: The Distribution Valve Is Integrated In The Output Shaft.
1) Intermittent operation: the permissible values may occur for max. 10% of every minute.
2) Peak load: the permissible values may occur for max. 1% of every minute.
3) Operation by lower speeds may be slightly less smooth.
OPTIONS:
Model - Disc valve, roll-gerotor;
Flange and wheel mount;
Short motor;
Tacho connection;
Speed sensor connection;
Side and rear ports;
Shafts - straight, splined and tapered;
Metric and BSPP ports;
Other special features.
Main Specifications:
| Type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max Torque (N*M) | rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max speed (kw) | rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max pressure drop(MPa) | rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
BMM Side Port Dimension and Mounting Data
Applications:
BMM Hydraulic Motor apply to indoor and outdoor sweeper, like Hako, Karchrs, Dulevo, Comac, Tennante, etc.
| M、U Flange | F Flange | |||
| Model | L | L1 | L | L1 |
| BMM8 | 105 | 3.5 | 108.5 | 3.5 |
| BMM12.5 | 107 | 5.5 | 110.5 | 5.5 |
| BMM20 | 110 | 8.5 | 113.5 | 8.5 |
| BMM32 | 115 | 13.5 | 118.5 | 13.5 |
| BMM40 | 118.5 | 17 | 122 | 17 |
| BMM50 | 123 | 21.5 | 126.5 | 21.5 |
| M、U Flange | F Flange | |||
| Mounting Code | E（depth） | U（depth） | E（depth） | U（depth） |
| C | 3-M6 （10） | 3-1/4-28UNF-2B(10) | -- | -- |
| D | G3/8 （12） | 3/16-18UNF(12) | G3/8 （12） | 3/16-18UNF(12) |
| T | G1/8 （8） | 3/8-24UNF(8) | G1/8 （8） | 3/8-24UNF(8) |
