BMM 20 Cc / R Cylindrical 16mm Orbit Hydraulic Motor For Fruit Harvester Parts
You are here: Home » Products » Hydraulic Motor » Ungrouped » BMM 20 Cc / R Cylindrical 16mm Orbit Hydraulic Motor For Fruit Harvester Parts

loading

BMM 20 Cc / R Cylindrical 16mm Orbit Hydraulic Motor For Fruit Harvester Parts

Pictures are for display only, please contact us to choose the right product for you.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

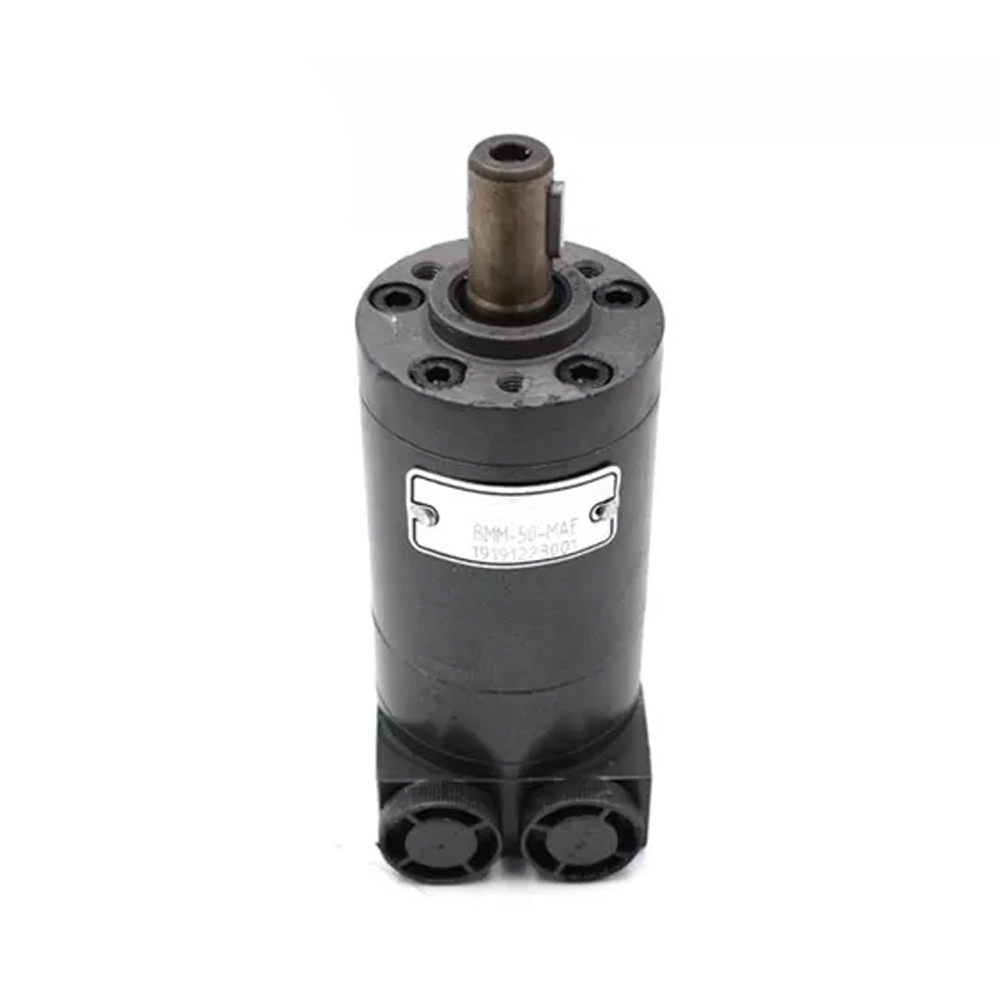

  • BMM-50-MAE

  • Xeriwell or Others

Item: Fruit Harvester Parts Type: Orbit Motor
Direction: Left And Right Displacement: 8cc - 50cc
Fit: Fruit Harvester Plant Used For: Hydraulic System
Highlight:

cycloid hydraulic motor

,

hydraulic rotary motor


Motor Orbital BMM 20 cc / r Cylindrical 16mm for Fruit Harvester Parts Manufacturer, Hydraulic system parts

BMM-50-MAE, This motor can be used for new designs of transmission and rotary filling systems

Main Specifications:

type BMM8 BMM12 BMM20 BMM32 BMM40 BMM50
displacement 8.2 12.9 19.9 31.6 39.8 50.3
Max speed(rpm) rated 1537 1256 814 513 452 358
Cont. 1950 1550 1000 630 500 400
int. 2450 1940 1250 800 630 500
Max Torque
(N*M)
rated 8 13 19 31 37 33
Cont. 11 16 25 40 45 46
int. 15 23 35 57 70 88
peak 21 33 51 64 82 100
Max speed
(kw)
rated 1.3 1.7 1.7 1.7 1.7 1.2
Cont. 1.8 2.4 2.4 2.4 2.2 1.8
int. 2.6 3.2 3.2 3.2 3.2 3.2
Max pressure
drop(MPa)
rated 9 9 9 9 8.5 6
Cont. 10 10 10 10 9 7
int. 14 14 14 14 14 14
peak 20 20 20 16 16 16
Max flow(L/min) rated 14 18 18 18 20 20
Cont. 18 20 20 20 20 20
int. 20 25 25 25 25 25
Weight(kg) 1.9 2 2.1 2.2 2.3 2.4

Type
Max.inlet pressure
BMM8-50 Cont. 17.5
(Mpa) Int. 22.5

Introduce "mandatory" products for each distributor of fruit farming equipment!

This motor can be used for new designs of transmission and rotary filling systems

The labor-saving harvester needs this labor-saving hydraulic motor with high speed and low torque. The speed of the motor can be adjusted by the hydraulic valve to control the flow according to the working occasion, thereby adjusting the working efficiency. Fully automatic steering, independent steering function, the living room is completed with automatic transmission, used for the movement of all boxes

The fruit can be put into the container at a uniform rotation speed to avoid any type of stroke and scratch between the fruits.

Fruit is transmitted at a very uniform speed

Its design lifts the fruit, downloads and places it on the top of the pallet through a rotating system, without causing any damage.

This motor rotates 360 degrees, can be left or right, allowing the front and back walls to rotate 180°, which helps to enter the fruit in the queue

Spare parts for FRUIT HARVESTING SELF-PROPELLED PLATFORM

Hydraulic
