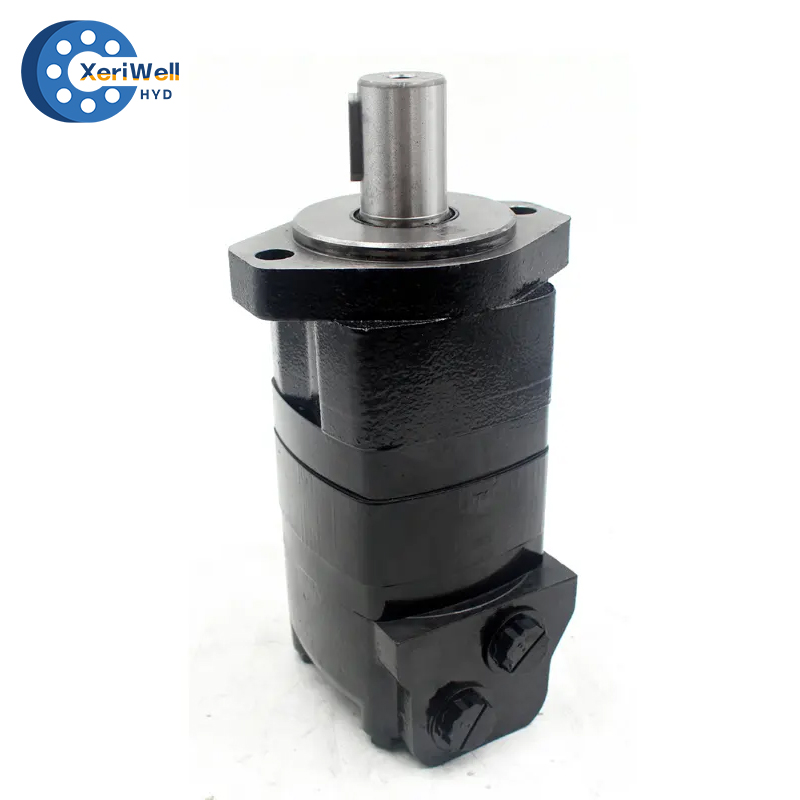

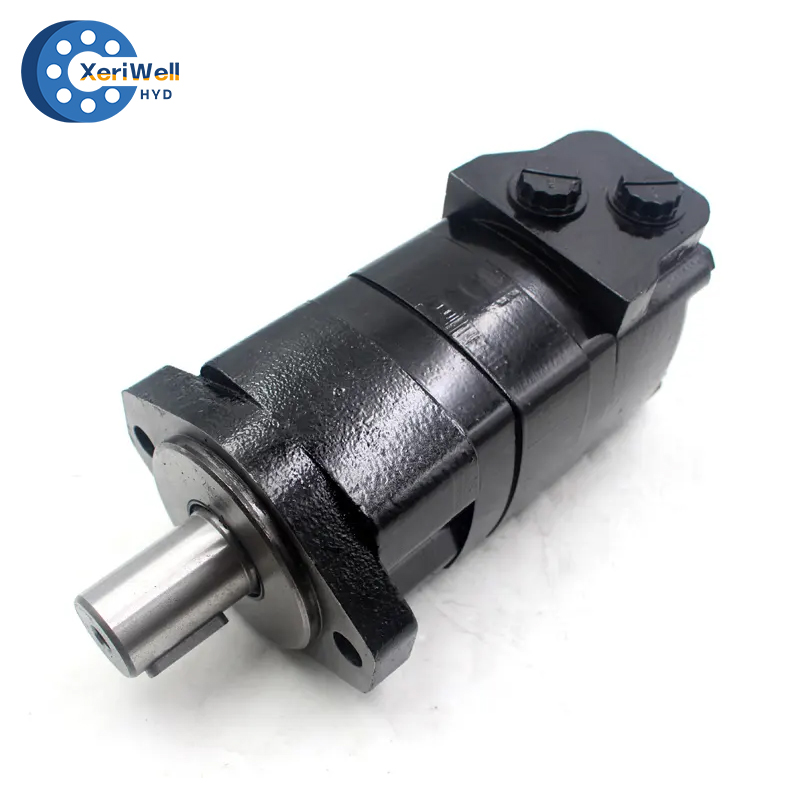

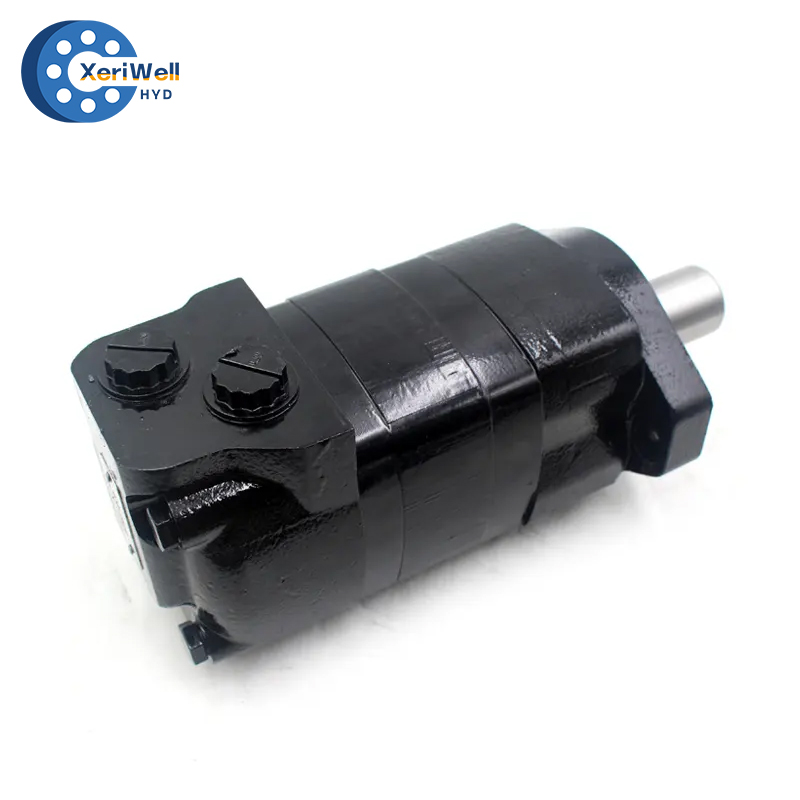

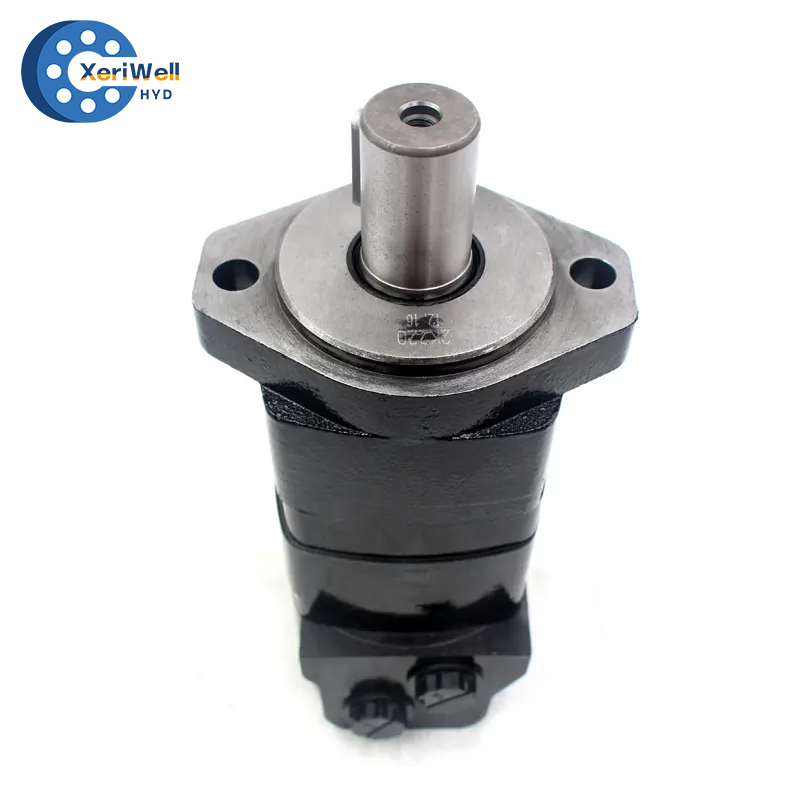

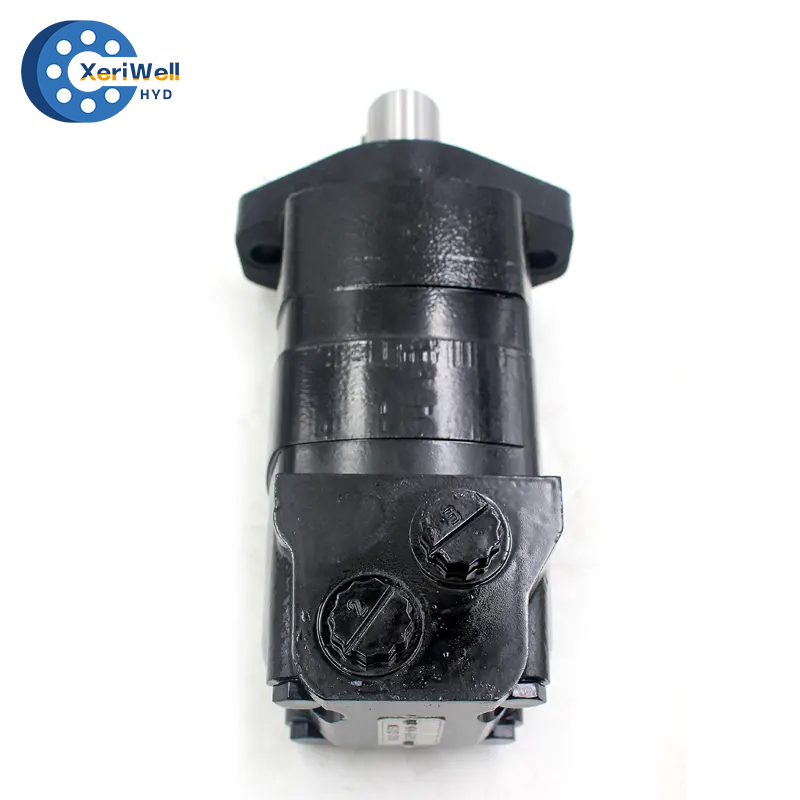

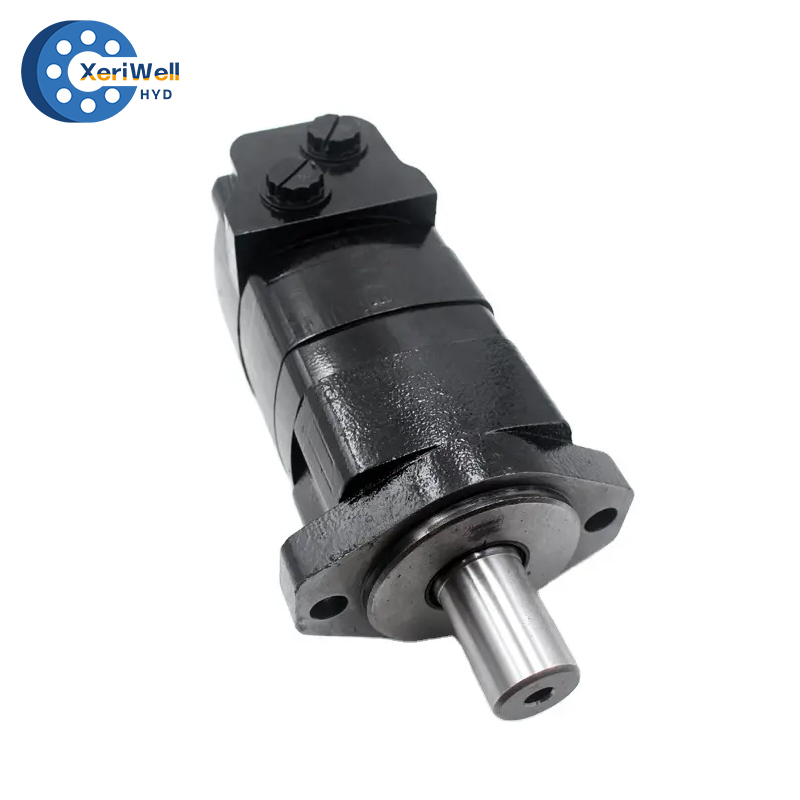

BMK2
xeriwell or others

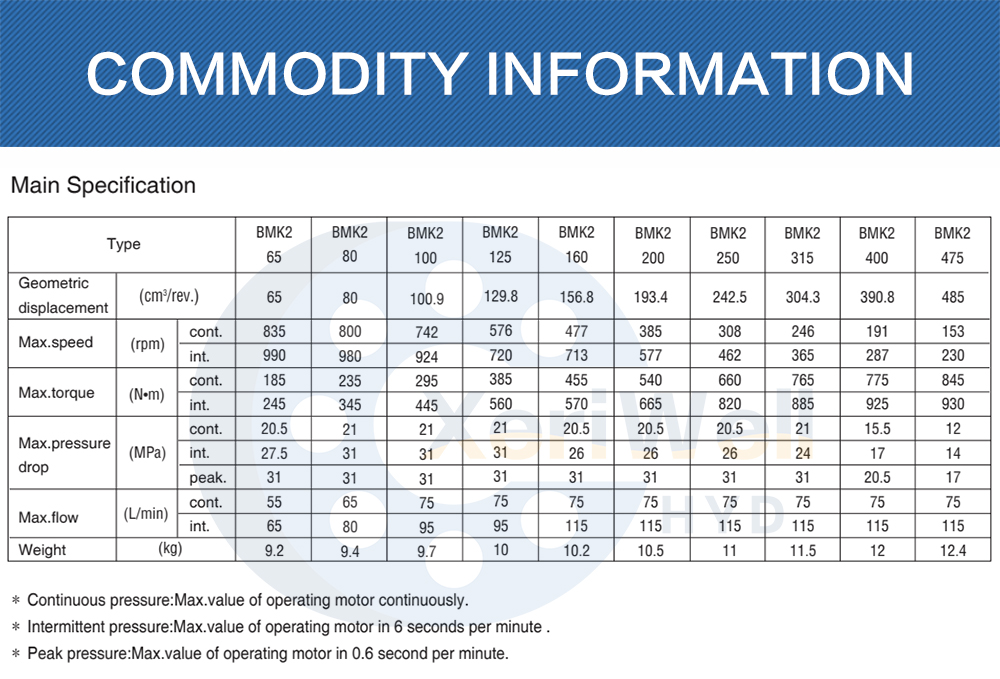

BMK2 65/80/100/125/160/200/250/315/400/475 Orbital Hydraulic Motor technical data:
| Main Specification | ||||||||||||
| Type | BMK2 65 | BMK2 80 | BMK2 100 | BMK2 125 | BMK2 160 | BMK2 200 | BMK2 250 | BMK2 315 | BMK2 400 | BMK2 475 | ||
| Geometric displacement | (cm³/rev.) | 65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max.speed | (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | ||
| Max.torque | (N•m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | ||
| Max.pressure drop | (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | ||
| peak. | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | ||
| Max.flow | (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | ||
| Weight | (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure:Max.value of operating motor continuously. * Intermittent pressure:Max.value of operating motor in 6 seconds per minute . * Peak pressure:Max.value of operating motor in 0.6 second per minute. | ||||||||||||
