BMK2-200-E2-I-SU
Xeriwell or Others
| Type: | Orbital Motor, Hydraulic Motor | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BMK2-200-E2-I-SU | Displacement: | 200ml/r |

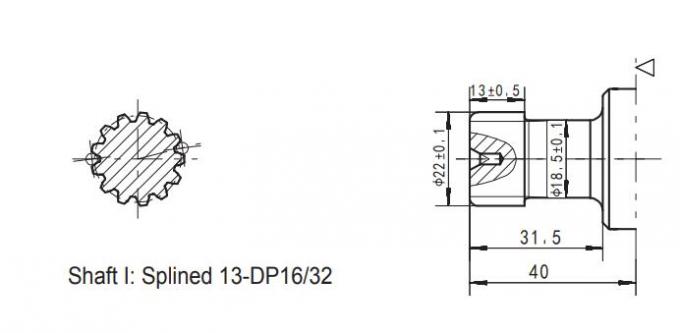

| Flange: | 2 Bolt | Shaft: | 22mm Sub-shaft Spline 13-DP16/32 |
| Port Size: | 7/8-14UNF O-RING | Drain Line: | 7/16-20UNF |
| Highlight: | BMK2 Hydraulic Motor,200cc Hydraulic Motor With A2 Flange,200cc Hydraulic Motor 200ml/r | ||

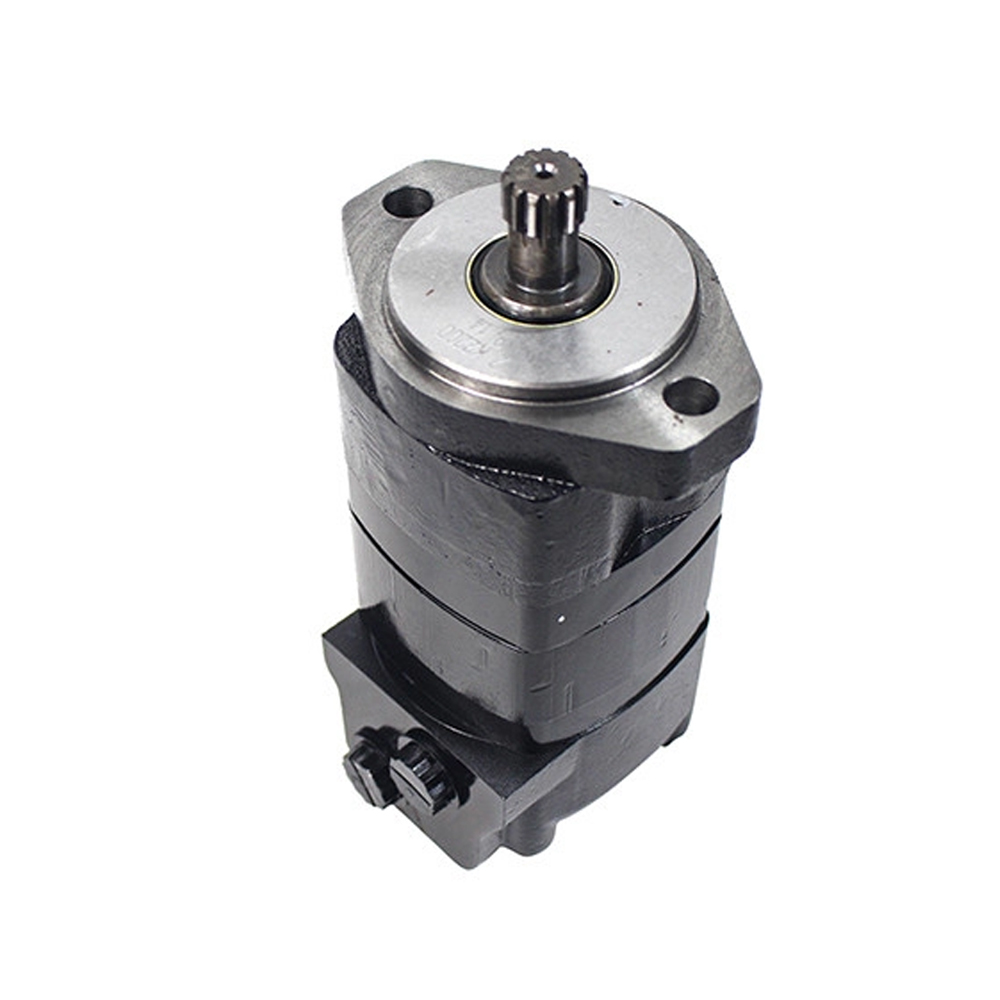

BMK2 Hydraulic Motor, Char-Lynn 104- Version, 200cc With A2 Flange, Sub Shaft Spline 13-DP16/32
104- series Hydraulic Motor, Char-lynn version, 200cc with A2 flange, sub shaft spline 13-DP16/32
Quick review:
Output volume (cc/rev): 200
Shaft Ø (mm): 22mm
max r.p.m.: 577
Torque max. (Nm): 665
Pressure difference (bar): 310
Volume flow max. (l/min): 115
Shaft seal version: Standard
Engine version: standard
Connection: 7/8-14UNF O-RING
Leakage oil connection: 7/16-20UNF
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) | 65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||

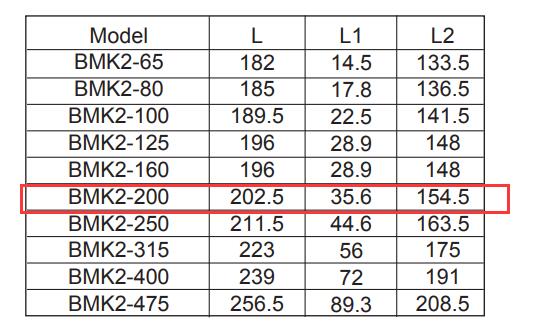

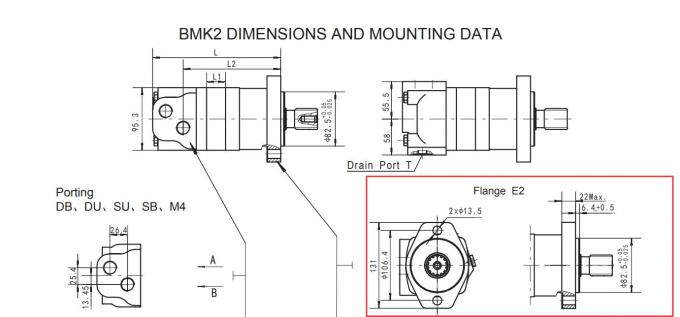

| Model | L | L1 | L2 |
| BMK2-65 | 182 | 14.5 | 133.5 |
| BMK2-80 | 185 | 17.8 | 136.5 |
| BMK2-100 | 189.5 | 22.5 | 141.5 |
| BMK2-125 | 196 | 28.9 | 148 |
| BMK2-160 | 196 | 28.9 | 148 |
| BMK2-200 | 202.5 | 35.6 | 154.5 |
| BMK2-250 | 211.5 | 44.6 | 163.5 |
| BMK2-315 | 223 | 56 | 175 |
| BMK2-400 | 239 | 72 | 191 |
| BMK2-475 | 256.5 | 89.3 | 208.5 |

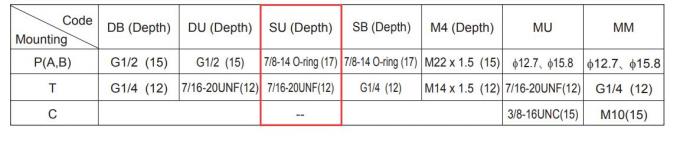

| Mounting Code | DB (Depth) | DU (Depth) | SU (Depth) | SB (Depth) | M4 (Depth) | MU | MM |
| P(A,B) | G1/2（15） | G1/2（15） | 7/8-14 O-ring (17) | 7/8-14 O-ring (17) | M22 x 1.5（15） | φ12.7、φ15.8 | φ12.7、φ15.8 |
| T | G1/4（12） | 7/16-20UNF(12) | 7/16-20UNF(12) | G1/4（12） | M14 x 1.5（12） | 7/16-20UNF(12) | G1/4（12） |
| C | -- | 3/8-16UNC(15) | M10(15) | ||||
