BMK2-315-E2-FE-SU-H
Xeriwell or Others
| Product: | Hydraulic Motor | Displacement: | 315 Ml/r |
|---|---|---|---|
| Shaft: | Spline Shaft | Rotation: | CW |
| Highlight: | Eaton Char-lynn Gerotor Hydraulic Motor,2000 series Gerotor Hydraulic Motor,BMK2 315ml/r Gerotor Hydraulic Motor | ||

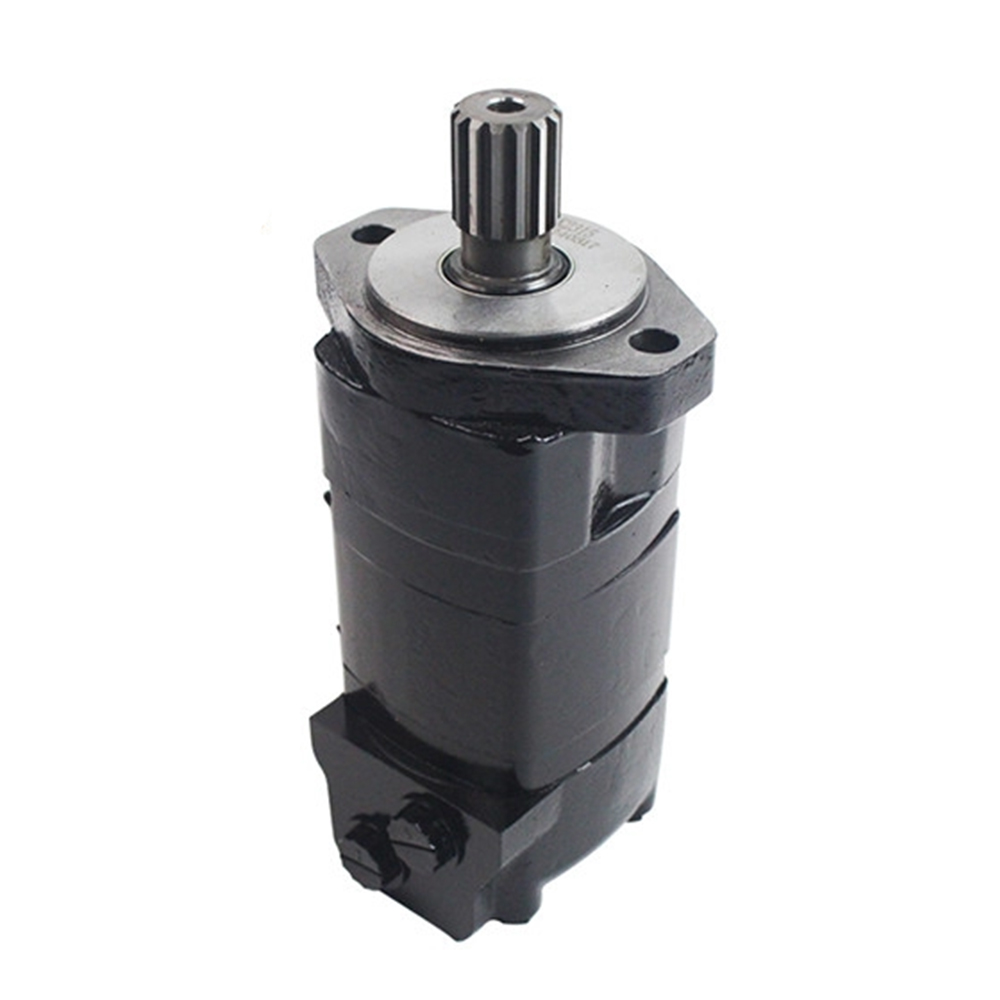

BMK2 315ml/r replace Eaton Char-lynn Gerotor Hydraulic Motor 2000 series
Quick review:
Model number: BMK2-315-E2-FE-SU-H
Displacement: 315 ml/r
Shaft, spline shaft
Rotation, CW
Features, replace Eaton Char-lynn 2000 series
Speed, torque, flow, pressure, weight informations:
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) | 65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||

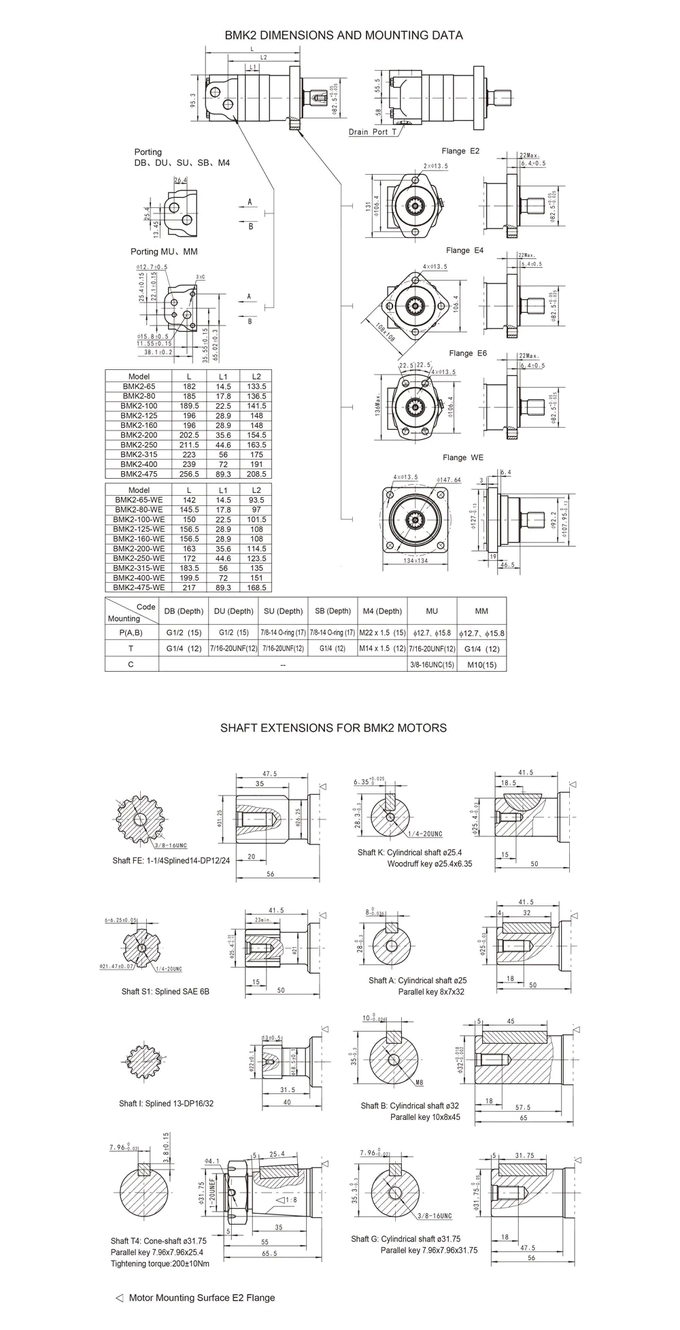

Measurement:
More Eaton Char-lynn replacement motor we have:
J (129-)
H (101-)
S (103-)
T (158-)
W (162-)
2000 (104-, 105-, 106-,)
4000 (109-, 110-,)
6000 (112-, 113-, 114-)
10000 ( 119-)
| Model | L | L1 | L2 |
| BMK2-65 | 182 | 14.5 | 133.5 |
| BMK2-80 | 185 | 17.8 | 136.5 |
| BMK2-100 | 189.5 | 22.5 | 141.5 |
| BMK2-125 | 196 | 28.9 | 148 |
| BMK2-160 | 196 | 28.9 | 148 |
| BMK2-200 | 202.5 | 35.6 | 154.5 |
| BMK2-250 | 211.5 | 44.6 | 163.5 |
| BMK2-315 | 223 | 56 | 175 |
| BMK2-400 | 239 | 72 | 191 |
| BMK2-475 | 256.5 | 89.3 | 208.5 |
| Model | L | L1 | L2 |
| BMK2-65-WE | 142 | 14.5 | 93.5 |
| BMK2-80-WE | 145.5 | 17.8 | 97 |
| BMK2-100-WE | 150 | 22.5 | 101.5 |
| BMK2-125-WE | 156.5 | 28.9 | 108 |
| BMK2-160-WE | 156.5 | 28.9 | 108 |
| BMK2-200-WE | 163 | 35.6 | 114.5 |
| BMK2-250-WE | 172 | 44.6 | 123.5 |
| BMK2-315-WE | 183.5 | 56 | 135 |
| BMK2-400-WE | 199.5 | 72 | 151 |
| BMK2-475-WE | 217 | 89.3 | 168.5 |
| Mounting Code | DB (Depth) | DU (Depth) | SU (Depth) | SB (Depth) | M4 (Depth) | MU | MM |
| P(A,B) | G1/2（15） | G1/2（15） | 7/8-14 O-ring (17) | 7/8-14 O-ring (17) | M22 x 1.5（15） | φ12.7、φ15.8 | φ12.7、φ15.8 |
| T | G1/4（12） | 7/16-20UNF(12) | 7/16-20UNF(12) | G1/4（12） | M14 x 1.5（12） | 7/16-20UNF(12) | G1/4（12） |
| C | -- | 3/8-16UNC(15) | M10(15) | ||||
