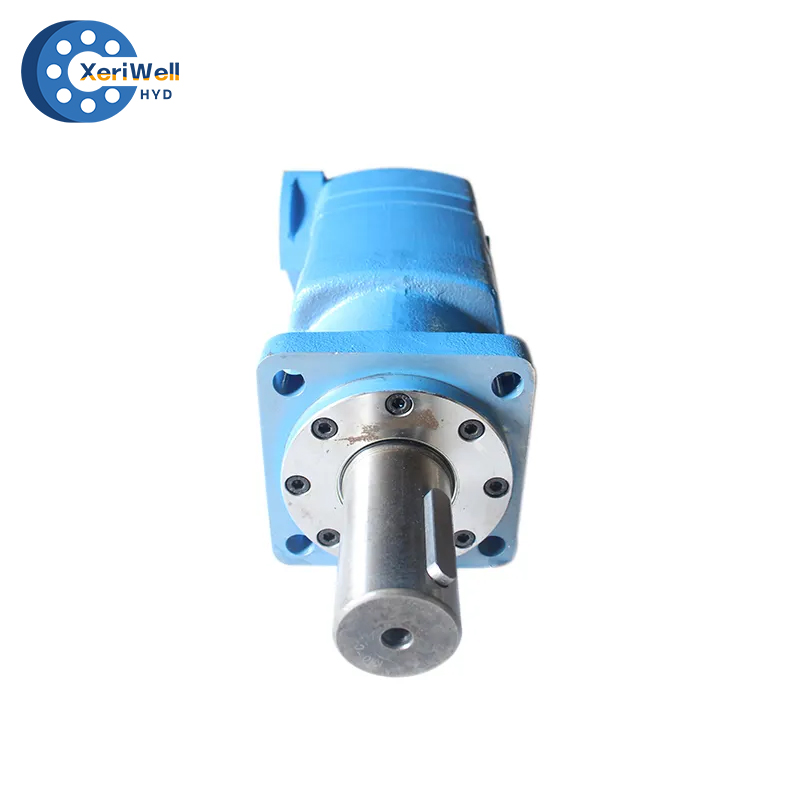

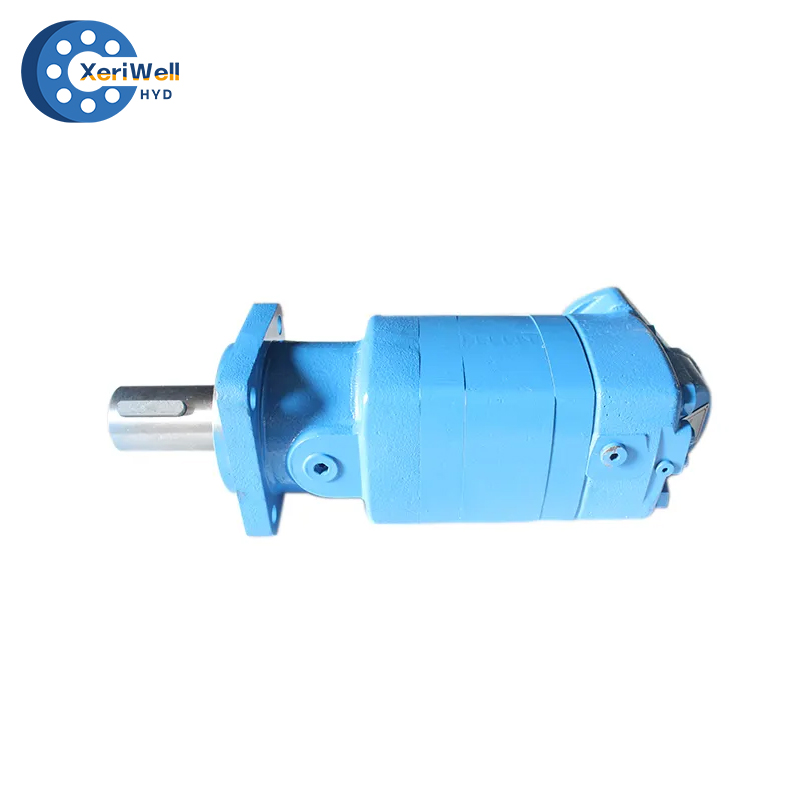

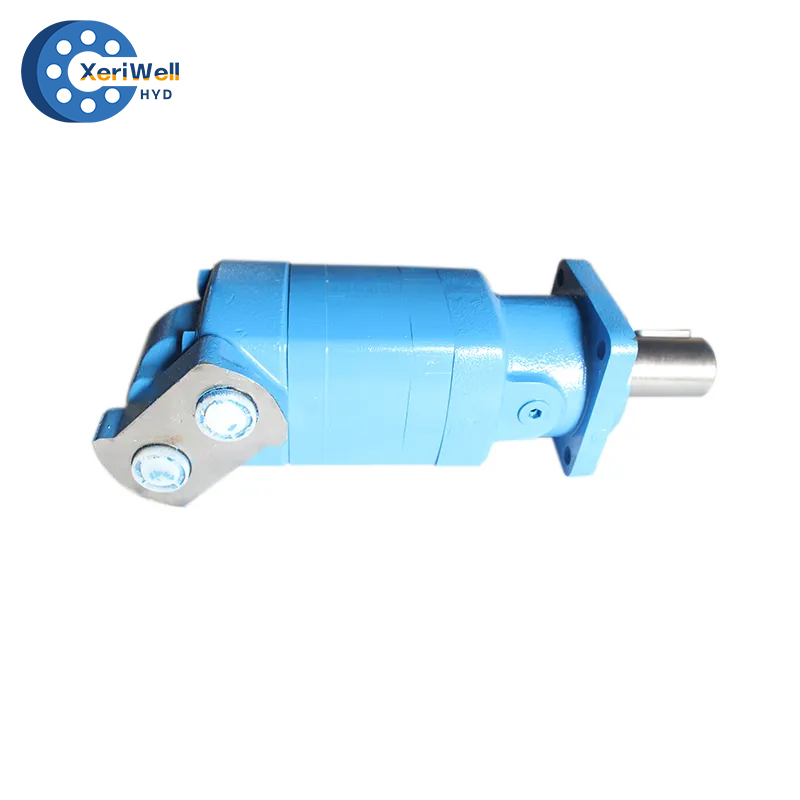

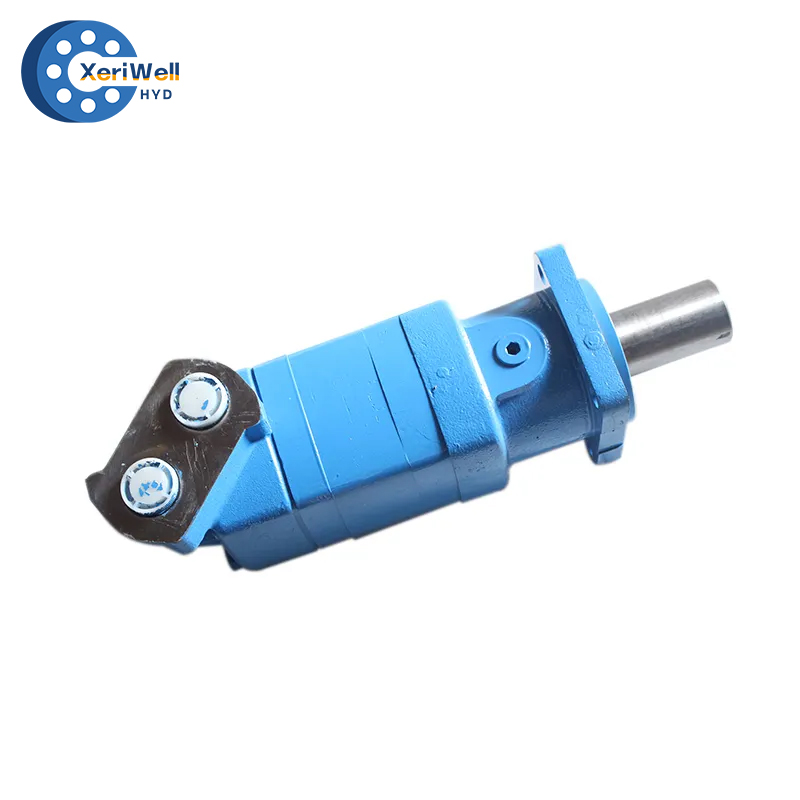

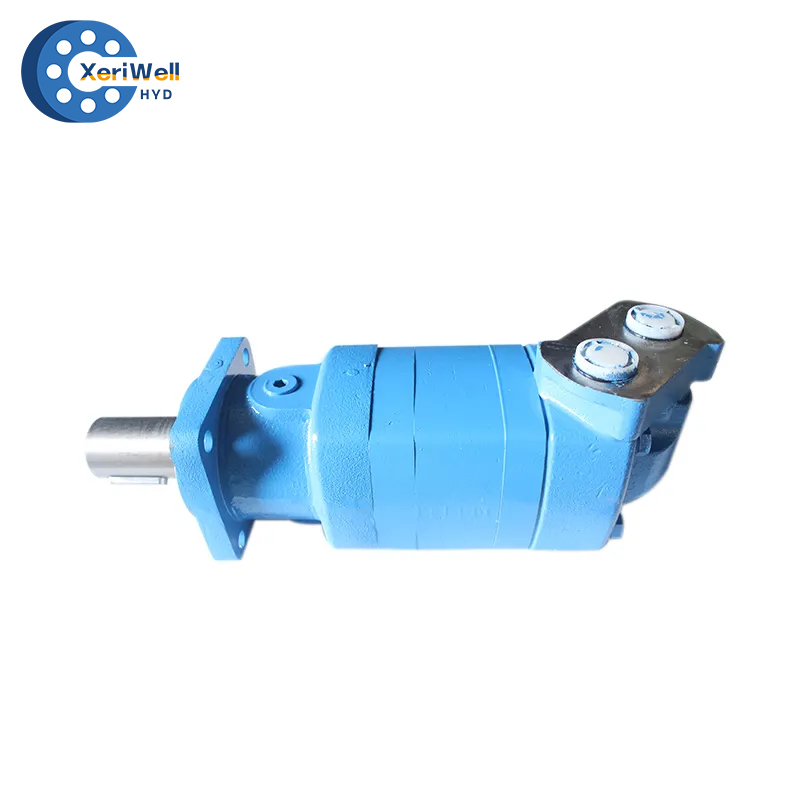

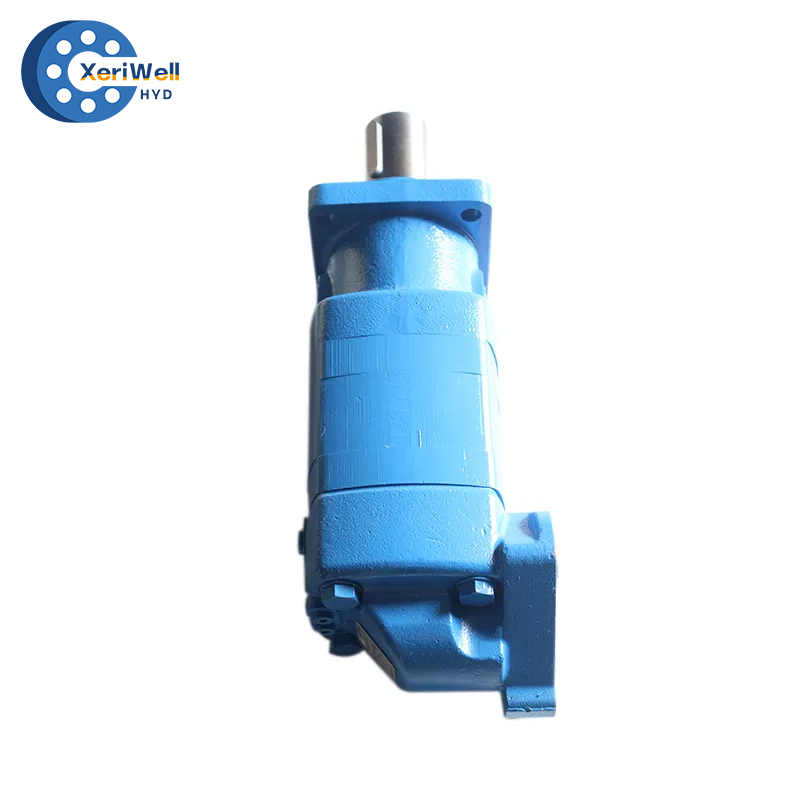

BMK10 Orbital Hydraulic Motor for Snowblower

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Type:	BMK10-350 BMK10-480 BMK10-665 BMK10-940
Spare Parts:	On sale
Availability:





Inquire Add to Basket

Model:
BMK10
Brand:
Xeriwell or Others

BMK10 Orbital Hydraulic Motor for Snowblower and spare parts

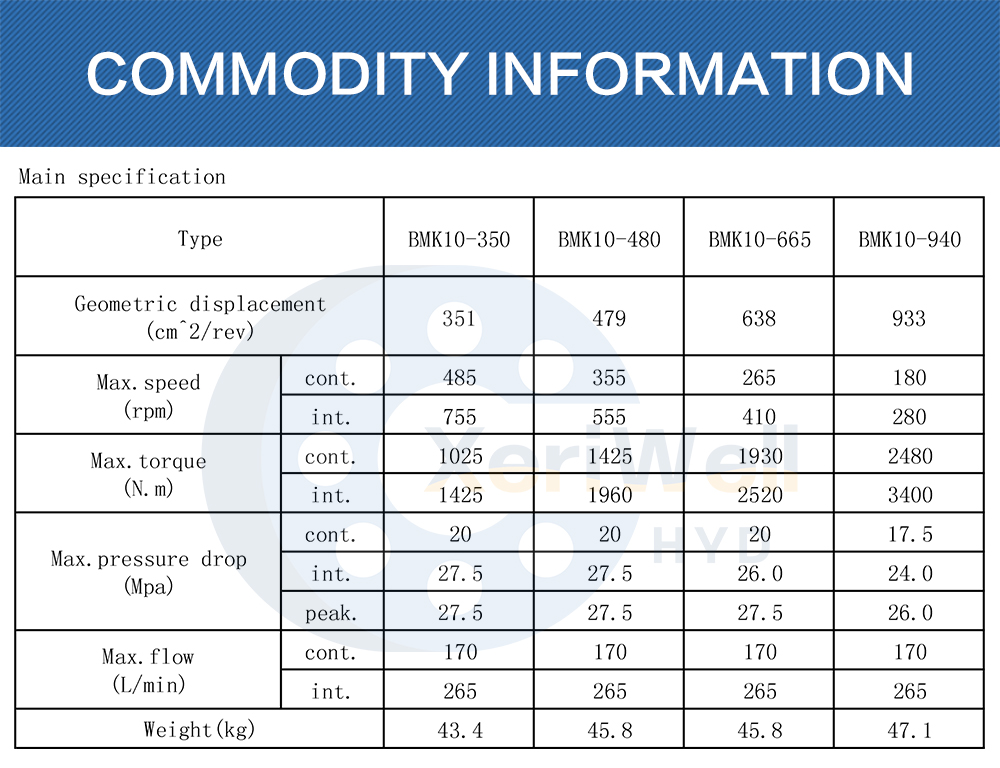

BMK10 - 350/480/665/940 Orbital Hydraulic Motor technical data:

详情图

Main specification
Main specification
Type		BMK10–350	BMK10–480	BMK10–665	BMK10–940
Geometric displacement (cm^2/rev)		351	479	638	933
Max. speed (rpm)	cont.	485	355	265	180
Max. speed (rpm)	int.	755	555	410	280
Max. torque (N.m)	cont.	1025	1425	1930	2480
Max. torque (N.m)	int.	1425	1960	2520	3400
Max. pressure drop (Mpa)	cont.	20	20	20	17.5
	int.	27.5	27.5	26	24
	peak.	27.5	27.5	27.5	26
Max. flow (L/min)	cont.	170	170	170	170
Max. flow (L/min)	int.	265	265	265	265
Weight(kg)		43.4	45.8	45.8	47.1
