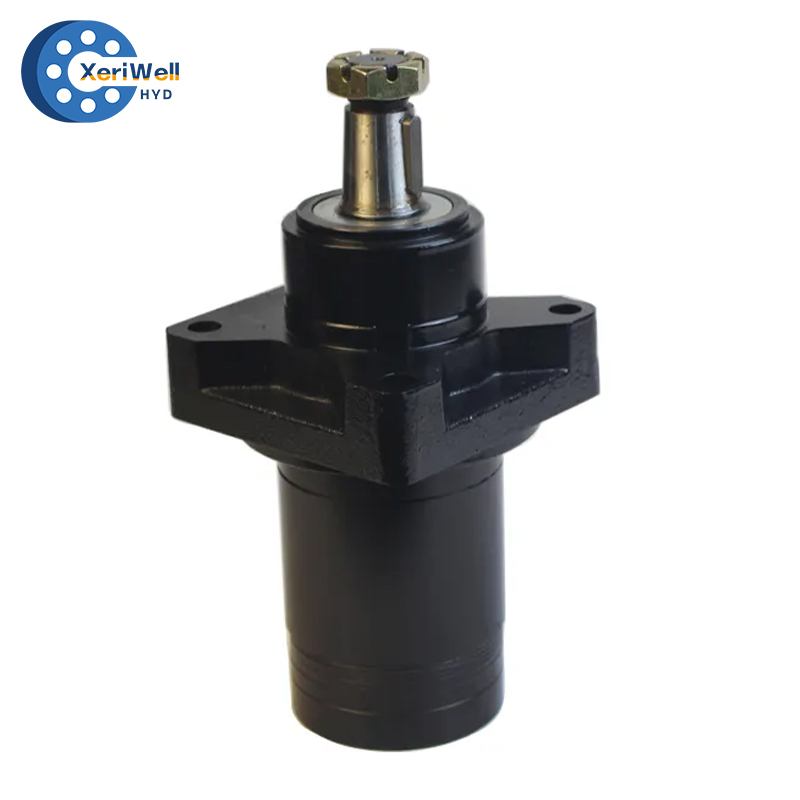

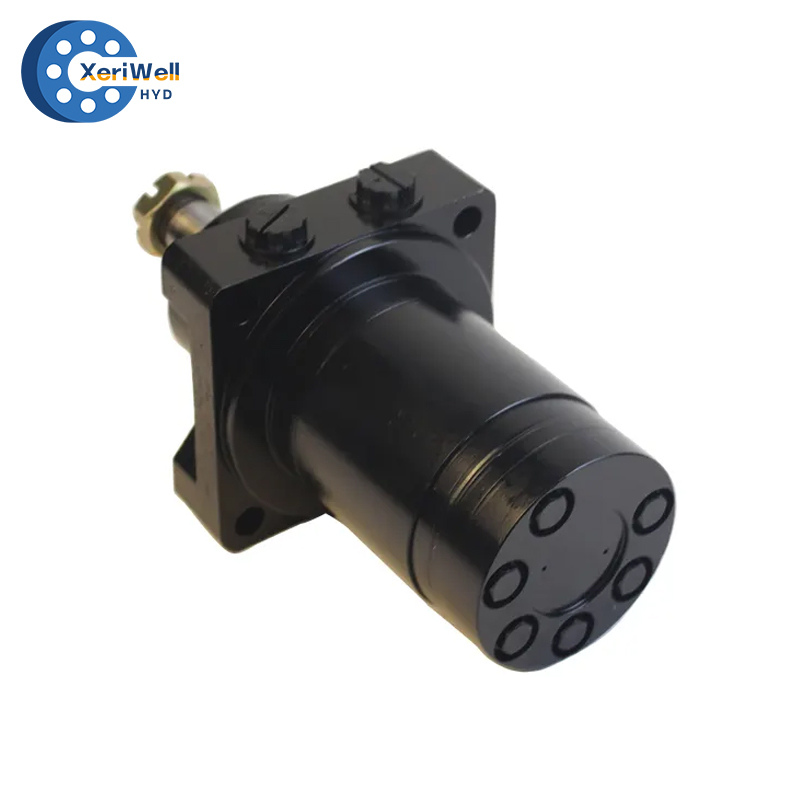

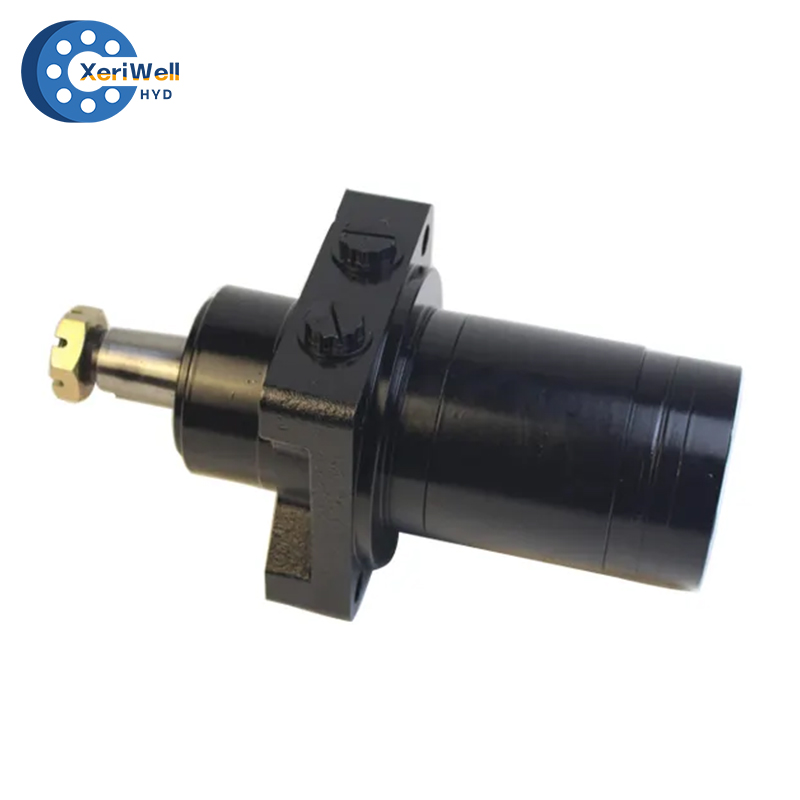

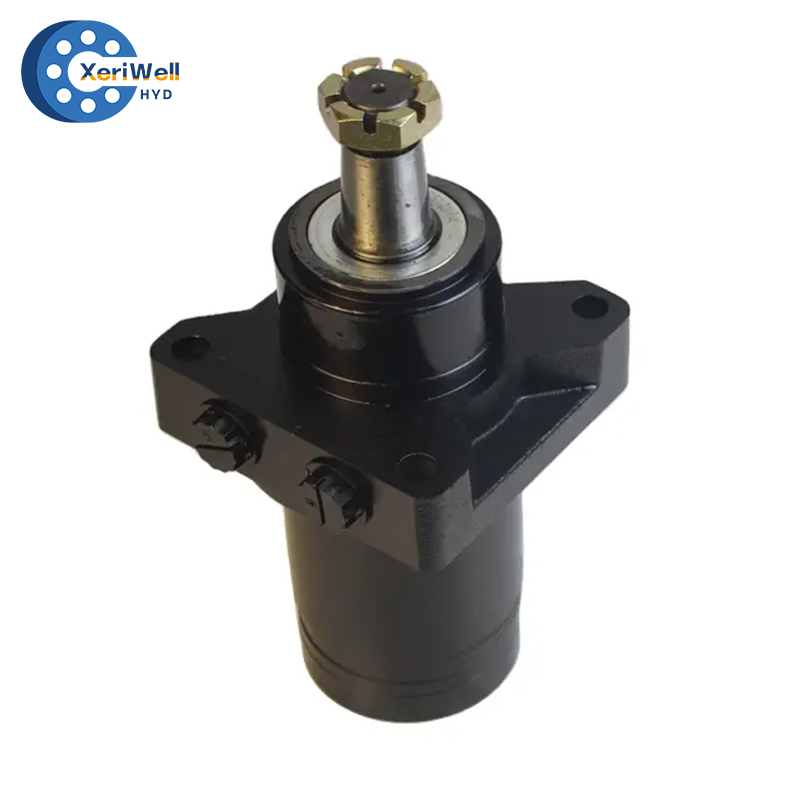

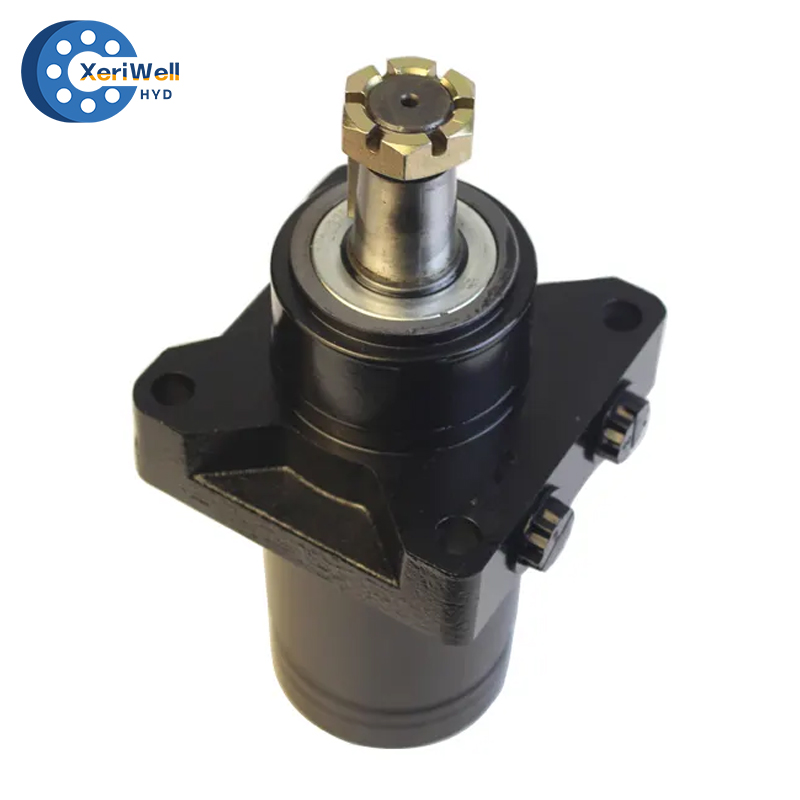

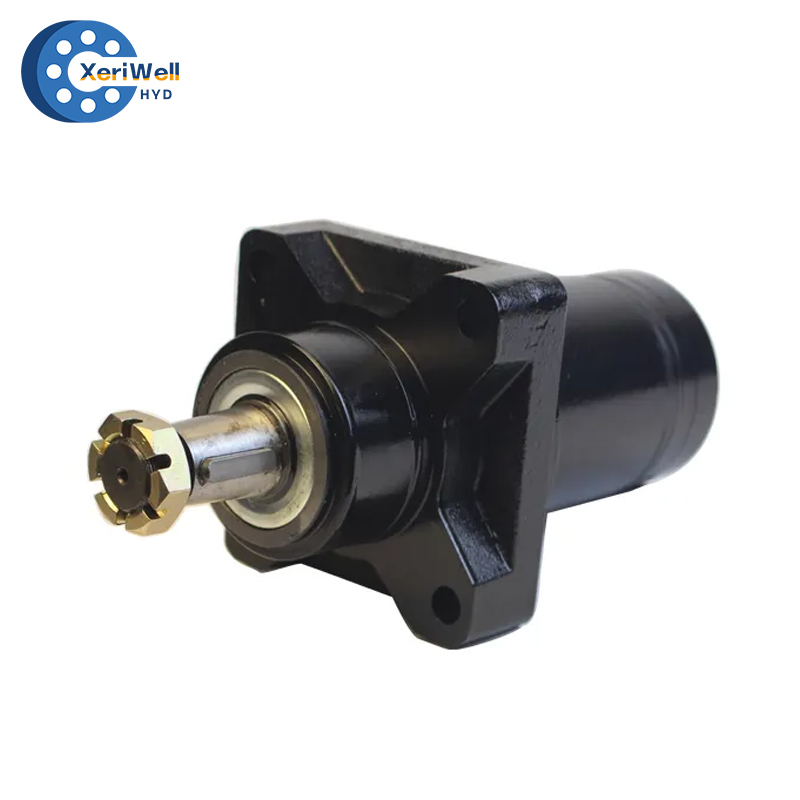

BMJ Orbital Hydraulic Motor

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Type:	BMJ65 BMJ80 BMJ100 BMJ125 BMJ160 BMJ200 BMJ230 BMJ250 BMJ295 BMJ315 BMJ375
Spare parts:	On sale
Availability:





Inquire Add to Basket

Model:
BMJ
Brand:
xeriwell or others

Product Description

BMJ Orbital Hydraulic Motor and spare parts

BMJ 65/80/100/125/160/200/230/250/295/315/375 Orbital Hydraulic Motor technical data:

danfoss orbital motor pdf

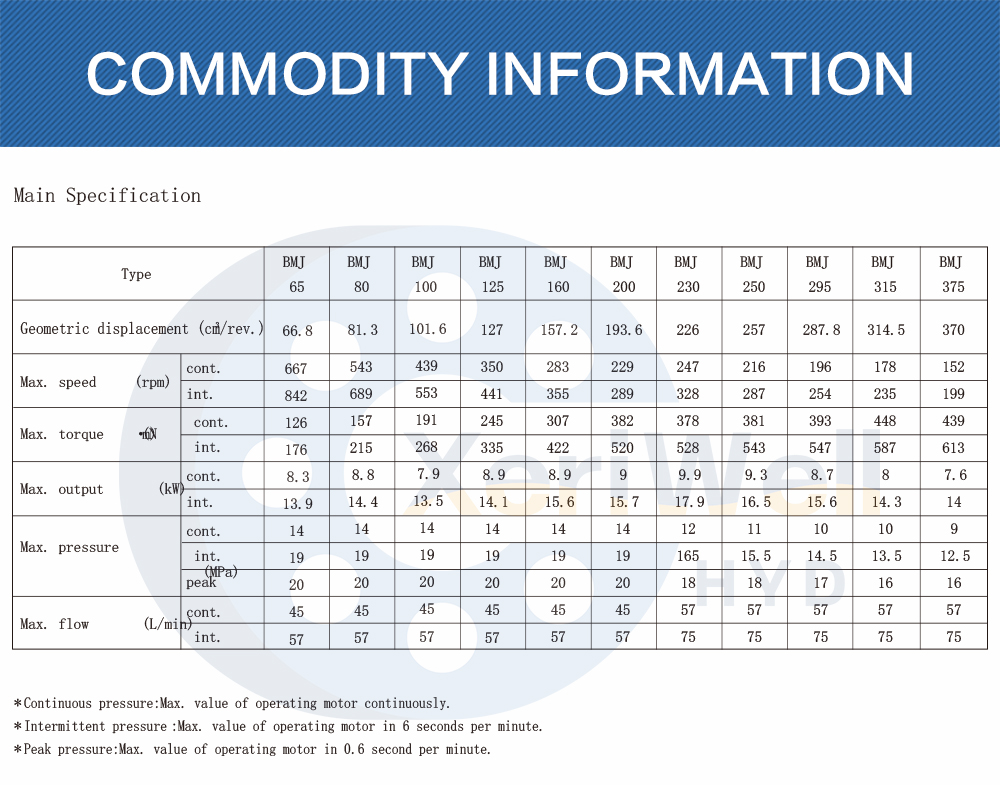

Main Specification
Main Specification
Type		BMJ 65	BMJ 80	BMJ 100	BMJ 125	BMJ 160	BMJ 200	BMJ 230	BMJ 250	BMJ 295	BMJ 315	BMJ 375
Geometric displacement（cm3/rev.）		66.8	81.3	101.6	127	157.2	193.6	226	257	287.8	314.5	370
Max. speed （rpm）	cont.	667	543	439	350	283	229	247	216	196	178	152
Max. speed （rpm）	int.	842	689	553	441	355	289	328	287	254	235	199
Max. torque （mN）	cont.	126	157	191	245	307	382	378	381	393	448	439
Max. torque （mN）	int.	176	215	268	335	422	520	528	543	547	587	613
Max. output （kW）	cont.	8.3	8.8	7.9	8.9	8.9	9	9.9	9.3	8.7	8	7.6
Max. output （kW）	int.	13.9	14.4	13.5	14.1	15.6	15.7	17.9	16.5	15.6	14.3	14
Max. pressure（MPa）	cont.	14	14	14	14	14	14	12	11	10	10	9
	int.	19	19	19	19	19	19	165	15.5	14.5	13.5	12.5
	peak	20	20	20	20	20	20	18	18	17	16	16
Max. flow （L/min）	cont.	45	45	45	45	45	45	57	57	57	57	57
Max. flow （L/min）	int.	57	57	57	57	57	57	75	75	75	75	75
Continuous pressure:Max. value of operating motor continuously. Intermittent pressure:Max. value of operating motor in 6 seconds per minute. *Peak pressure:Max. value of operating motor in 0.6 second per minute.
