BMJ-295-WDB
Xeriwell or Others
| Product: | Wheel Motor | Replace: | Parker TJ Series |
|---|---|---|---|
| Displacement: | 295 Ml/r | Flange: | Wheel Mounted |
| Shaft: | 32mm Straight | Key: | Parallel Key |
| Max Speed: | 254 Rpm | Net Weight: | 10 Kgs |
| Max Flow: | 75 L/min | Measurement: | 1 Pcs/ Carton/ 20x20x15cm |
| Highlight: | hydraulic wheel drive motors,spool valve motor | ||

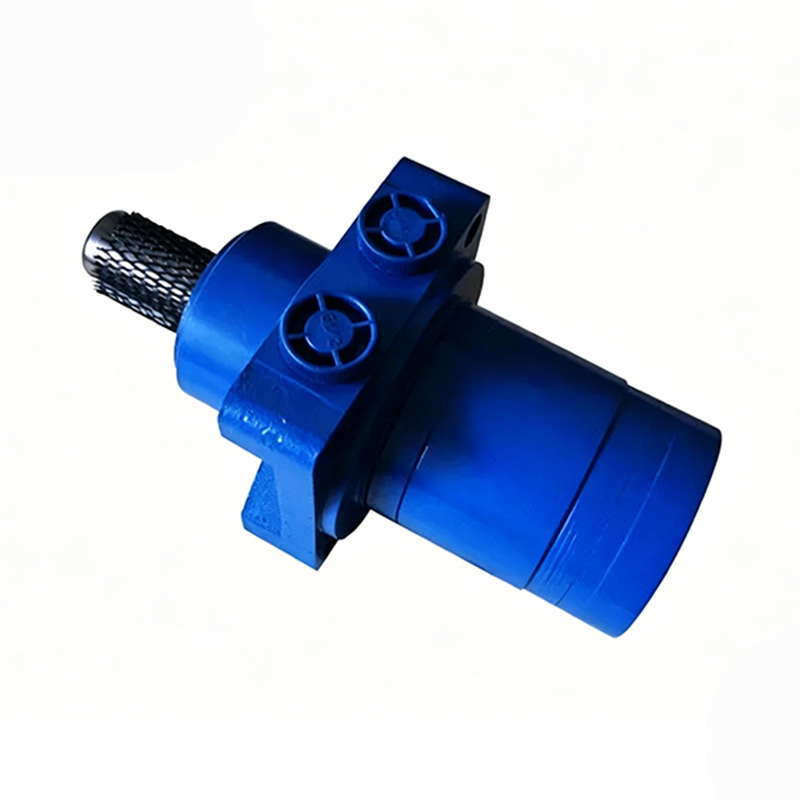

Parker TJ-295 series Hydraulic Wheel Motor replacement BMJ-295
BMJ indroduction:
This motor is a Hydraulic wheel motor, also called Gerotor Hydraulic Motor, also called Orbit Hydraulic Motor, or Low Speed High Torque Hydraulic Motor, also spool valve hydraulic motor.
What benefit can i get?
As it's performance is 99% near the Parker TJ series hydraulic wheel motor, however it's price is more than 50% lower than the below manufacturers, If you sell $1,000,000.00 a year, you raise profit at least 30%, $300,000.00
Specifications/ Technical Data:
This Gerotor Hydraulic Motor BMJ is a small motor however with bigger torque figures, that is mean it have higher work performance compare with BMP (OMP, MP), BMR (OMR, MR) series. it's displacement start from 65 ml/r to 375 ml/r, speed from 152 rpm to 842 ml/r, torque from 126 N.m to 613 N.m, max output from 8.3 kw to 17.9 kw, max flow from 45 L/min to 75 L/min. Below is the detail specifications of this BMJ hydraulic wheel motors.
BMJ-295-WDB
displacement 295 ml/r
4 hole wheel mounted hydraulic wheel motor
32 mm shaft
G1/2 oil ports
| Type | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | |
| 65 | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 | ||
| Displacement (cm3/rev.) | 66.8 | 81.3 | 101.6 | 127 | 157.2 | 193.6 | 226 | 257 | 287.8 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 667 | 543 | 439 | 350 | 283 | 229 | 247 | 216 | 196 | 178 | 152 |
| int. | 842 | 689 | 553 | 441 | 355 | 289 | 328 | 287 | 254 | 235 | 199 | |
| Max. torque (N• m) | cont. | 126 | 157 | 191 | 245 | 307 | 382 | 378 | 381 | 393 | 448 | 439 |
| int. | 176 | 215 | 268 | 335 | 422 | 520 | 528 | 543 | 547 | 587 | 613 | |
| Max. output (kW) | cont. | 8.3 | 8.8 | 7.9 | 8.9 | 8.9 | 9 | 9.9 | 9.3 | 8.7 | 8 | 7.6 |
| int. | 13.9 | 14.4 | 13.5 | 14.1 | 15.6 | 15.7 | 17.9 | 16.5 | 15.6 | 14.3 | 14 | |
| Max.pressure drop (MPa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 10 | 10 | 9 |
| int. | 19 | 19 | 19 | 19 | 19 | 19 | 16.5 | 15.5 | 14.5 | 13.5 | 12.5 | |
| peak | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 17 | 16 | 16 | |
| Max. flow (L/min) | cont. | 45 | 45 | 45 | 45 | 45 | 45 | 57 | 57 | 57 | 57 | 57 |
| int. | 57 | 57 | 57 | 57 | 57 | 57 | 75 | 75 | 75 | 75 | 75 | |
How to work with Xeriwell Technology?
Inorder to make you better understand how to work with us, here i give you the steps:
discuss your demand with us first
we help you to confirm the products
match with our models
discuss your demand quantity with us, this will help us to provide you our best offer
we make a deal on the offer
sign a contract
you pay deposit
we produce
you pay balance payment after order ready for shipping
dispatch order
Payment terms: 30% deposit, 70% balance should be paid before shipping
Shipping: by sea, by air, by train
Terms: FOB, CFR, CIF
Loading port: Tianjin, Qingdao, Shanghai, Ningbo, China
What is you warranty period?
For your further better understand what after-sale service we are offering, here i give you the details:
each item supplied by 'Xeriwell' will be tested on it's testing plant at leaset twice
each item supplied by 'Xeriwell' will with a quality certificate
charge-free products, parts and services will be provided if any failures or defects of the contractual product in normal operation condition within the warranty period.
all of our product practice protect the quality 1 year.

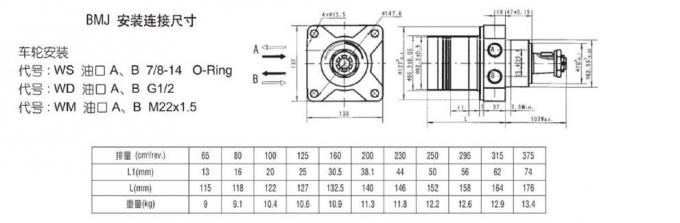

| 排量(cm3/rev.) | 65 | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 |
| L1(mm) | 13 | 16 | 20 | 25 | 30.5 | 38.1 | 44 | 50 | 56 | 62 | 74 |
| L2(mm) | 115 | 118 | 122 | 127 | 132.5 | 140 | 146 | 152 | 158 | 164 | 176 |
| 重量(kg) | 9 | 9.1 | 10.4 | 10.6 | 10.9 | 11.3 | 11.8 | 12.2 | 12.6 | 12.9 | 13.4 |
