| Quantity: | |
|---|---|
BMH500
Xeriwell or Others
| Features: | OMH500 / MH500 | Product Name: | Low RPM Hydraulic Motor BMH |
|---|---|---|---|
| Brand Name: | Xeriwell | Model Number: | BMH500 |
| Displacement: | 200cc - 750cc | Application: | Concrete Pump / Truck Mixers |
| Highlight: | hydraulic rotation motor,hydraulic pump motor | ||

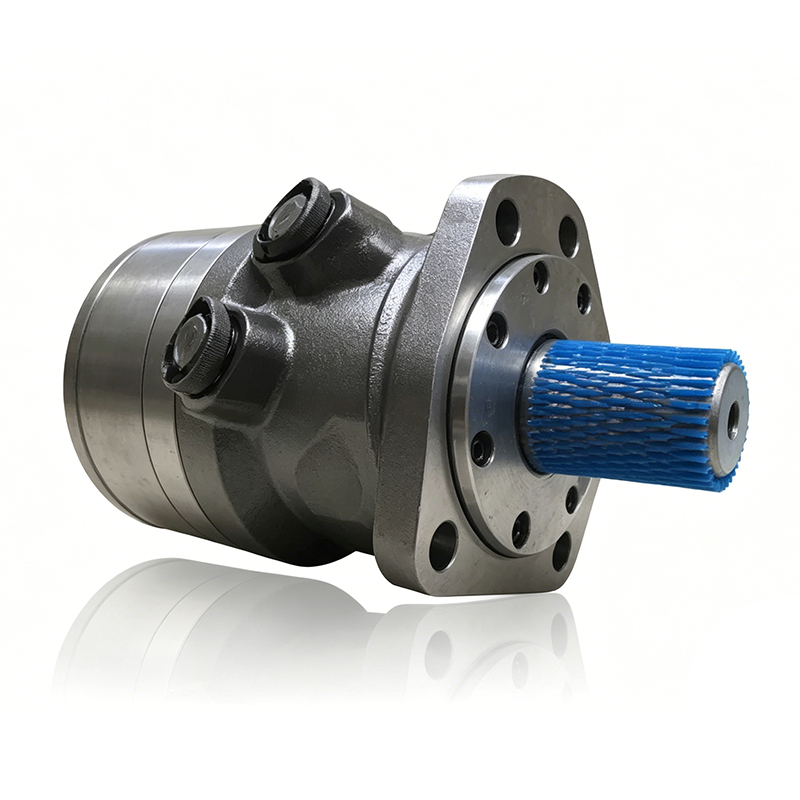

SCHWING Concrete Pump 10039180 / 10147632 / RB0400000 Auger Motor BMH500
CHARACTERISTICS
1 The output shaft, with the deep groove ball bearing, can bear certain axial force and radial force.
2 With the axial oil distribution structur, it is of smaller size and less weight.
3 With two inner check valves, no drain connection.
4 With cycoid group with the roller, it has a small friction nd high mechanical efficiency.
► Specification
| Xeriwell BMH500 | OMH500 | M+S MH500 |
| Type | BMH 200 | BMH 250 | BMH 315 | BMH 400 | BMH 500 | |
Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
Weight(kg)
| 10.5 | 11 | 11.5 | 12.3 | 13.0 | |
► Application
This series of motor,with its shell made of ductile cast iron of adequate intensity, can be applied to situations with less load and interval operation, widely to agriculture, forestry, plastics, machine tools and min machines, such as the mould height adjustment of the injection molding machine, the cleaner, the saw the worktable etc.
My factory specializes in designing and producing the motors and steering gear of any type, from large to small, from low to high, and so on. And can replace , Eaton, M+S series models. Products are widely used in engineering machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery, military engineering and other fields.
My factory take the good faith first, quality first for the purpose, from the employee on-boarding, raw materials into the factory, from parts processing, assembly proposal until products, has a relatively perfect system of product quality. And through CE certification. Our factory is dedicated to the establishment of an internationally renowned brand, looking forward to the long-term cooperation with more demand of hydraulic products.
