BMH Hydraulic Motors
Xeriwell or Others
| Features: | Same As Eaton M+S | Product Name: | Orbital Hydraulic Motor |
|---|---|---|---|
| Warranty: | Two Years | Model Number: | BMH |
| Displacement: | 200,250,315,400... | Applications: | Agricultural, Forestry, Marine, Construction, Ground Care, Industrial, ... |
| Highlight: | orbital hydraulic motor,hydraulic rotary motor | ||

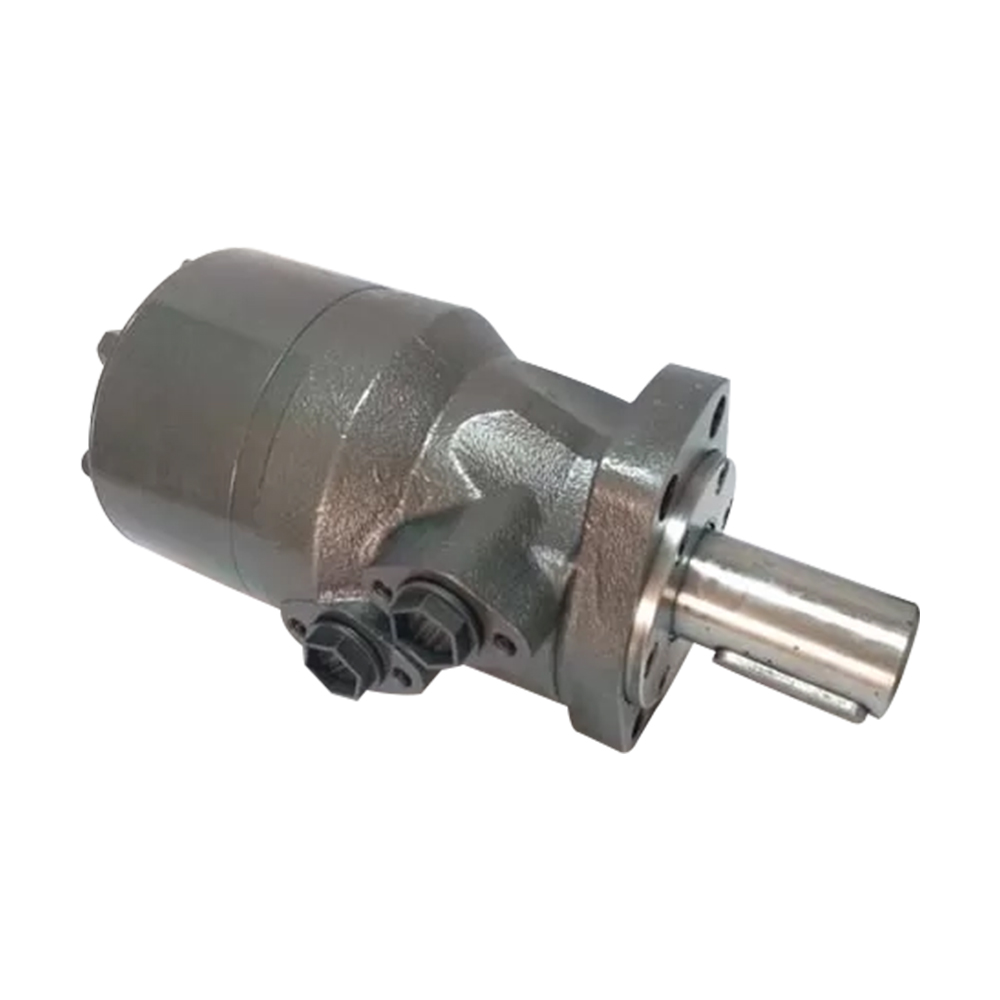

Orbital Motor BMH Meet The Construction Machinery Hydraulic System And Construction Machinery Hydraulic System
Advanced manufacturing devices for the Gerolor gear set, which use low pressure of
start-up,provide smooth, reliable operation and high efficiency.
Shaft seal can bear high pressure of back and the motor can be used in parallel or series.
Special design in the driver-linker and prolong operating life.
Special design for distribution system can meet the requirement of low noise of unit.
Compact volume and easy installation
| Type | BMH 200 | BMH 250 | BMH 315 | BMH 400 | BMH 500 | |
Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
Weight(kg)
| 10.5 | 11 | 11.5 | 12.3 | 13.0 | |
