| Quantity: | |
|---|---|
BMH500
Xeriwell or Others
| Features: | OMS / MS | Product Name: | Low RPM Hydraulic Motor BMH |
|---|---|---|---|
| Brand Name: | Xeriwell | Model Number: | BMH500, BMH750 |
| Displacement: | 200cc - 750cc | Application: | Concrete Pump / Truck Mixers |
| Highlight: | hydraulic rotation motor,hydraulic pump motor | ||

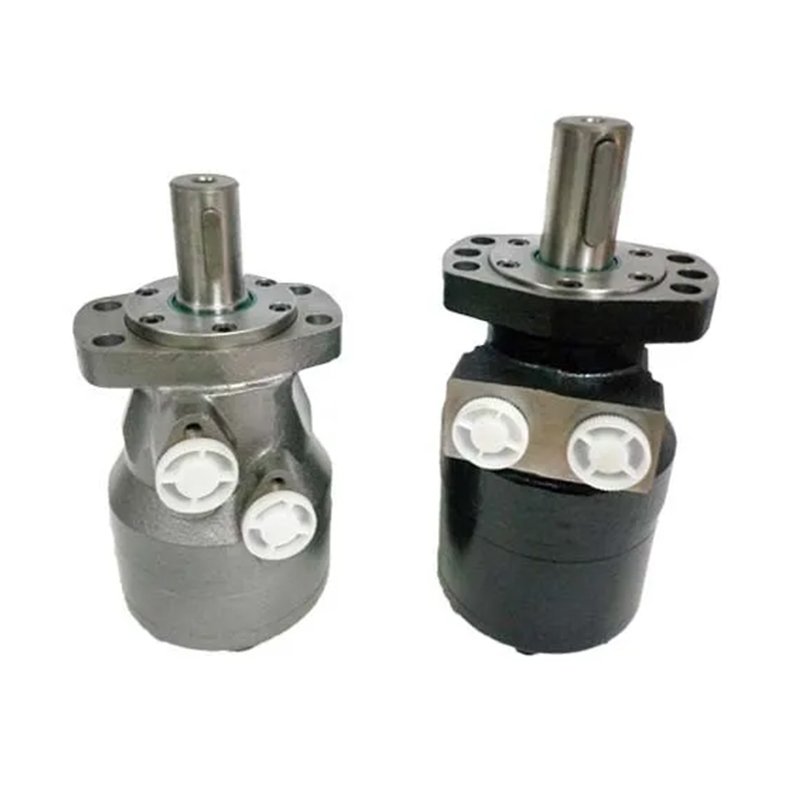

Low RPM Hydraulic Motor BMH / OMH For Concrete Pump / Truck Mixers Spare Parts
► Characteristic features
1. BMH / OMH series motor adapt the advanced Geroler gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure, provide reliable and smooth operation, high efficiency and long life.
2. Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.
3. Shaft seal can bear high pressure of back and the motor can be used in parallel or series.
4. Special design in the driver-linker and prolong operating life.
5. Special design for distribution system can meet the requirement of low noise of unit.
6. Compact volume and easy installation.
► Specification
| Xeriwell BMH500 | OMH500 | M+S MH500 |
| Type | BMH 200 | BMH 250 | BMH 315 | BMH 400 | BMH 500 | |
Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
Weight(kg)
| 10.5 | 11 | 11.5 | 12.3 | 13.0 | |
► Application
Low RPM Hydraulic Motor BMH / OMH Motors
1. Concrete Pump / Truck Mixers Spare Parts
2. Hydraulic Rotating
3. Hydraulic Wood Splitter
4. Engineering mining equipment
