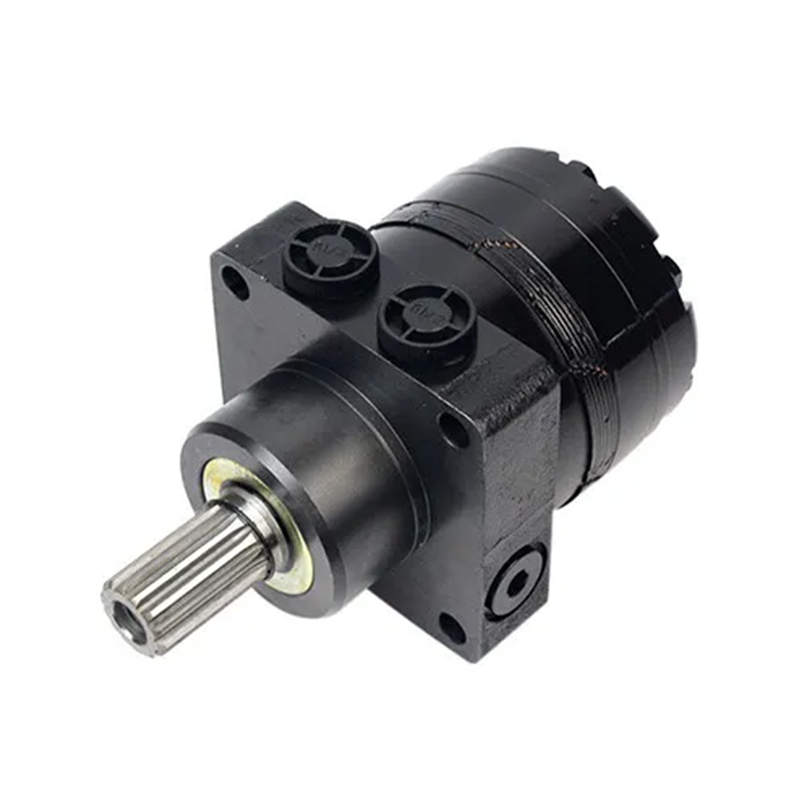

BMER LSHT Wheel Mount Hydraulic Motor with Valve Cavity, New Design Replacement for Parker TF0250

You are here: Home » Products » Hydraulic Motor » Ungrouped » BMER LSHT Wheel Mount Hydraulic Motor with Valve Cavity, New Design Replacement for Parker TF0250

BMER LSHT Wheel Mount Hydraulic Motor with Valve Cavity, New Design Replacement for Parker TF0250

BMER LSHT Wheel Mount Hydraulic Motor with Valve Cavity, New Design Replacement for Parker TF0250

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
BMER-2-250-WD-FD1-FY
Brand:
Xeriwell or Others

Product Description

Product:	Hydraulic Motor	Model No.:	BMER-2-250-WD-FD1-FY
Size:	250 Ml/r	Flange:	Wheel Mount
Port:	G 1/2	Shaft:	31.75mm Spline Shaft 14T
Rotation:	Standard	Color:	Black
Feature:	With Valve Cavity	More Size:	125 - 750 Ml/r Available
Highlight:	Wheel Mount parker lsht motors , LSHT Motor BMER , Wheel Mount lsht hydraulic motor

New Design Parker TF0250 wheel mount replacement LSHT motor BMER with Valve cavity

Quick review:

Xeriwell BMER = Parker TF

Product	Hydraulic Motor
Model No.	BMER-2-250-WD-FD1-FY
Size	250 ml/r

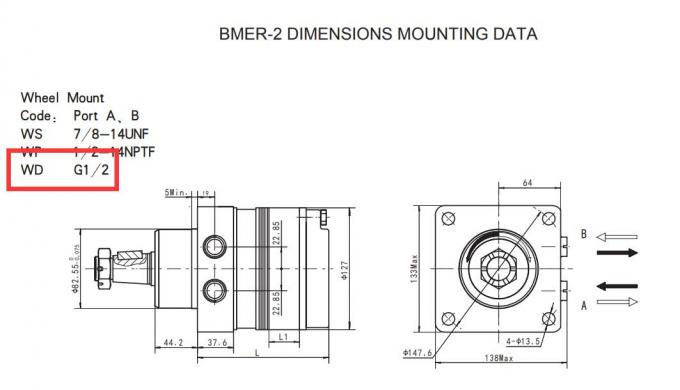

Flange	Wheel Mount
Port	G 1/2

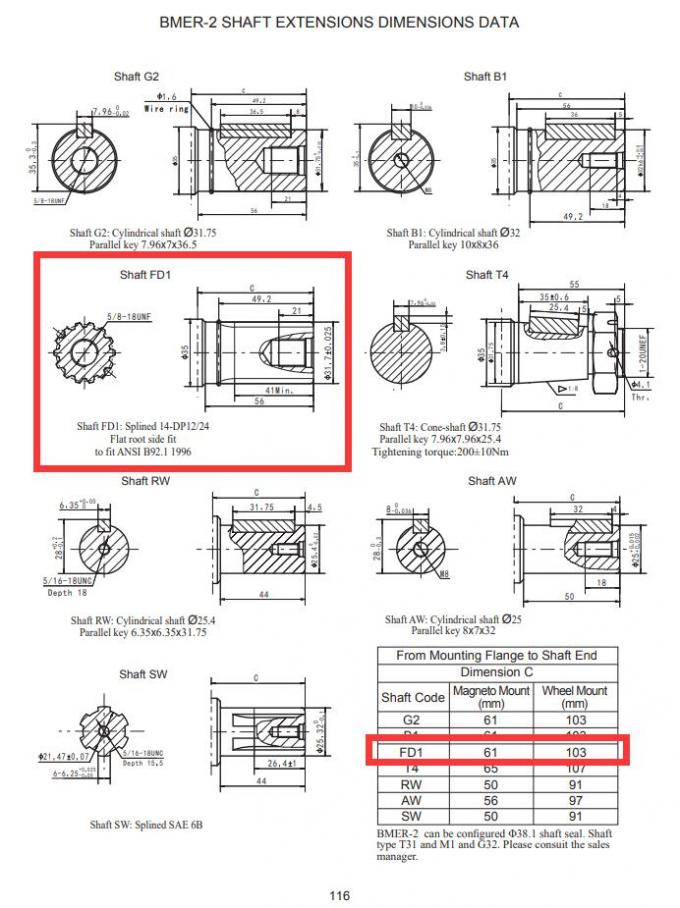

Shaft	31.75mm spline shaft 14T
Rotation	Standard
Color	Black
More size	125ml/r,160 ml/r, 200 ml/r, 230 ml/r, 250 ml/r, 300 ml/r, 350 ml/r, 375 ml/r 400 ml/r, 475 ml/r, 540 ml/r, 650 ml/r, 750 ml/r

FEATURES:
Mounting Flange: SAE A 2-bolt; 4-bolt (Magneto); 4-bolt square flange; wheel mount.
Displacement Range (cm3/rev.): 125cc - 750cc
Max. Speed (RPM): 120-1500 Cont.
Max. Differential Pressure (PSID): 2030 PSI
Shafts Options: Parallel shaft (keyed), splined shaft and tapered shaft (see details)

Specification:

Type		BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER
Type		125	160	200	230	250	300	350	375	475	540	750
Geometric displacement (cm3/rev.)		118	156	196	228	257	296	345	371	462	540	745
Max. speed (rpm)	cont.	360	375	330	290	290	250	220	200	160	140	100
Max. speed (rpm)	int.	490	470	425	365	350	315	270	240	195	170	120
Max. torque (N•m)	cont.	325	450	530	625	700	810	905	990	1085	980	1050
	int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
	peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max. output (kW)	cont.	12.0	15.0	15.5	16.0	17.5	18.0	17.5	16.5	14.5	11.5	8.0
Max. output (kW)	int.	14.0	17.5	18.0	19.0	20.0	21.0	20.0	19.0	16.5	15.0	10.0
Max. pressure drop (MPa)	cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
	int.	24	24	24	24	24	24	24	24	19	17.5	12
	peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min)	cont.	45	60	70	70	75	80	80	75	75	75	75
Max. flow (L/min)	int.	60	75	85	85	90	95	95	90	90	90	90
