BMER-2-250
Xeriwell or Others

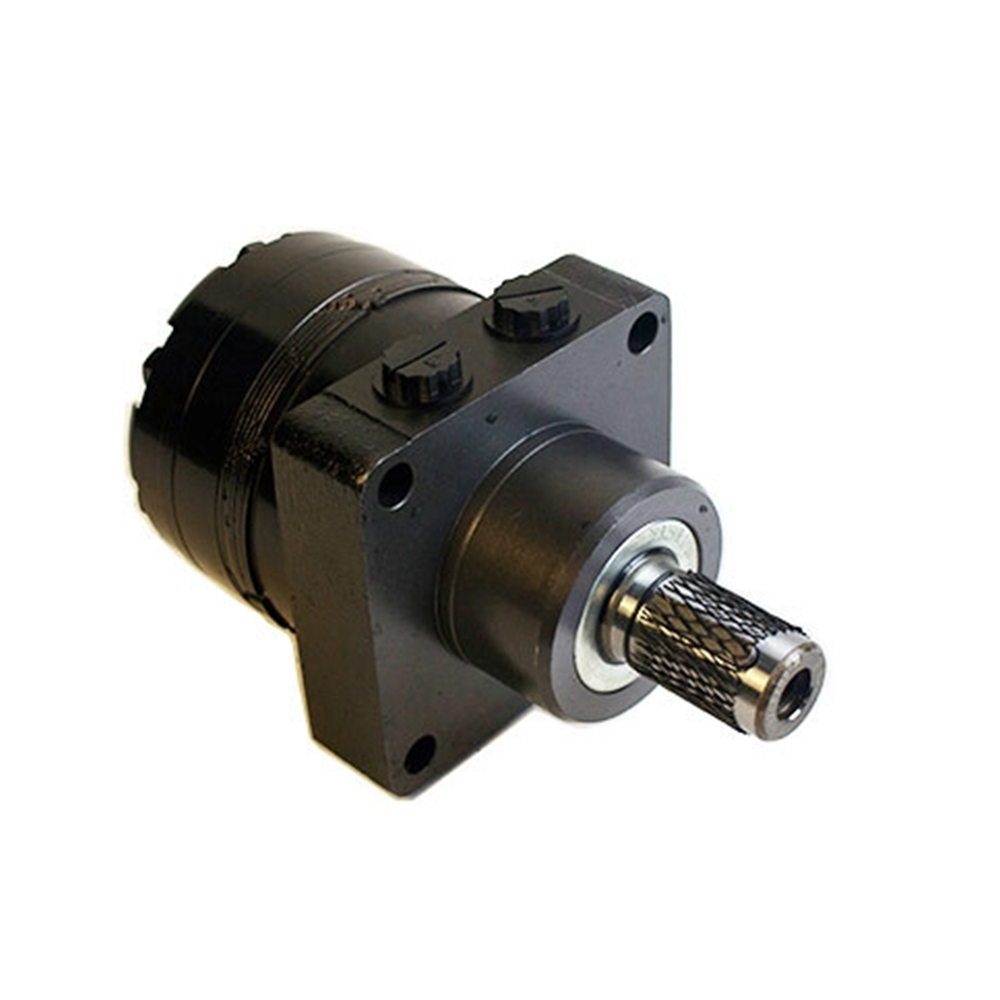

| Item: | Orbital Motor | OEM #: | BMER-2 |
|---|---|---|---|
| Manufacturer: | Xeriwell | Displacement: | 250ml/r |
| Mounting Flange: | Wheel Mounting Flange | Shaft Type: | 31.75mm Key Shaft |
| Highlight: | BMER-2 Wheel Hydraulic Motors,BMER-2 High Torque Hydraulic Motor,Combi Sweeper Wheel Hydraulic Motors | ||
Quick review:
This is Parker compatible motor with same form, fit and function
Apply to hydraulic bucket brush combi sweeper
Here is main specifications:
| Series: | Parker TG Motor |
| Shaft: | 31.75mm key shaft |
| Rotation: | Standard rotation |
| Displacement (cm3/rev): | 0240 |
| Mounting: | Wheel mounting |
| Geometric Displacement: | 240cm3/rev (214.5in3/rev) |
| Maximum Oil Flow (continuous / intermittent): | 75 lpm (20 gpm) / 90 lpm (24 gpm) |
| Max. Differential Pressure (continuous / intermittent): | 205 bar (3000 PSI) / 240 bar (3500 PSI) |
| Maximum Supply Pressure: | 276 bar (4000 PSI) |
| Maximum Torque - Continuous / Intermittent: | 990 Nm (8900lb-in) / 1140Nm (10250 lb-in) |
| Maximum Output(continuous / intermittent) | 16.5 KW /19kw |
| Type | BMER 125 | BMER 160 | BMER 200 | BMER 230 | BMER 250 | BMER 300 | BMER 350 | BMER 375 | BMER 475 | BMER 540 | BMER 750 | |
Geometric displacement (cm3 /rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N*m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
About Xeriwell:
Xeriwell Technology Co., Ltd. manufactures low-speed and high-torque hydraulic orbital motors. Importers, distributors and users use it's low-speed and high-torque hydraulic orbital motors as an affordable alternative to Torqmotor Parker (also known as Torqmotor Ross). The market feedback is positive. good. At present, the company have cooperated with Parker torqmotor dealers ( Ross Torqmotor dealers) and users from the United States, Canada, Australia, South Africa, UAE, Germany, Turkey, Mexico, Brazil, Chile and more regions, and provided them with numerous of professional hydraulic orbital motors, Significantly save costs while greatly increasing profit margins.
At present, the low-speed and high-torque hydraulic orbital motor that we have independently developed can be used interchangeably with the following models of torqmotor parker in form, fit, and function:
torqmotor parker tg series
torqmotor parker tf series
torqmotor parker te series
torqmotor parker tb series
torqmotor parker th series
torqmotor parker tj series
XeriWell is a dedicated provider of hydraulic products, specializing in hydraulic motors, pumps, components, and complete hydraulic systems. Positioned as a trusted supplier to the global market, we focus on delivering innovative and reliable hydraulic solutions that meet the highest standards. With a commitment to serving clients worldwide, XeriWell provides tailored solutions that address the unique hydraulic needs of any region, supporting industries with high-quality, dependable performance.
At XeriWell, we bring extensive expertise to the hydraulic industry, grounded in a deep understanding of industry standards and certifications that ensure top-quality products and services. Our team of specialized hydraulic engineers is well-versed in international standards, rigorously following certifications and guidelines to meet diverse market requirements. With an average of over 10 years of experience, our professionals have the knowledge to handle complex projects and offer fully customizable solutions.
XeriWell offers a comprehensive range of hydraulic products, including hydraulic motors, pumps, components, complete hydraulic systems, and various other hydraulic parts to meet diverse industry needs. In addition to our extensive product line, we provide tailored hydraulic system solutions, designed to meet each client's unique specifications. Our customization services save clients valuable time by eliminating the need to source multiple suppliers, delivering fully integrated and efficient solutions for their hydraulic applications.
XeriWell's core competitive advantage lies in our technical expertise. Unlike standard suppliers, we are a technology-driven company focused not only on sourcing high-quality hydraulic products but also on offering strategic guidance and expert recommendations to our clients. This technical strength, combined with our comprehensive product range and customization capabilities, allows us to deliver hydraulic solutions that truly add value and meet the specific needs of a global clientele.
At XeriWell, our vision is to be a leading global provider of innovative and reliable hydraulic solutions that drive industry progress and customer success. We are committed to excellence, integrity, and customer-centric service, valuing strong partnerships and continuous improvement. Our goal is to empower our clients by delivering high-quality, tailored solutions that meet evolving industry demands, fostering a future where hydraulic technology is seamlessly integrated, efficient, and sustainable for all.
At XeriWell, we offer a comprehensive range of hydraulic components, including hydraulic motors, pumps, accessories, valves and more, with options for both original and high-quality domestic alternatives. Backed by a robust supply chain, we are able to meet the vast majority of our clients'procurement needs, from standard models to non-standard and even discontinued products. Additionally, we provide fully customized services and solutions tailored to specific requirements, ensuring clients receive precisely the products and configurations needed for optimal performance. Our commitment to flexibility and reliability makes XeriWell a trusted partner for all hydraulic sourcing and customization needs.
