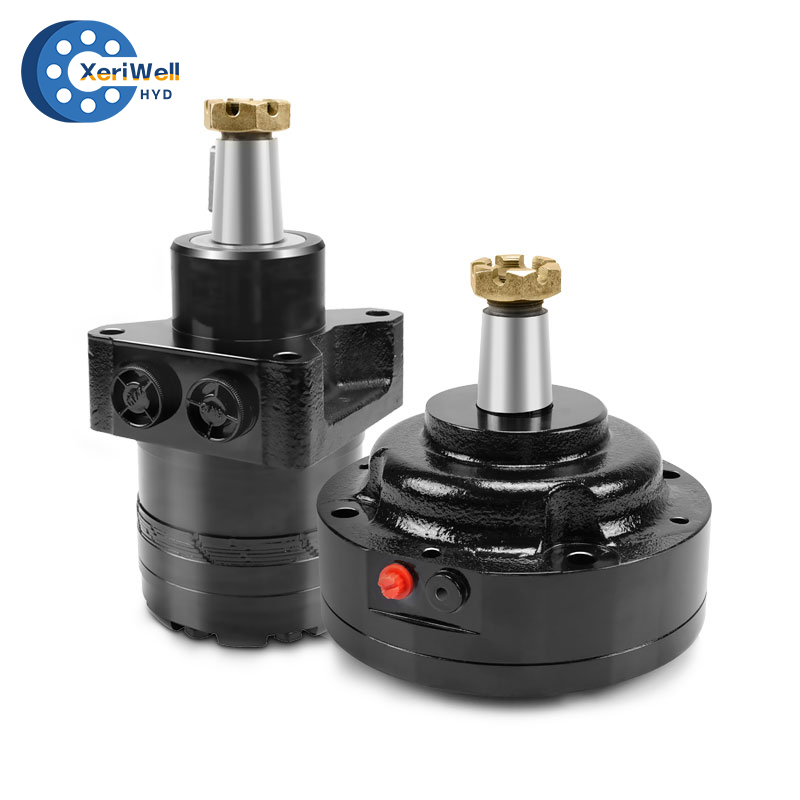

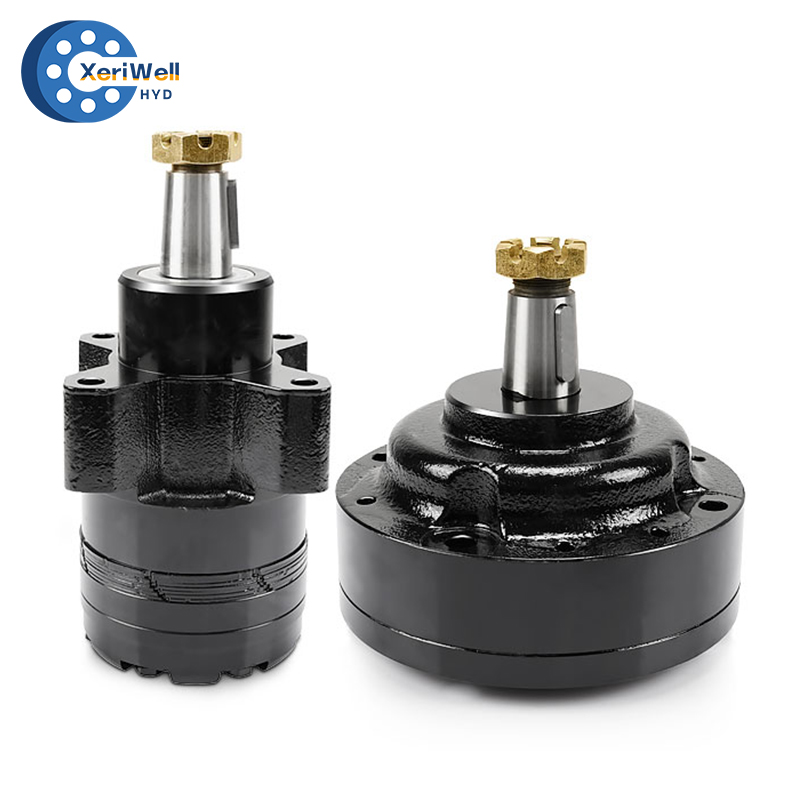

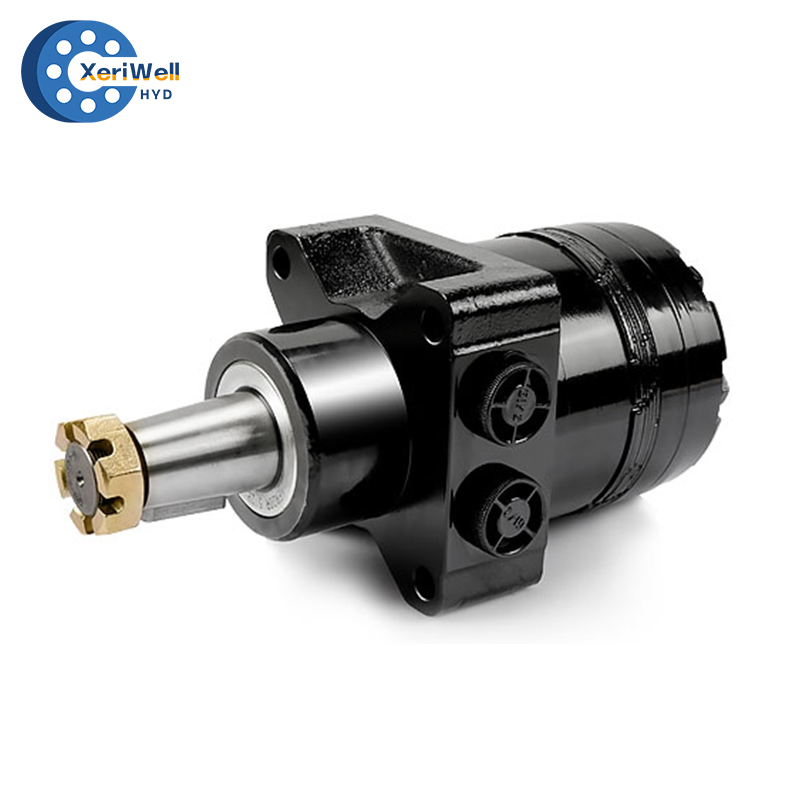

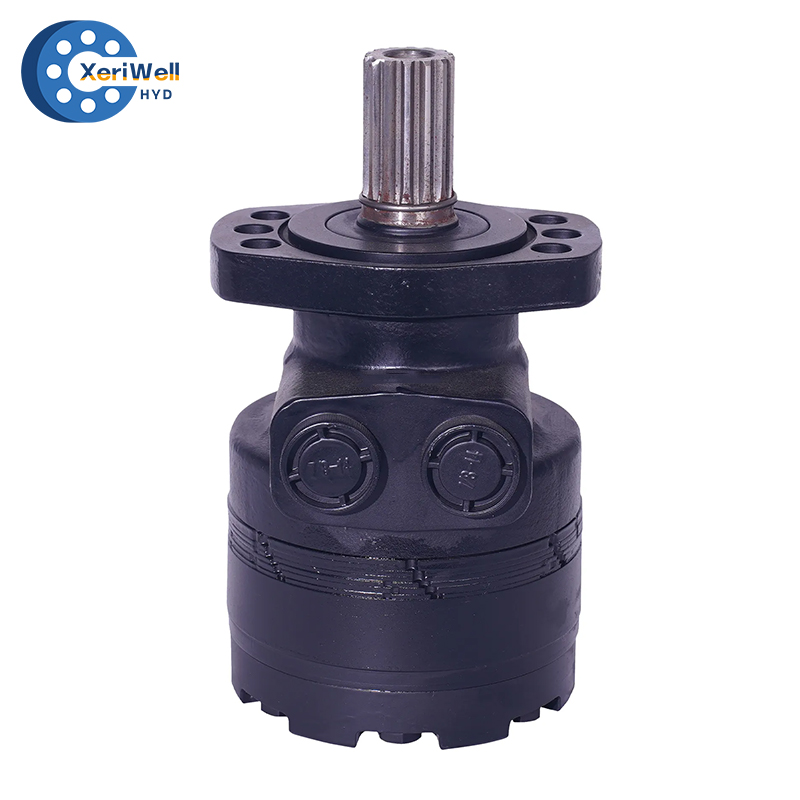

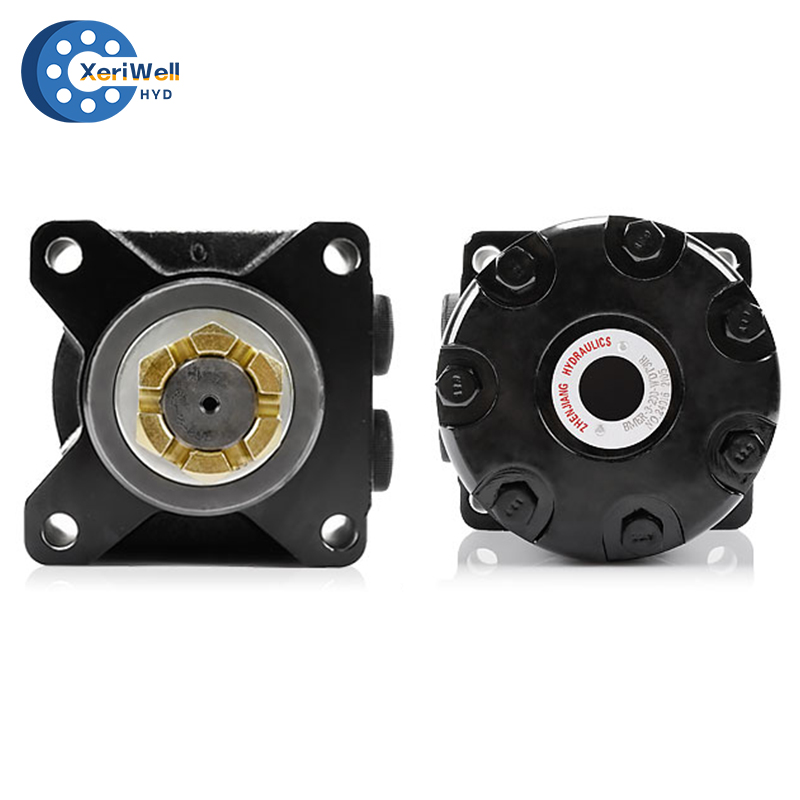

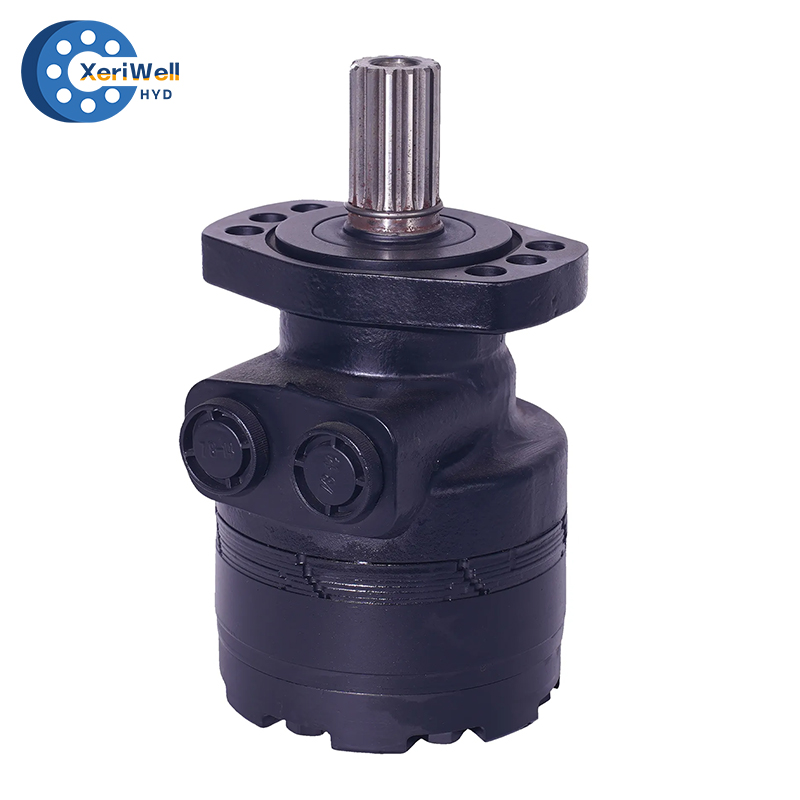

BMER-2/3
xeriwell or others

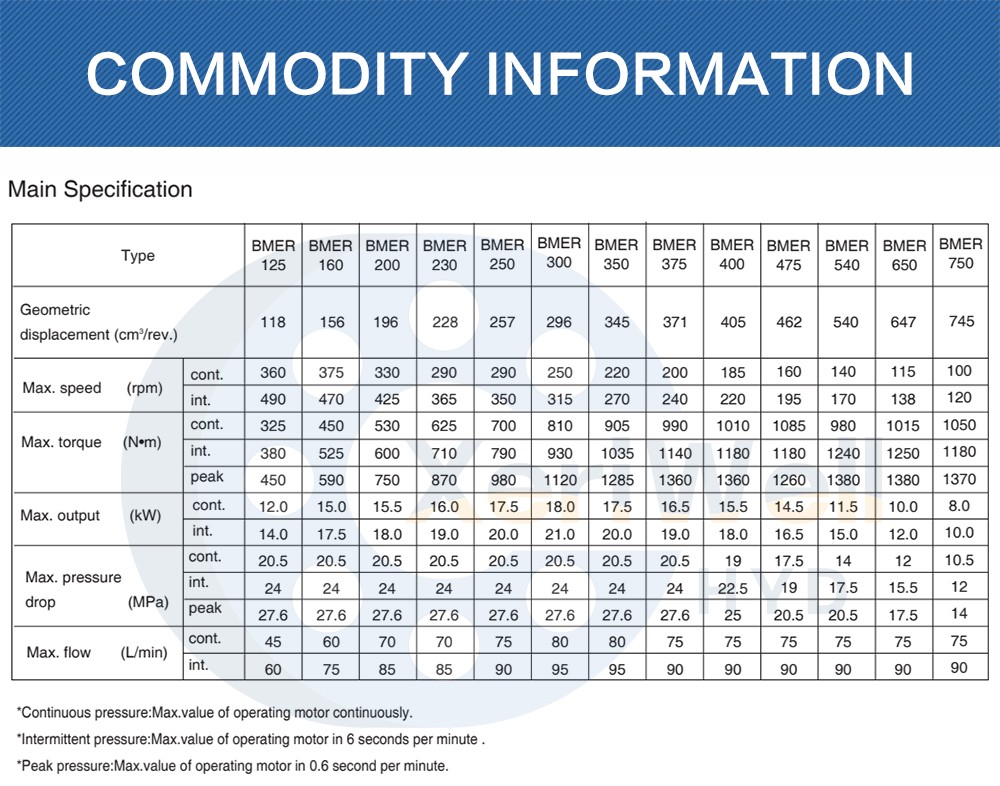

BMER-2 BMER-3 Orbital Hydraulic Motor technical data:
| Main Specification | ||||||||||||||
| Type | BMER 125 | BMER 160 | BMER 200 | BMER 230 | BMER 250 | BMER 300 | BMER 350 | BMER 375 | BMER 400 | BMER 475 | BMER 540 | BMER 650 | BMER 750 | |
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 405 | 462 | 540 | 647 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 185 | 160 | 140 | 115 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 220 | 195 | 170 | 138 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1010 | 1085 | 980 | 1015 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1180 | 1240 | 1250 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1360 | 1260 | 1380 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12 | 15 | 15.5 | 16 | 17.5 | 18 | 17.5 | 16.5 | 15.5 | 14.5 | 11.5 | 10 | 8 |
| int. | 14 | 17.5 | 18 | 19 | 20 | 21 | 20 | 19 | 18 | 16.5 | 15 | 12 | 10 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 19 | 17.5 | 14 | 12 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 22.5 | 19 | 17.5 | 15.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 25 | 20.5 | 20.5 | 17.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | 90 | 90 | |
| *Continuous pressure:Max.value of operating motor continuously. *Intermittent pressure:Max.value of operating motor in 6 seconds per minute . *Peak pressure:Max.value of operating motor in 0.6 second per minute. | ||||||||||||||
