BME2-50-H4S-H
Xeriwell or Others
| Product: | High Torque Hydraulic Motor | Model Number: | BME2-50-H4S-H |
|---|---|---|---|
| Manufacturer: | Xeriwell | Origion: | China |
| Highlight: | 50ml/r hydraulic motor,high pressure shaft seal hydraulic motor,BME2-50-H4S-H hydraulic motor | ||

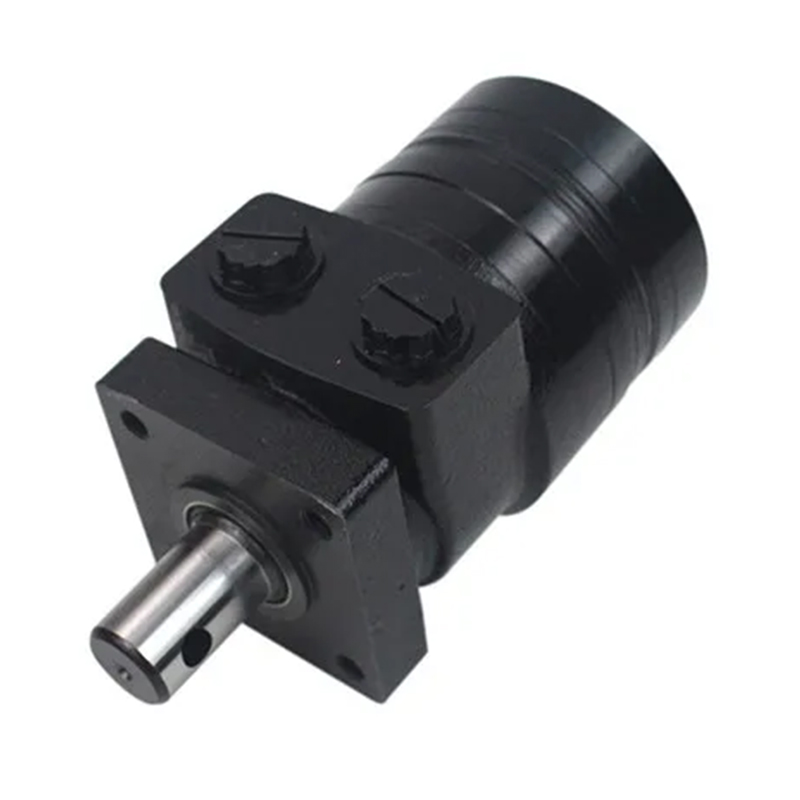

BME2-50-H4S-H hydraulic motor with high pressure shaft seal, 50ml/r key shaft with hole through
Quick review:
Model number: BME2-50-H4S-H
Displacement, 500 ml/r

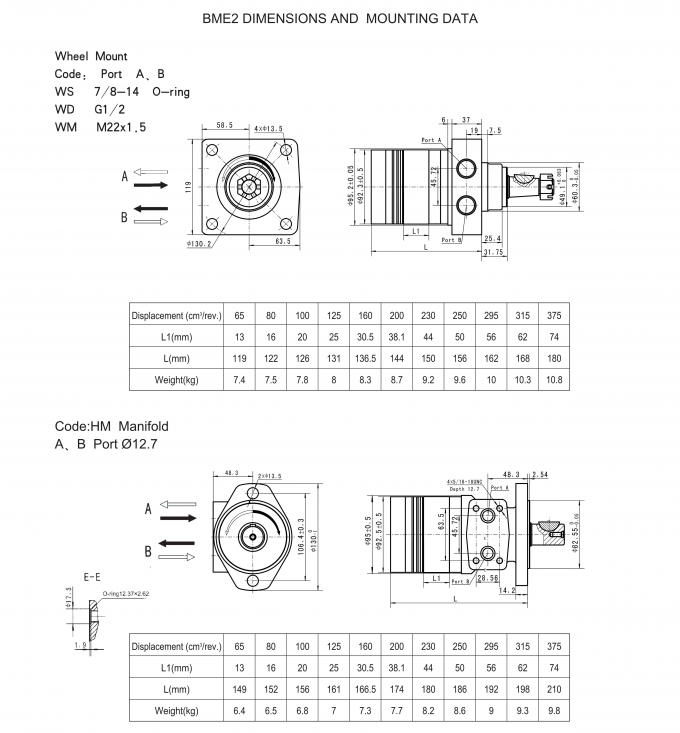

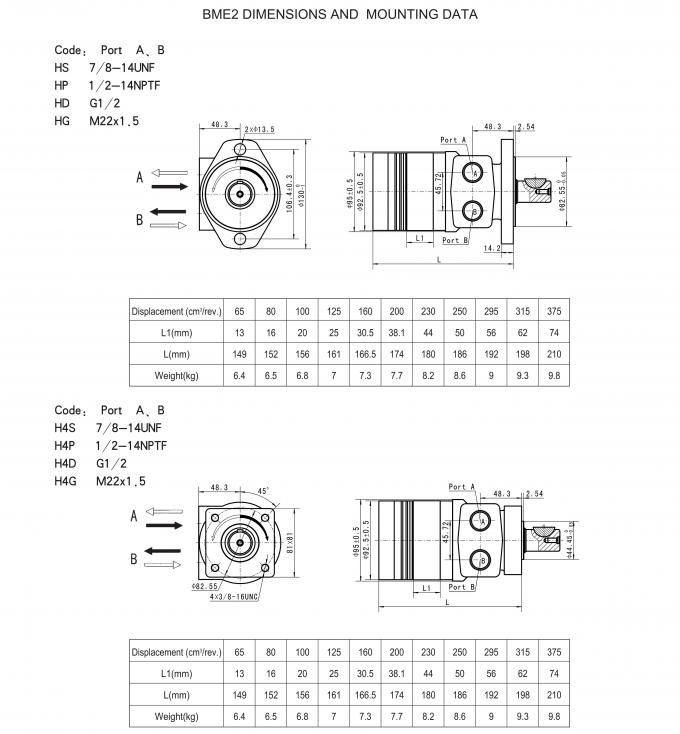

Flange, 4 bolt

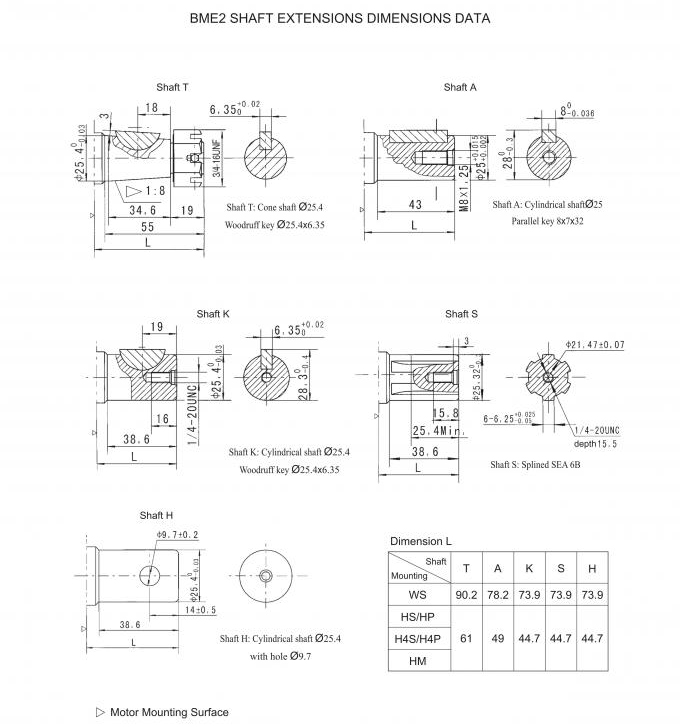

Shaft, key shaft with hole through
Rotation, CCW
Features, suit Parker TB, TC, TE

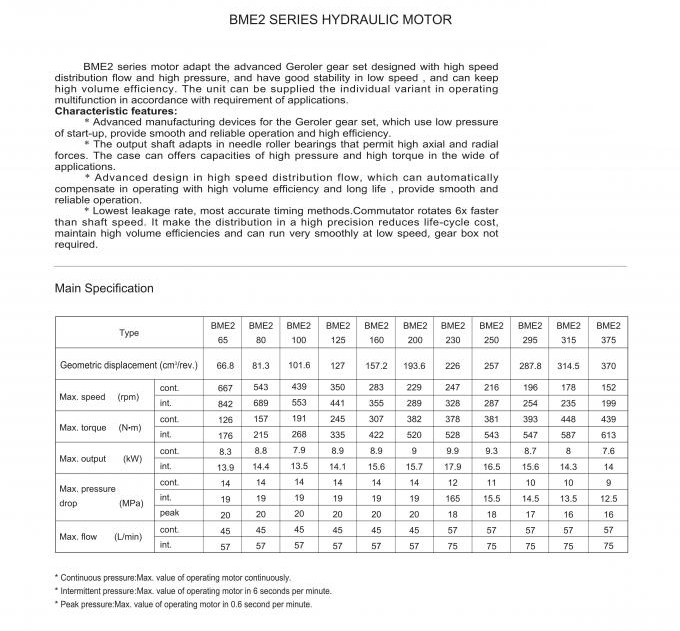

Here is it's technical details:
| Type | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | |
| 50 | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 | ||
| Geometric displacement (cm3 /rev.) | 66.8 | 81.3 | 101.6 | 127 | 157.2 | 193.6 | 226 | 257 | 287.8 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 667 | 543 | 439 | 350 | 283 | 229 | 247 | 216 | 196 | 178 | 152 |
| int. | 842 | 689 | 553 | 441 | 355 | 289 | 328 | 287 | 254 | 235 | 199 | |
| Max. torque (N•m) | cont. | 126 | 157 | 191 | 245 | 307 | 382 | 378 | 381 | 393 | 448 | 439 |
| int. | 176 | 215 | 268 | 335 | 422 | 520 | 528 | 543 | 547 | 587 | 613 | |
| Max. output (kW) | cont. | 8.3 | 8.8 | 7.9 | 8.9 | 8.9 | 9 | 9.9 | 9.3 | 8.7 | 8 | 7.6 |
| int. | 13.9 | 14.4 | 13.5 | 14.1 | 15.6 | 15.7 | 17.9 | 16.5 | 15.6 | 14.3 | 14 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 10 | 10 | 9 |
| int. | 19 | 19 | 19 | 19 | 19 | 19 | 165 | 15.5 | 14.5 | 13.5 | 12.5 | |
| peak | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 17 | 16 | 16 | |
| Max. flow (L/min) | cont. | 45 | 45 | 45 | 45 | 45 | 45 | 57 | 57 | 57 | 57 | 57 |
| int. | 57 | 57 | 57 | 57 | 57 | 57 | 75 | 75 | 75 | 75 | 75 | |
BME2 is a Parker TE, TB, TC replacement motor, it's interchangeable type, which is our specialty.
It has the same shape and mounting dimensions as the Parker motor, which perfectly matches the application of the Parker motor, and can be installed directly without any modification to the hydraulic system. The performance is the same as the Parker motor, the price is 3/5 or more cheaper than the Parker motor, and the delivery time is stable and fast. Models and specifications are abundant. Full line of high and low speed motors provide power ranging up to 613 N*m torque with speeds ranging from 152 rpm to 842 rpm. A complete range of sizes is offered in gear, gerotor operating configurations. Xeriwell hydraulic motors deliver excellent performance with high efficiency, true wear compensation and longer service life.
