| Quantity: | |
|---|---|
BME2-315-H4S-S-B
Xeriwell or Others
| Product: | Hydraulic Motor | Model No.: | BME2-315-H4S-S-B |
|---|---|---|---|
| Size: | 315 Ml/r | Flange: | 4 Bolt Square |
| Port: | 7/8-14 O-ring | Shaft: | 25.4mm SAE 6B |
| Rotation: | Standard | Color: | Black |
| Feature: | Replace Parker TE Series | More Size: | 65 - 375 Ml/r Available |
| Highlight: | Black Parker Hydraulic Motor,BME2-315-H4S-S-B Hydraulic Motor,315 ml/r Parker Hydraulic Motor | ||

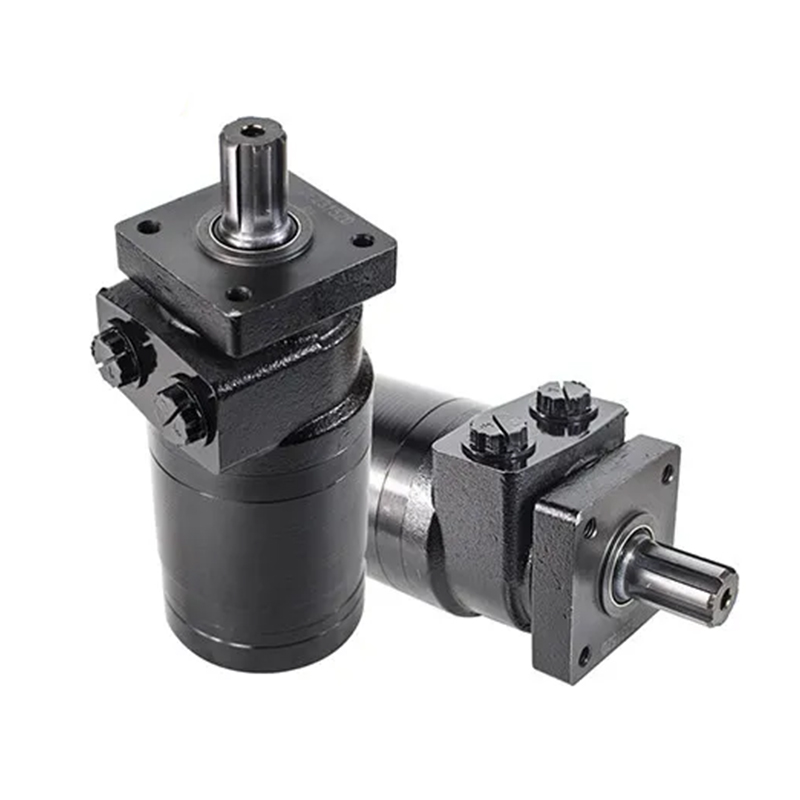

BME2-315-H4S-S-B Parker TE series replacement Hydraulic Motor
Quick review:
Xeriwell BME2 = Parker TE
| Product | Hydraulic Motor |
| Model No. | BME2-315-H4S-S-B |
| Size | 315 ml/r |
| Flange | 4 Bolt square |
| Port | 7/8-14 O-ring |
| Shaft | 25.4mm SAE 6B |
| Rotation | Standard |
| Color | Black |
| More size | 65 ml/r, 80 ml/r, 100 ml/r, 125ml/r 160 ml/r, 200 ml/r, 230 ml/r, 250 ml/r, 295 ml/r, 315 ml/r, 375 ml/r |
Specification:
| Type | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 | ||
| Geometric displacement (cm3 /rev.) | 66.8 | 81.3 | 101.6 | 127 | 157.2 | 193.6 | 226 | 257 | 287.8 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 667 | 543 | 439 | 350 | 283 | 229 | 247 | 216 | 196 | 178 | 152 |
| int. | 842 | 689 | 553 | 441 | 355 | 289 | 328 | 287 | 254 | 235 | 199 | |
| Max. torque (N•m) | cont. | 126 | 157 | 191 | 245 | 307 | 382 | 378 | 381 | 393 | 448 | 439 |
| int. | 176 | 215 | 268 | 335 | 422 | 520 | 528 | 543 | 547 | 587 | 613 | |
| Max. output (kW) | cont. | 8.3 | 8.8 | 7.9 | 8.9 | 8.9 | 9 | 9.9 | 9.3 | 8.7 | 8 | 7.6 |
| int. | 13.9 | 14.4 | 13.5 | 14.1 | 15.6 | 15.7 | 17.9 | 16.5 | 15.6 | 14.3 | 14 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 10 | 10 | 9 |
| int. | 19 | 19 | 19 | 19 | 19 | 19 | 165 | 15.5 | 14.5 | 13.5 | 12.5 | |
| peak | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 17 | 16 | 16 | |
| Max. flow (L/min) | cont. | 45 | 45 | 45 | 45 | 45 | 45 | 57 | 57 | 57 | 57 | 57 |
| int. | 57 | 57 | 57 | 57 | 57 | 57 | 75 | 75 | 75 | 75 | 75 | |

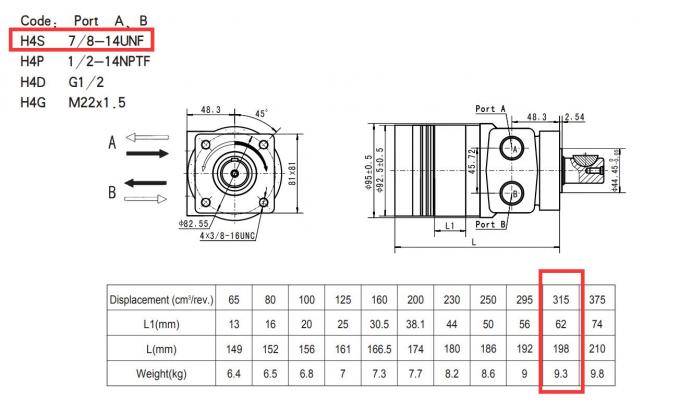

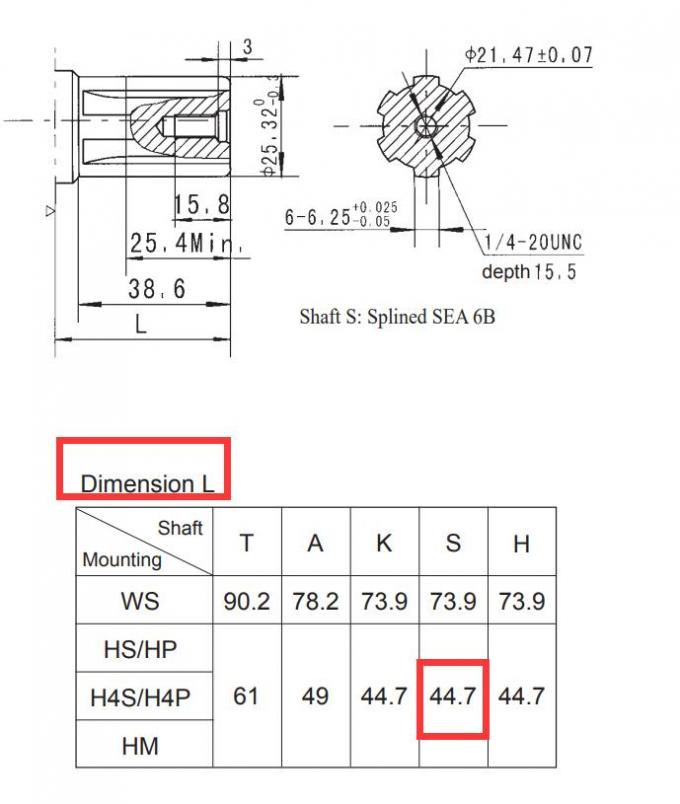

Dimention:
More BME2 series to match Parker TE series
More Parker replacement motor available:
TE
TB
TC
TF
TG
TJ
TK
More displacement, flange and shaft versions available:
