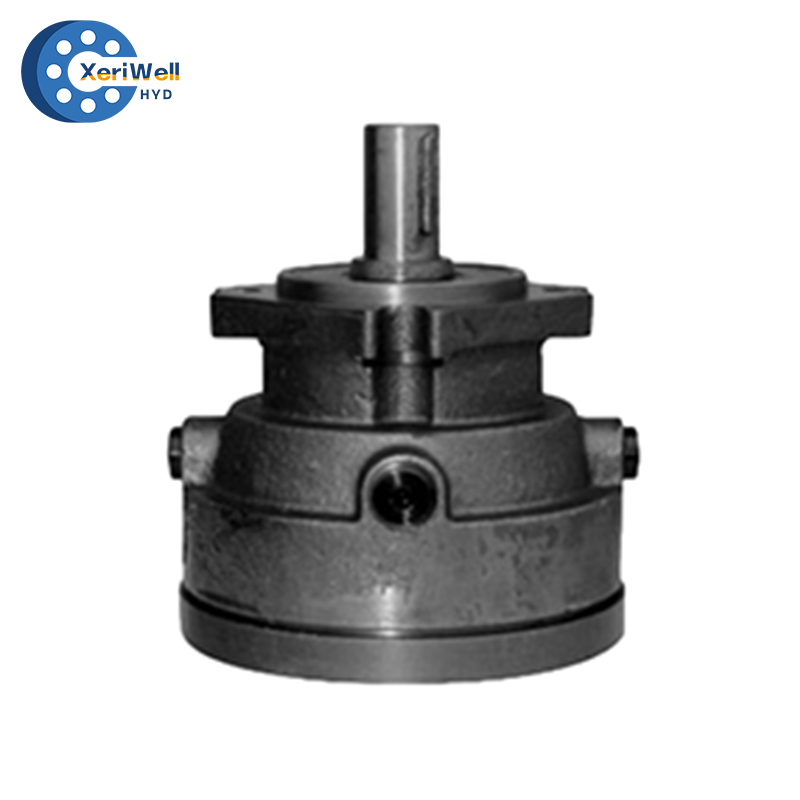

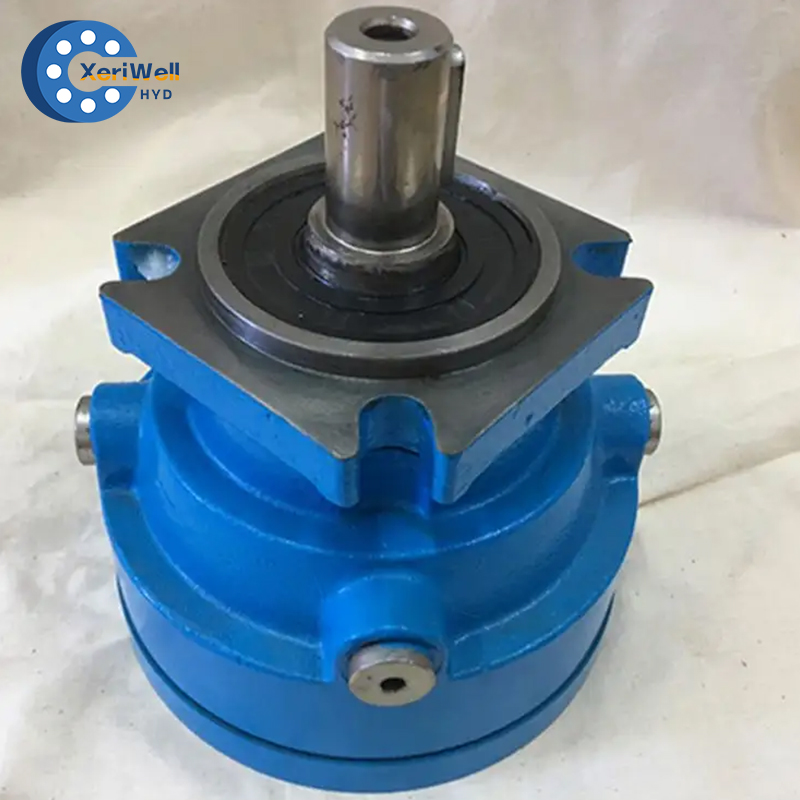

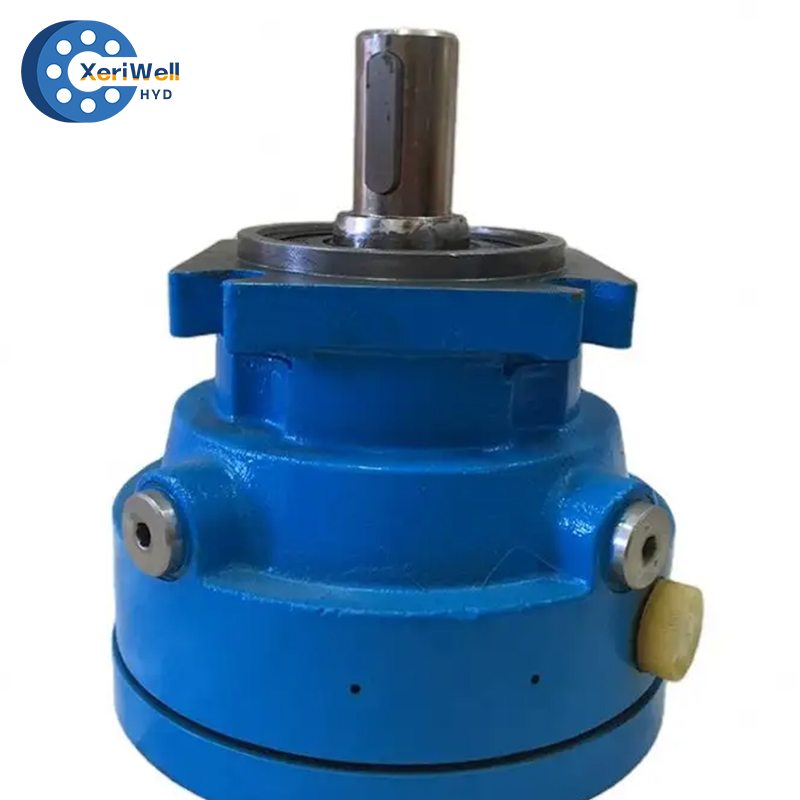

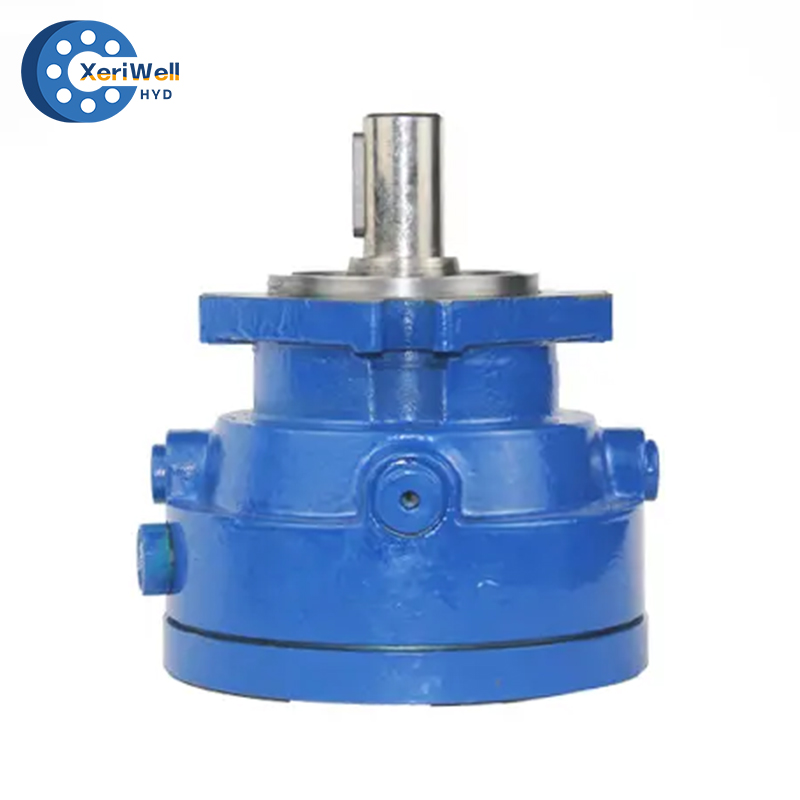

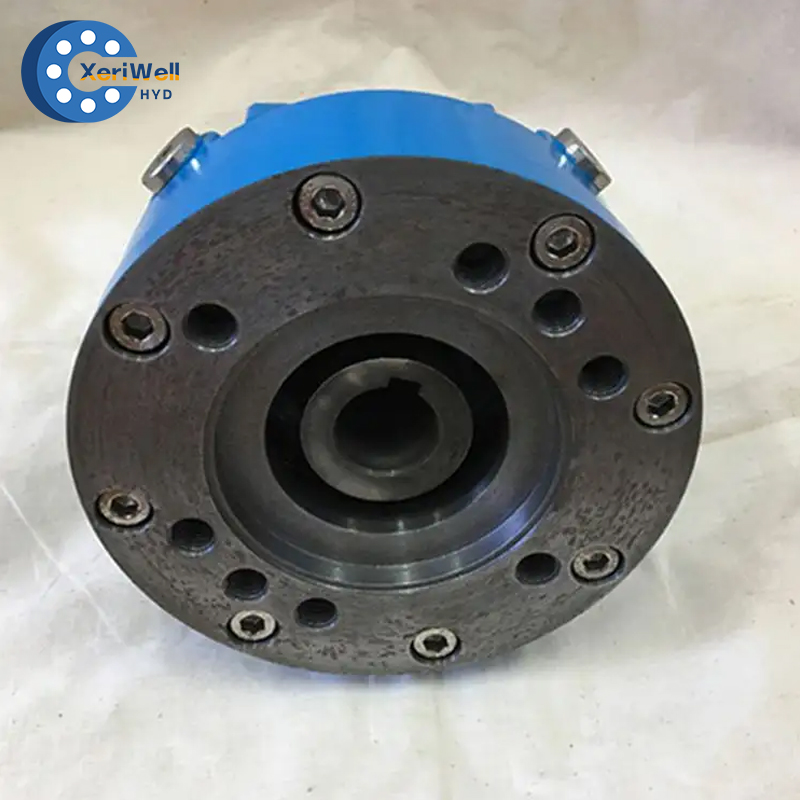

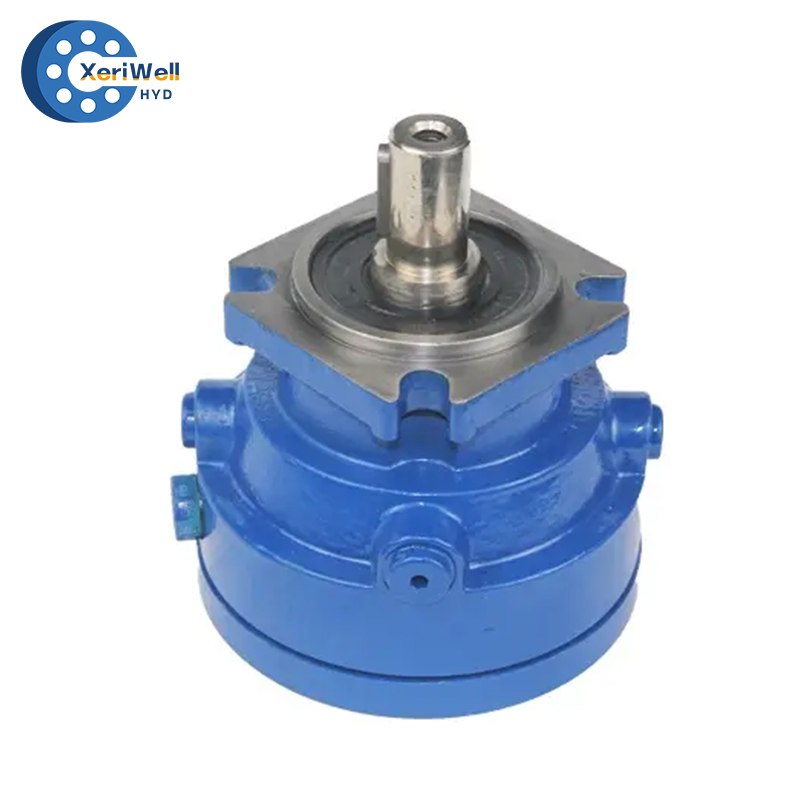

BK2 Orbital Hydraulic Motor Brake

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
BK2
Brand:
Xeriwell or Others

Product Description

BK2 Orbital Hydraulic Motor Brake

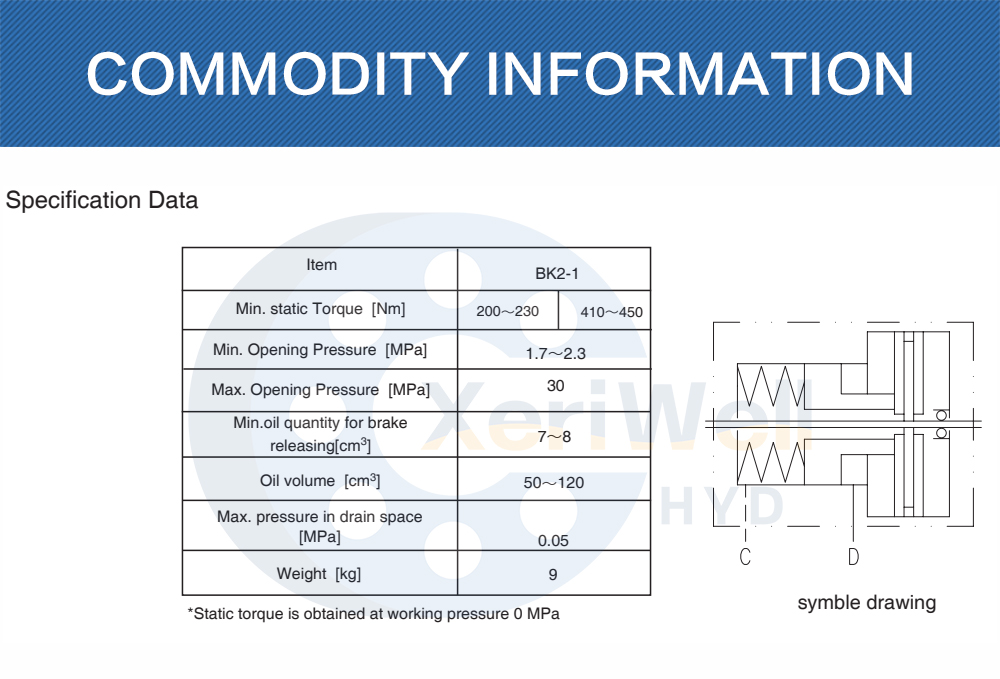

BK2-1 Orbital Hydraulic Motor Brake technical data:

hydraulic motor brake

Specification Data

Item	BK2-1
Min. static Torque [Nm]	200~230	410~450
Min. Opening Pressure [MPa]	1.7~2.3
Max. Opening Pressure [MPa]	30
Min.oil quantity for brake releasing[cm3]	7~8
Oil volume [cm3]	50~120
Max. pressure in drain space [MPa]	0.05
Weight [kg]	9
*Static torque is obtained at working pressure 0 MPa
