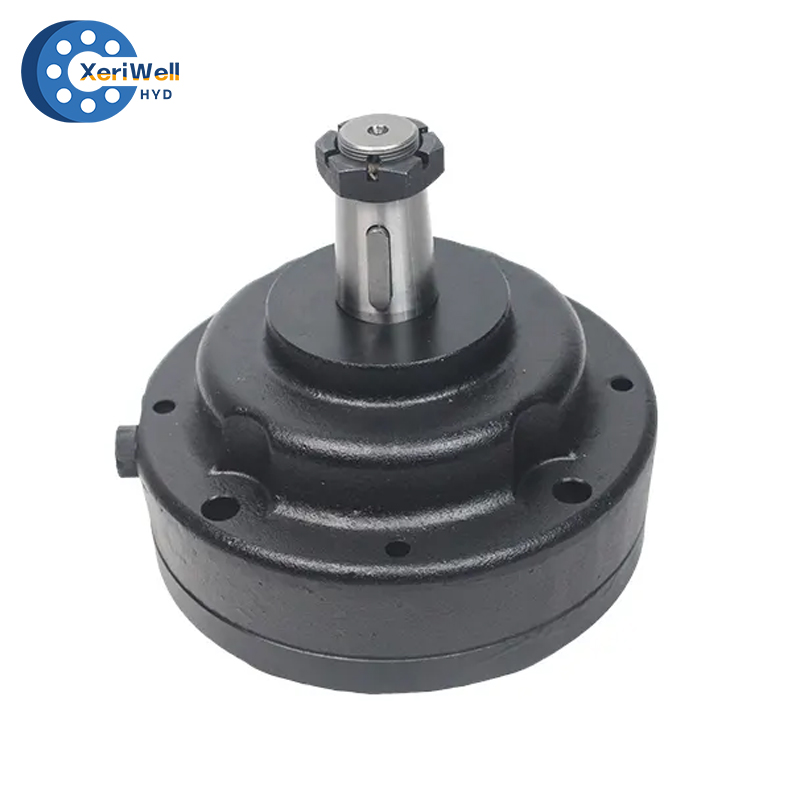

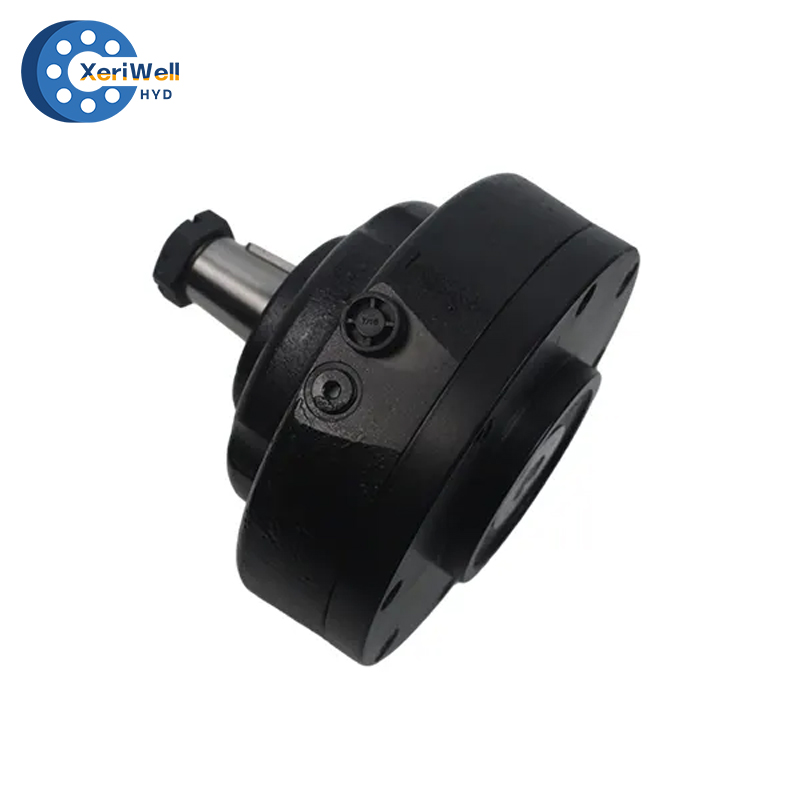

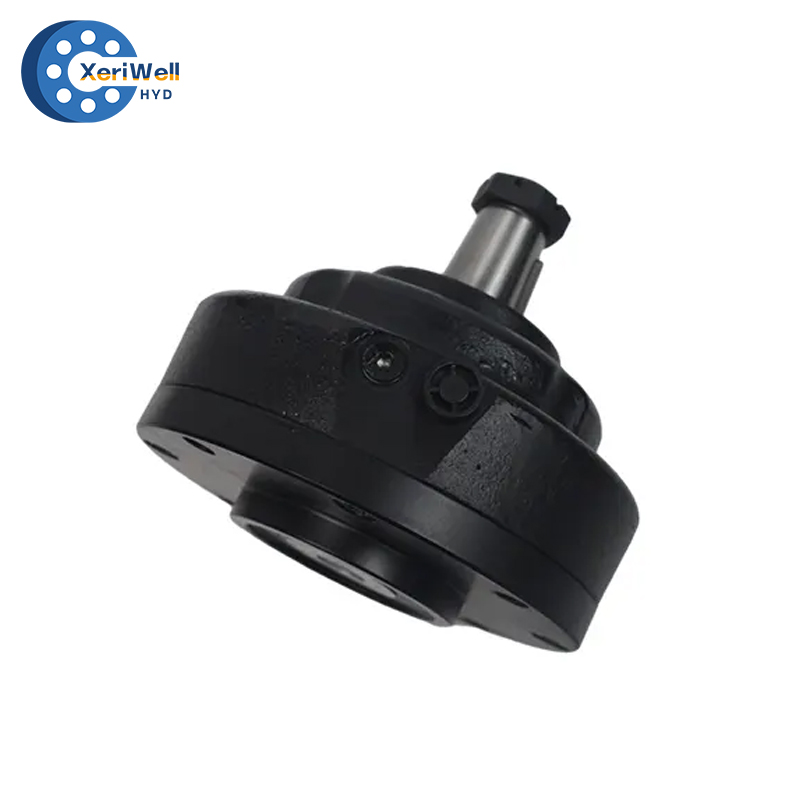

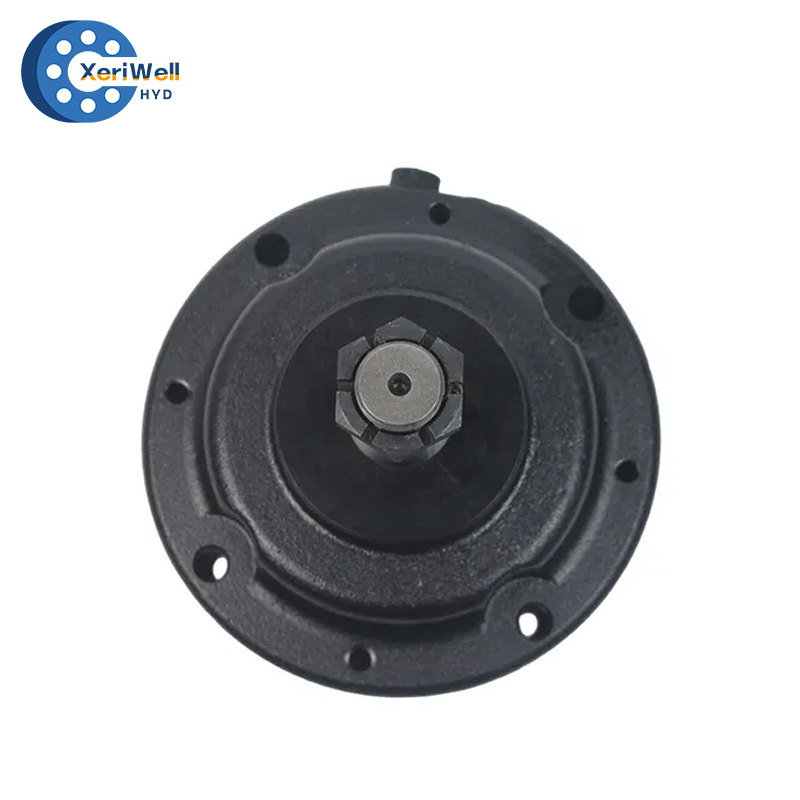

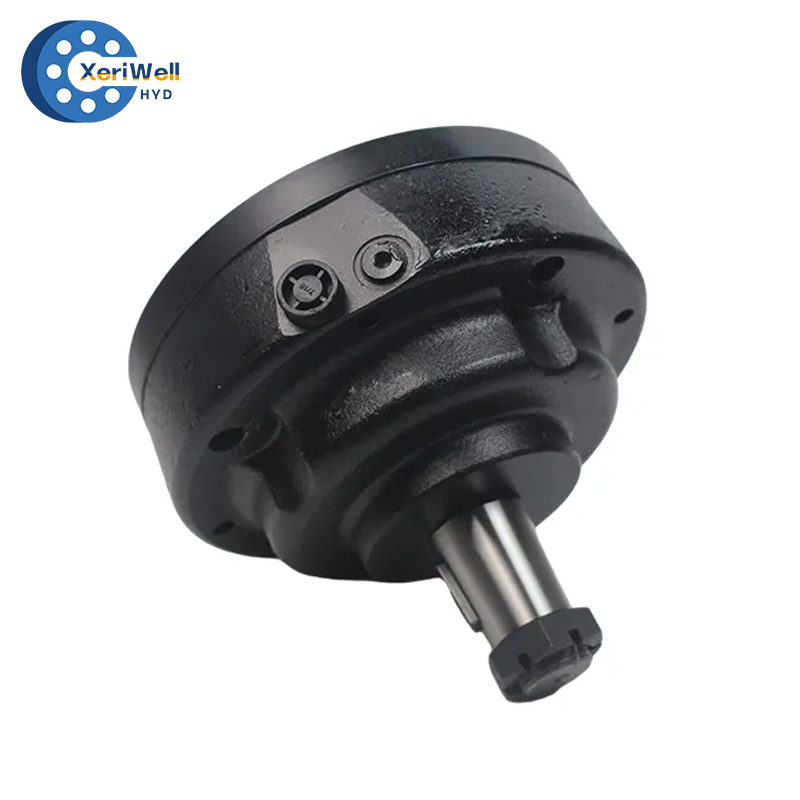

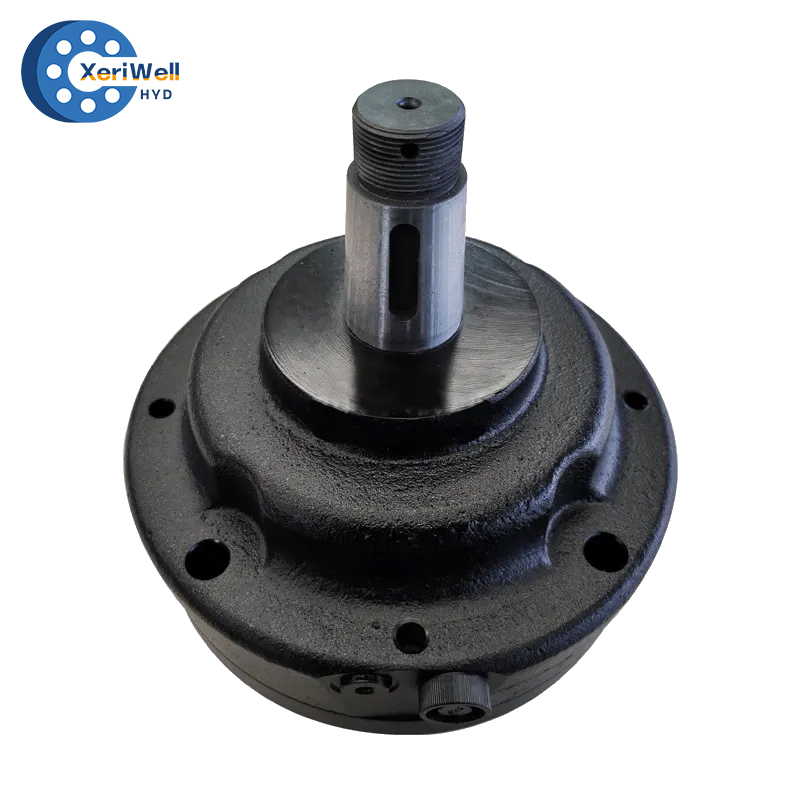

BK10 Orbital Hydraulic Motor Brake

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Type:	BK10-1 BK10-2
Spare parts:	On sale
Availability:





Inquire Add to Basket

Model:
BK10
Brand:
Xeriwell or Others

Product Description

BK10 Orbital Hydraulic Motor Brake

BK10-1 BK10-2 Brake technical data:

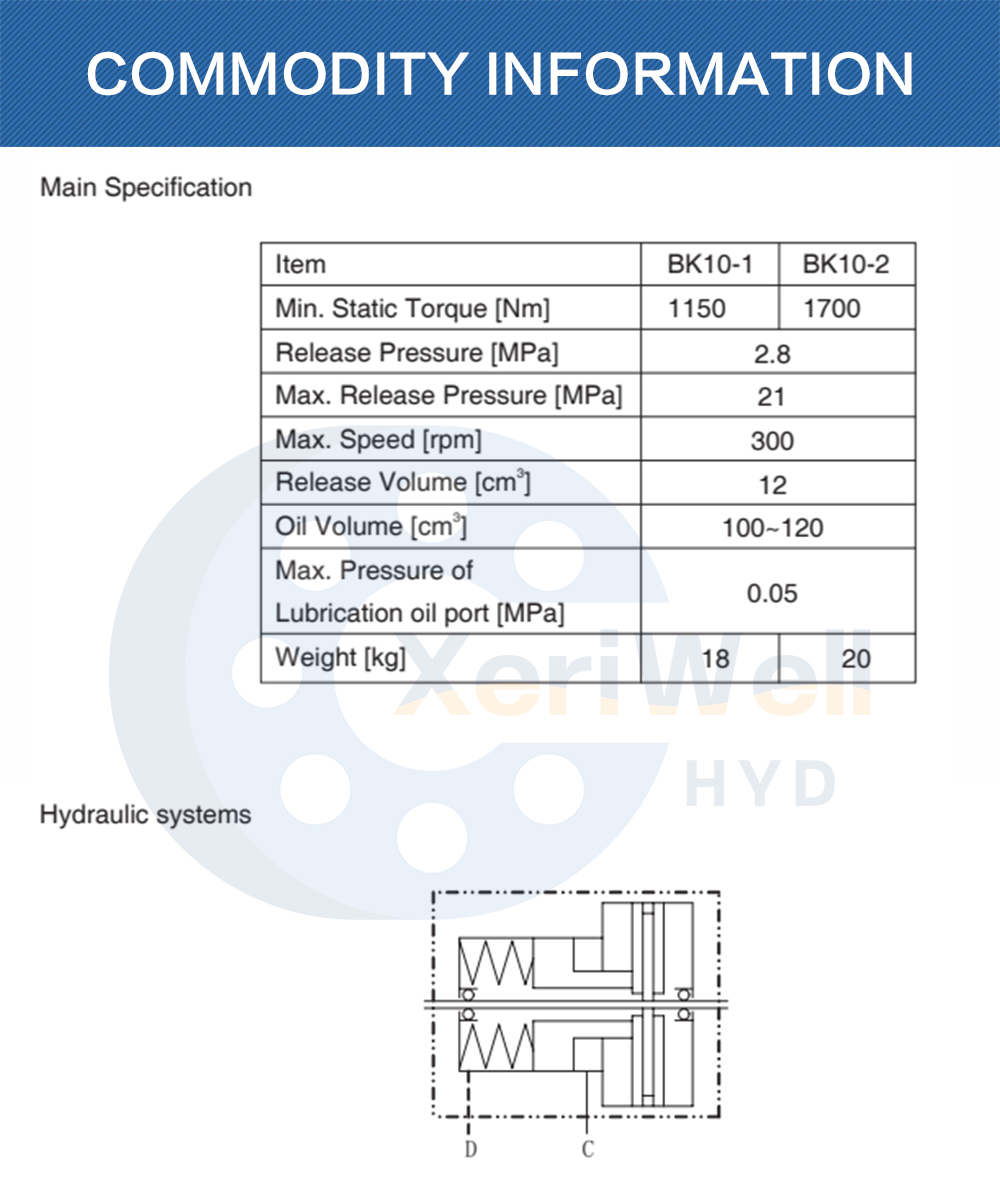

详情图

Main Specification

Item	BK10-1	BK10-2
Min. Static Torque [Nm]	1150	1700
Release Pressure [MPa]	2.8
Max. Release Pressure [MPa]	21
Max. Speed [rpm]	300
Release Volume [cm3]	12
Oil Volume [cm3]	100~120
Max. Pressure of Lubrication oil port [MPa]	0.05
Weight [kg]	18	20

Hydraulic
