| Item: | Orbital Hydraulic Motor | Model Number: | BMTS-500-E-S |
|---|---|---|---|
| Size: | 500 Ml/r | Manufacturer: | Xeriwell |
| Highlight: | OMTS 500 Agricultural harvester hydraulic motor,BMTS500 Agricultural harvester hydraulic motor,Agricultural Harvester Hydraulic Motor | ||
Welcome!
Hydraulic Motor manufacturer from China specializes in high performance hydraulic motors for harvesting, mixing, sweeping, lifting, conveying and various applications For example, agriculture, tranportation, engineering, construction, , forestry, etc.
Partners include OEM, hydraulic importers, hydraulic distributors
Please see product introduction below:

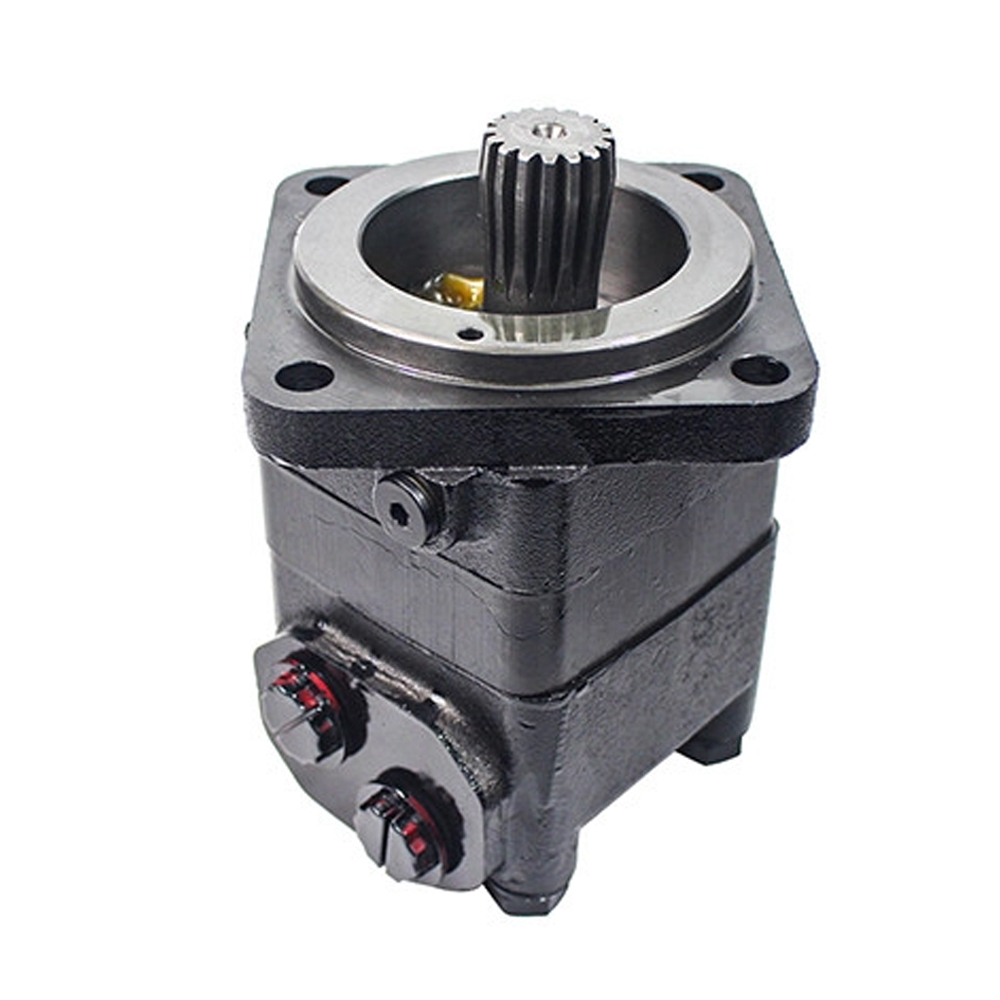

Agricultural harvester hydraulic motor, BMTS500 OMTS 500 short shaft bearingless model
Quick review:
BMTS-500-E-S
| displacement | 500ml/r |
| flange | 4-bolt |
| shaft | short shaft 12-DP12/24 |
| port | 1-1/16-12 UN O-ring |
Main Specifications:
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | |
| Geometric displacement (cm3 /rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (MPa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

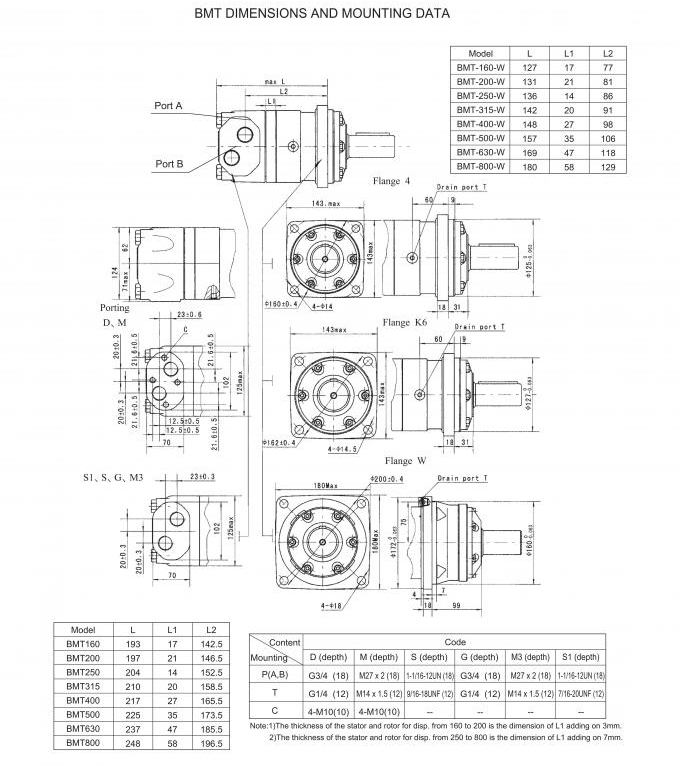

| Model | L | L1 | L2 |
| BMT-160-W | 127 | 17 | 77 |
| BMT-200-W | 131 | 21 | 81 |
| BMT-250-W | 136 | 14 | 86 |
| BMT-315-W | 142 | 20 | 91 |
| BMT-400-W | 148 | 27 | 98 |
| BMT-500-W | 157 | 35 | 106 |
| BMT-630-W | 169 | 47 | 118 |
| BMT-800-W | 180 | 58 | 129 |
| Model | L | L1 | L2 |
| BMT160 | 193 | 17 | 142.5 |
| BMT200 | 197 | 21 | 146.5 |
| BMT250 | 204 | 14 | 152.5 |
| BMT315 | 210 | 20 | 158.5 |
| BMT400 | 217 | 27 | 165.5 |
| BMT500 | 225 | 35 | 173.5 |
| BMT630 | 237 | 47 | 185.5 |
| BMT800 | 248 | 58 | 196.5 |
| Mounting Content | Code | |||||
| D (depth) | M (depth) | S (depth) | G (depth) | M3 (depth) | S1 (depth) | |
| P(A,B) | G3/4（18） | M27 × 2 (18) | 1-11/16-12UN (18) | G3/4（18） | M27 × 2 (18) | 1-11/16-12UN (18) |
| T | G1/4（12） | M14 × 1.5 (12) | 9/16-18UNF (12) | G1/4（12） | M14 × 1.5 (12) | 7/16-20UNF (12) |
| C | 4-M10(10) | 4-M10(10) | -- | -- | -- | -- |
| Note:1)The thickness of the stator and rotor for disp. from 160 to 200 is the dimension of L1 adding on 3mm. 2)The thickness of the stator and rotor for disp. from 250 to 800 is the dimension of L1 adding on 7mm. | ||||||
