| Quantity: | |
|---|---|
109-1100
Xeriwell or Others
| Item: | Hydraulic Motor | Type: | Disc Valve |
|---|---|---|---|
| OEM #: | 109-1100 | Aftermarket #: | 109-1100 |
| Series: | 4000 | Flange: | 4 BOLT SAE B MOUNT |
| Displacement: | 6.7 IN3 | Max GPM: | 20 |
| Highlight: | Hydraulic Disc Valve Motor,20 gpm Hydraulic Motor | ||

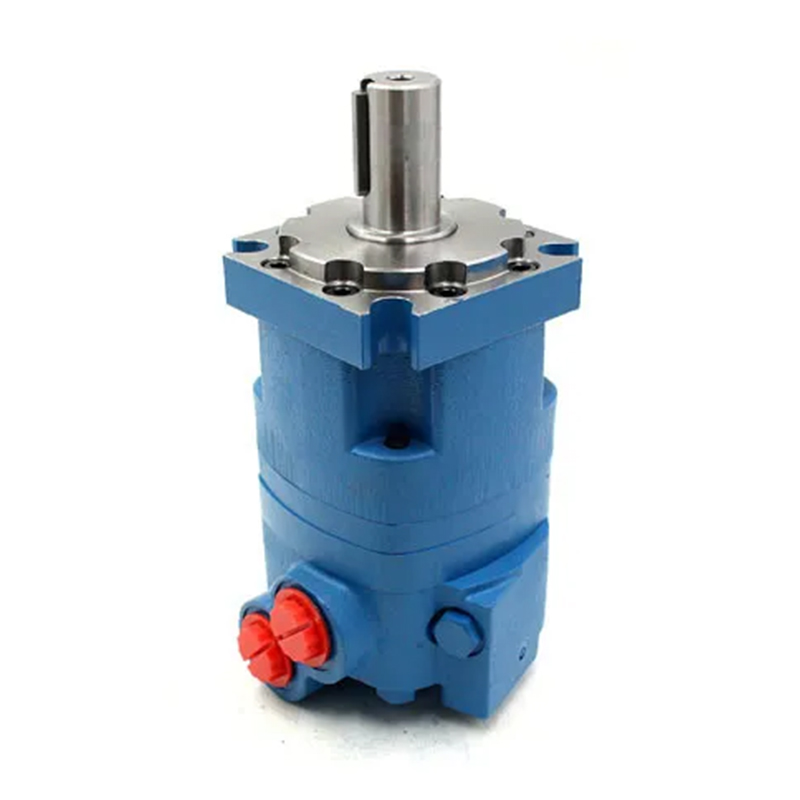

New Aftermarket Char-lynn (Eaton) 109-1100-006 4000 series standard flange
Overview:
This is a replacement for Eaton 109-1100
Form, fit, and function the same, at a substantial savings
All units are double tested when shipment, warranty service is also provided based on following conditions:
12 months from the date of commission OR
13 months from the date of delivery to the purchaser OR
1000 operating hours
Specifications:
| Char-lynn Number | Cubic Inch Disp. | Shaft | Keyway | Max GPM | Max RPM | Max PSI | Torque (lb-in) at Max PSI | Rotation |
| 109-1100 | 6.7 | 1-1/4" | 5/16" | 20 | 697 | 3000 | 2850 | Left and Right |
More Eaton aftermarket motor available
| EATON | 104-3358-006 |
| EATON | 104-1029-006 |
| EATON | 104-1035-006 |
| EATON | 104-1422-006 |
| EATON | 104-3001-006 |
| EATON | 104-3130-006 |
| EATON | 105-1308-006 |
| EATON | 105-1411-006 |
| EATON | 101-1028 |
| EATON | 101-1030 |
| EATON | 101-1032 |
| EATON | 104-1027 |
| EATON | 104-1028 |
| EATON | 104-1228 |
| EATON | 104-1068 |
| EATON | 104-1015 |
| EATON | 104-1017 |
| EATON | 112-1068 |
| EATON | 119-1030 |
| EATON | 119-1031 |
Eaton similar type motors are available we belows:
J (129-)
H (101-)
S (103-)
T (158-)
W (162-)
2000 (104-, 105-, 106-, 193-)
4000 (109-, 110-, 111-)
6000 (112-, 113-, 114-)
10000 (119-)
Most complete range of Eaton 2000 , 4000, 6000, 10000 series aftermarket motors
Applications: Mowing, snow removal, sprayer, trencher and wood products
sometimes Item is in stock, sometimes not, when there is no a stock it needs 25 days to produce new
